Description
Tektronix Type 53B Wide-Band Calibrated Preamp Plug-In Unit Oscilloscope

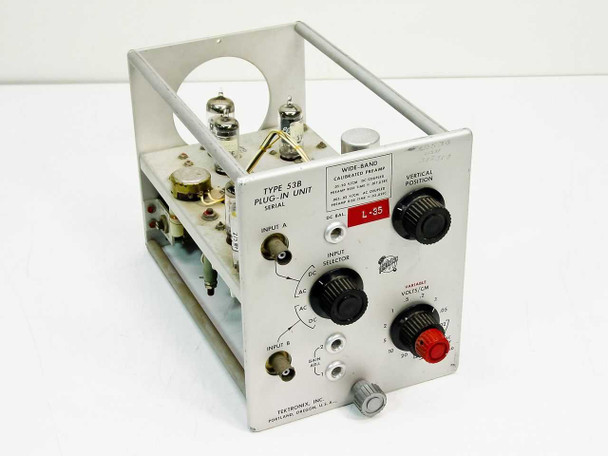

The Tektronix Type 53B is a wide-band calibrated preamplifier designed as a plug-in unit for Tektronix 500-series oscilloscopes. It provides dual differential inputs (Input A and Input B), an AC/DC Input Selector switch, a calibrated Variable Volts/cm sensitivity control, a DC Balance adjustment, and a Vertical Position knob — giving the user fine control over vertical deflection sensitivity and signal coupling directly at the plug-in stage. The unit is a vacuum-tube design, consistent with Tektronix's 500-series instrument family.
Specifications & What's Included
- Manufacturer: Tektronix, Inc. — Portland, Oregon, U.S.A.
- Model: Type 53B Plug-In Unit
- Type: Wide-Band Calibrated Preamplifier
- Inputs: Dual — Input A and Input B (BNC connectors)
- Coupling: AC and DC selectable via Input Selector switch
- Sensitivity: Variable Volts/cm — calibrated range visible on front panel dial (0.005 to 20 V/cm, with AC-only position)
- Front panel controls: DC BAL (DC Balance), Input Selector, Variable Volts/cm, Vertical Position

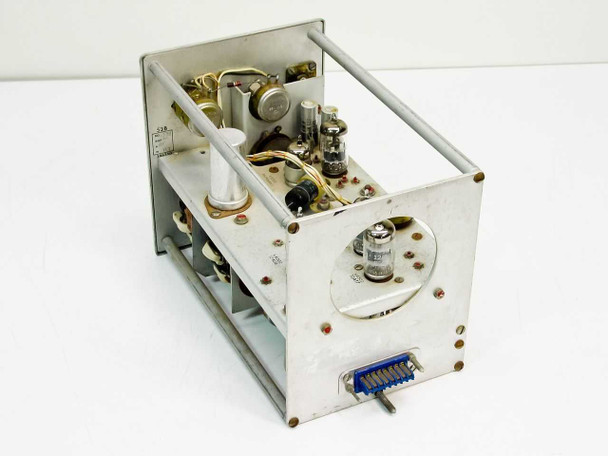

- Internal construction: Vacuum-tube design; tubes present and visible internally
- Rear connector: Amphenol multi-pin edge connector for oscilloscope mainframe interface
- Form factor: Plug-in module for Tektronix 500-series oscilloscope mainframe
- Country of manufacture: United States
- Included: Plug-in unit only — no cables, manual, or oscilloscope mainframe included
Applications
The Tektronix Type 53B was designed for use with Tektronix 500-series oscilloscope mainframes — a highly regarded family of modular tube-era instruments produced by Tektronix from the late 1940s through the 1960s. The 500-series platform used interchangeable plug-in units to extend the oscilloscope's capabilities, and the Type 53B served as a wide-band vertical preamplifier, allowing the mainframe to handle low-level or differential signals with calibrated sensitivity. This type of plug-in is sought today by collectors and technicians maintaining vintage Tektronix equipment, as well as by hobbyists restoring or operating 500-series mainframes. The dual-input differential configuration and AC/DC coupling flexibility made the 53B suitable for a wide range of analog signal measurement tasks in electronics labs and research environments of its era.
This Tektronix Type 53B Wide-Band Calibrated Preamp plug-in unit has been visually inspected and appears to be in good used condition. The chassis and front panel show normal age-related wear consistent with vintage lab equipment — light surface soiling, minor scuffs on the painted aluminum housing, and some oxidation on the rear Amphenol connector contacts. The vacuum tubes are present inside. This unit was pulled from a working environment where it was previously in use; it has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tektronix |
Model: |
Type 53B |
MPN: |
Type 53B |
Type: |
Wide-Band Calibrated Preamplifier Plug-In Unit |
SKU: |
37028 |
Compatible With: |
Tektronix 500-series oscilloscopes |
Form Factor: |
Plug-In Module |
Number of Inputs: |
2 (Input A, Input B) |
Input Selector: |
AC/DC switchable per input |
Sensitivity: |
Variable Volts/cm (calibrated) |
Coupling: |
AC and DC |
Connector Type: |
BNC inputs; Amphenol multi-pin edge connector |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Plug-in unit only — no cables or oscilloscope mainframe included. |
Condition Notes: |
This Tektronix Type 53B Wide-Band Calibrated Preamp shows normal age-related wear — light soiling, minor scuffs on the chassis, and oxidation on the rear Amphenol connector. Tubes are present. |
