Description
Tektronix TSG-170D Digital Composite Generator NTSC 1U Rackmount 60W 48-66Hz
The TSG-170D is a digital composite generator designed for NTSC television signal generation and testing. It produces both digital and analog outputs for broadcast and telecom applications requiring composite video signal standards.
Specifications & What's Included
- Model: TSG-170D
- Signal Standard: NTSC
- Output Type: Digital and Analog
- Form Factor: 1U Rackmount (19-inch)
- Analog Audio Output: XLR connector (rear panel)
- Power Requirements: 100–240V AC, 48–66Hz, 60W maximum
- Unit only; no accessories included
Applications
The TSG-170D was used in broadcast, cable television, and telecommunications environments for generating and testing NTSC composite video signals. This generator type is applied in system alignment, signal verification, and equipment maintenance workflows where standard test signals are required. It integrates into rack-mounted monitoring and test setups typical of telecom and broadcast facilities.

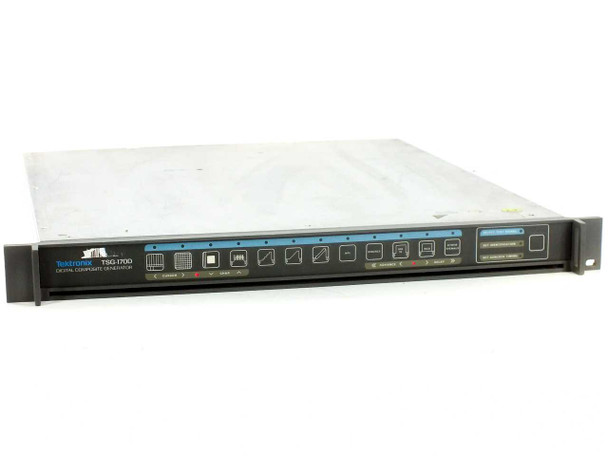

This Tektronix TSG-170D Digital Composite Generator has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The front panel shows light scuffing and general surface wear consistent with rack use. The rear panel and chassis show similar light marks and some scratching, also typical of field use. The unit ships as shown. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tektronix |
Model: |
TSG-170D |
MPN: |
TSG-170D |
SKU: |
52596 |
Type: |
Digital Composite Generator |
Signal Standard: |
NTSC |
Output Type: |
Digital and Analog |
Analog Audio Output: |
Yes — XLR connector (rear panel) |
Form Factor: |
1U Rackmount (19-inch) |
Power Requirements: |
100–240V AC, 48–66Hz, 60W Max |
Max Power Consumption: |
60W |
Input Frequency Range: |
48–66Hz |
Application: |
NTSC Composite Digital Television Test & Maintenance |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only; pulled from a working environment. No accessories included. |
Condition Notes: |
Tektronix TSG-170D Digital Composite Generator, used, inspected, good condition. Pulled from a working environment where it was in use and functional. Normal surface wear. Unit only. Please contact us with any questions. |
