Tektronix TLA704 Logic Analyzer Color Portable Mainframe App SW V3.1

Tektronix TLA704 Logic Analyzer Color Portable Mainframe App SW V3.1

The Tektronix TLA704 is a color portable logic analyzer mainframe from Tektronix's TLA700 series — a modular, high-performance platform designed for complex digital system debug and verification. The mainframe houses the display, controller, storage, and power infrastructure, while TLA7-series modules (sold separately) slot in to provide the actual acquisition channels. This unit runs Application Software V3.1 under a Windows-based GUI visible on the built-in color LCD, and supports TLA7Nx and TLA7Px series acquisition modules as well as TLA711 configurations via the TLA 7UP Option 01 Mainframe Upgrade Kit.

Specifications & What's Included

• Manufacturer: Tektronix
• Model: TLA704 (Logic Analyzer Color Portable Mainframe)
• Series: TLA700
• Application Software: V3.1 (Windows-based TLA GUI)
• Option: STD — 16Mb DRAM / 1.4Gb HDD
• Option 1S (reference): 32Mb DRAM / 2.0Gb HDD
• Compatible modules: TLA7Nx and TLA7Px series acquisition modules
• Also supports: TLA711; TLA 7UP Option 01 Mainframe Upgrade Kit compatible
• Display: Built-in color LCD with full front-panel GUI
• Front panel: Rotary control knobs, dedicated keypad/button array

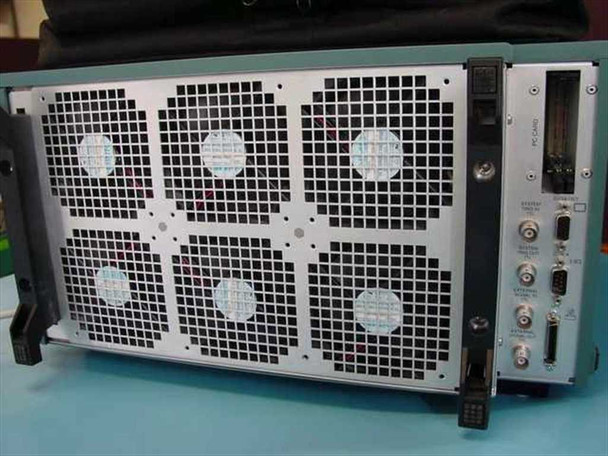

• Rear I/O: PC Card slot, dual DB9 connectors, BNC connectors, ventilation grilles (2×3 fan array)
• Form factor: Portable benchtop mainframe with integrated carrying handle
• Manufactured in Beaverton, Oregon, USA
• US Patent: 4,476,432
• What's included: Mainframe chassis only — no logic analyzer modules, probes, or cables included

Applications

The TLA700 series was Tektronix's flagship modular logic analyzer platform of the late 1990s and early 2000s, used extensively in embedded systems development, digital hardware verification, and high-speed bus debugging. The TLA704 mainframe serves as the controller and display hub for a modular acquisition system: engineers insert TLA7-series timing and state acquisition modules into the mainframe's slots to configure the channel count and performance level they need. Common applications included debugging microprocessor and DSP designs, validating bus protocols (such as PCI, VMEbus, and custom parallel buses), performing timing analysis on synchronous digital logic, and conducting state analysis on embedded firmware. The platform's Windows-based software environment allowed engineers to set up complex trigger conditions, correlate logic and timing data, and integrate with emulation tools — making it a standard instrument in ASIC, FPGA, and system-board development labs of that era. The TLA700 series remains in use today in legacy hardware maintenance and academic lab settings where its modular architecture and broad module ecosystem offer strong capability at a fraction of the cost of new instruments.
