Tektronix TDS520C 500MHz 2-Ch Digitizing Oscilloscope GPIB IEEE-488 InstaVu

(No reviews yet) Write a Review
SKU:
47124
MPN:
TDS520C
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
32.00 LBS
Shipping:
Calculated at Checkout

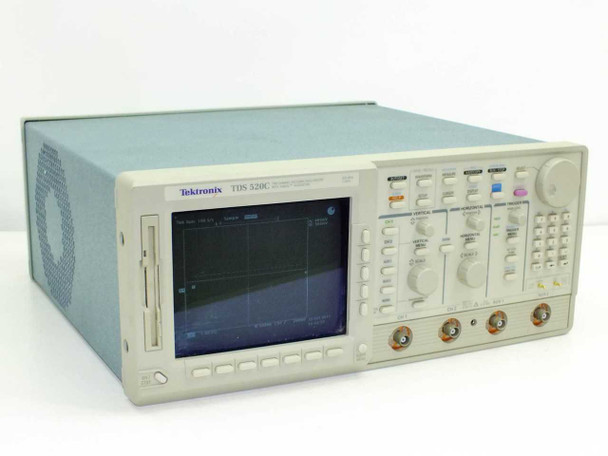

  • Tektronix TDS520C 500MHz digitizing oscilloscope – front panel three-quarter view showing display and controls
  • Tektronix TDS520C oscilloscope display screen showing active waveform trace at 100 S/s sample rate
  • Tektronix TDS520C close-up of front panel nameplate showing model number and InstaVu branding
  • Tektronix TDS520C front panel full view showing vertical, horizontal, and trigger control sections

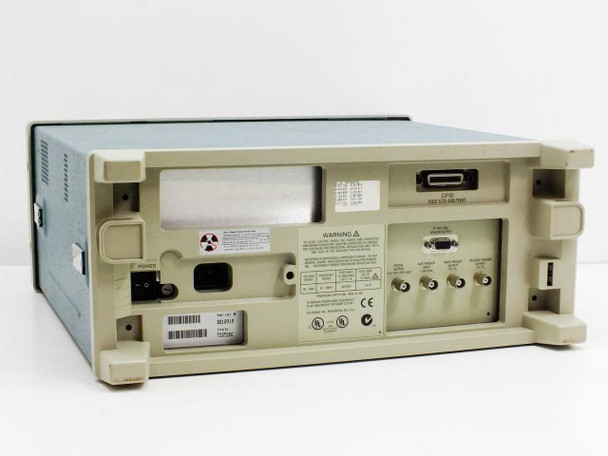

  • Tektronix TDS520C rear panel overview showing all ports and connectors
  • Tektronix TDS520C rear panel second view showing power inlet, GPIB port, and signal connectors

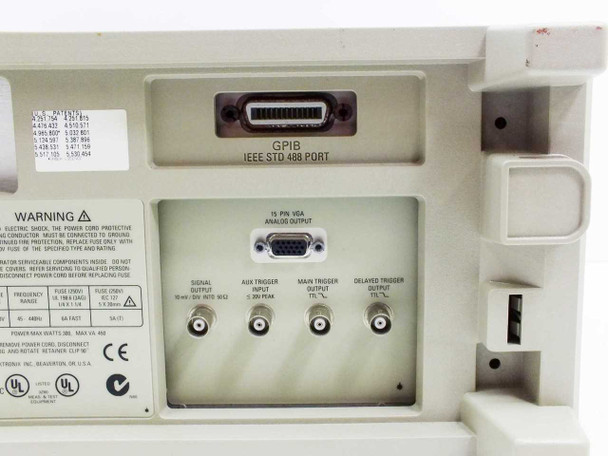

  • Tektronix TDS520C rear panel close-up showing GPIB IEEE-488 port and 15-pin VGA analog output connector

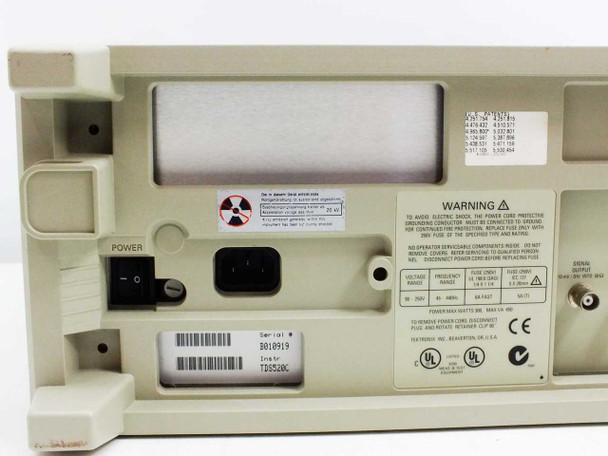

  • Tektronix TDS520C rear panel close-up showing power switch, IEC power inlet, serial number label, and fuse rating plate
  • Tektronix TDS520C internal view showing main acquisition board with DSP and FPGA chips
  • Tektronix TDS520C internal view showing Comair Rotron cooling fan assembly
  • Tektronix TDS520C internal view showing second circuit board with additional logic and acquisition circuitry
  • Tektronix TDS520C internal side view showing power supply, display assembly, and ribbon cable interconnects
  • Tektronix TDS520C rear panel view – repeat angle showing full port layout
  • Tektronix TDS520C rear panel alternate view showing GPIB, VGA output, and trigger connectors

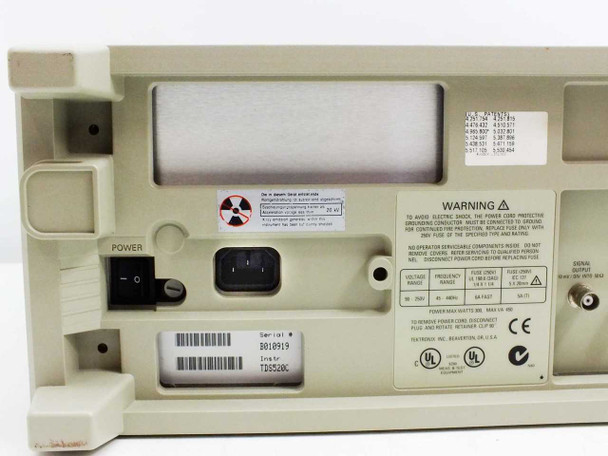

  • Tektronix TDS520C rear panel close-up showing power rating label, serial number tag, and IEC inlet
$650.00
Was: $2,000.00
Current Stock: 1

Sold Out

Description

Tektronix TDS520C 500MHz 2-Ch Digitizing Oscilloscope GPIB IEEE-488 InstaVu

Benchtop digital oscilloscope with 500 MHz bandwidth and dual-channel measurement capability. Features GPIB/IEEE-488 interface for remote control and data acquisition in lab and test environments.

Specifications & What's Included

  • Bandwidth: 500 MHz
  • Channels: 2 (CH1, CH2)
  • Sample Rate: Up to 1 GS/s (real-time)
  • Acquisition Modes: InstaVu, Sample, Peak Detect, Average, Envelope
  • Interface: GPIB / IEEE-488
  • Analog Output: 15-pin VGA
  • Storage: Built-in 3.5-inch floppy disk drive
  • Power: 100–240V AC, 50/60Hz
  • Unit only; no probes or accessories included

Applications

Suitable for signal analysis, circuit debugging, and equipment testing in electronics labs and service facilities.

Condition: Used
This Tektronix TDS520C 500MHz digitizing oscilloscope has been visually inspected and shows normal cosmetic wear consistent with previous lab use. The seller notes the unit was powered on and the display appeared active, but full operational testing was not completed at our facility. Sold in as-found condition. Please review our photos closely and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tektronix
Model:
TDS520C
MPN:
TDS520C
SKU:
47124
Condition:
Used – Inspected
Seller Notes:
Unit only; no probes or accessories confirmed included
Form Factor:
Benchtop
Country of Manufacture:
United States
Power Requirements:
100–240V AC, 50/60Hz (universal)
Measurement Type:
Digital Oscilloscope
Bandwidth:
500 MHz
Channels:
2 (CH1, CH2)
Sample Rate:
Up to 1 GS/s (real-time)
Acquisition Mode:
InstaVu, Sample, Peak Detect, Average, Envelope
Interface:
GPIB / IEEE-488
Analog Output:
15-pin VGA Analog Output
Trigger Outputs:
Main Trigger Output, Delayed Trigger Output
Aux Trigger Input:
0-200V peak
Signal Output:
10mV/div into 50 ohms
Storage Media:
Built-in 3.5-inch floppy disk drive
Series:
TDS500 Series
Compatible With:
Tektronix TDS500 series probes and accessories
Condition Notes:
This Tektronix TDS520C 500MHz digitizing oscilloscope has been visually inspected and shows normal cosmetic wear consistent with previous lab use. The seller notes the unit was powered on and the display appeared active, but full operational testing
