Tektronix TDS320 070-8569-00 Two Channel Oscilloscope Reference Manual

Tektronix TDS320 070-8569-00 Two Channel Oscilloscope Reference Manual

This is the original printed Reference Manual for the Tektronix TDS320 Two Channel Digital Oscilloscope, published by Tektronix under part number 070-8569-00. It covers the oscilloscope's menu structure, operating controls, measurement functions, and front-panel operation in the format Tektronix used for the TDS300 series.

Specifications & What's Included

• Publisher: Tektronix
• Publication number: 070-8569-00
• Document type: Reference Manual
• Applies to: Tektronix TDS320 Two Channel Digital Oscilloscope
• Number of channels covered: 2
• Language: English
• Format: Printed/hardcopy, saddle-stitched booklet

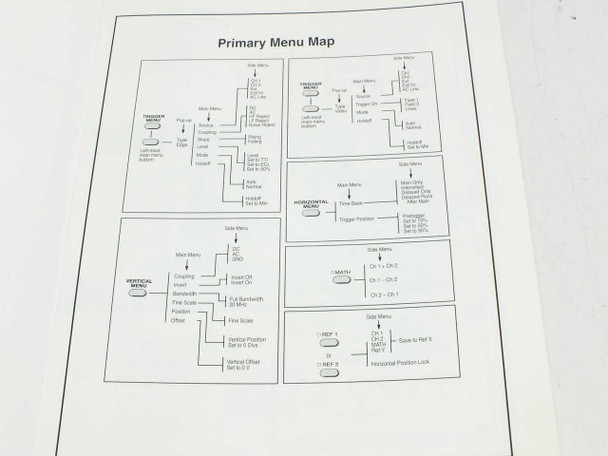

• Interior includes: Primary Menu Map diagram and detailed menu/function reference pages

Applications

The Tektronix TDS320 is a two-channel digital storage oscilloscope from the TDS300 series, introduced in the early-to-mid 1990s. It was widely used in electronics labs, field service, and educational settings for waveform capture, timing analysis, and signal troubleshooting. This reference manual is the go-to document for operators and technicians working with a TDS320 — covering the full menu system, trigger controls, vertical and horizontal settings, math functions, and reference waveform storage as shown by the Primary Menu Map inside. Technicians maintaining legacy test benches or repairing equipment that was originally aligned using a TDS320 often need this manual to navigate the oscilloscope's menu-driven interface. It remains a practical resource for anyone operating or servicing a TDS320 today.
