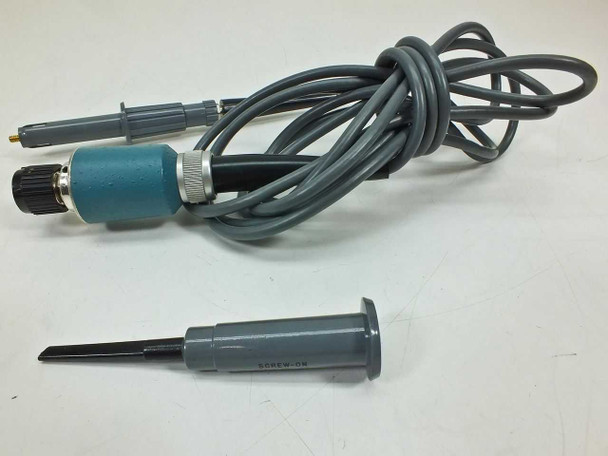

Tektronix P6009 100X Passive Probe 120 MHz 1.5 kV w/ 013-0071-00 Screw-On Tip
The Tektronix P6009 is a 100X passive oscilloscope probe with a DC to 120 MHz bandwidth and a maximum rated voltage of 1.5 kV RMS — making it one of the higher-voltage passive probes in Tektronix's classic probe lineup. It connects to any oscilloscope or plug-in unit with a 1-megohm input resistance and an input capacitance between 15 and 47 pF. This example includes the original 013-0071-00 screw-on tip accessory.
Specifications & What's Included
- Model: Tektronix P6009
- Attenuation: 100X
- Bandwidth: DC to 120 MHz
- Input Resistance: 10 MΩ
- Scope Input Resistance: 1 MΩ
- Input Capacitance: Approximately 2.5 pF
- Compensation Range: 8 pF to 47 pF
- Maximum Rated Voltage: 1.5 kV RMS

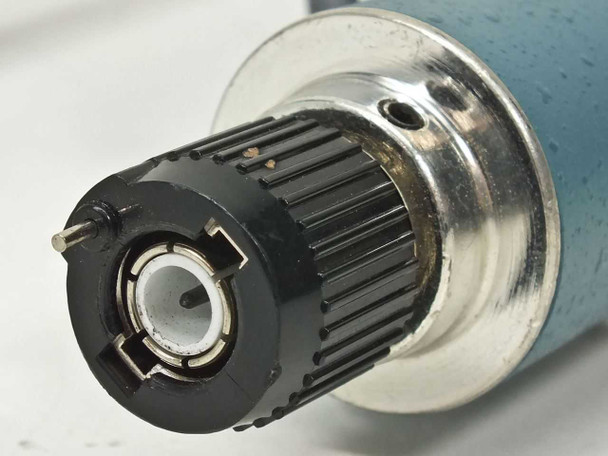

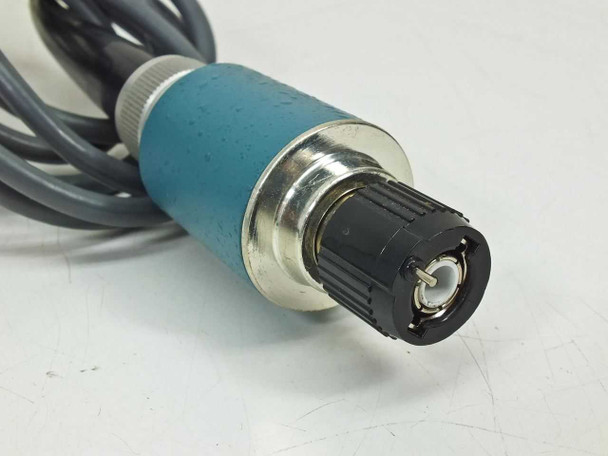

- Connector: Proprietary Tektronix scope-end connector (locking, with compensation adjustment dial)
- Gold-threaded screw contact at probe tip end
- Included: Tektronix 013-0071-00 screw-on tip (labeled, with hook-wire contact for PCB probing)
- Compatible with any oscilloscope plug-in unit having 1 MΩ input resistance and 15–47 pF input capacitance
Applications
The P6009 is a high-voltage passive probe designed for use with Tektronix wideband real-time oscilloscopes, including the classic 500-series, 7000-series mainframes, and compatible plug-in units that accept a 1 MΩ / 10X–100X passive probe. Its 1.5 kV RMS voltage rating makes it well suited for measurements in power electronics, cathode-ray tube circuits, high-voltage power supplies, and RF amplifier stages where standard low-voltage probes would be unsafe or unsuitable. The 100X attenuation reduces the signal seen by the scope input by a factor of 100, allowing the oscilloscope to measure signals that would otherwise exceed its direct input range. The included 013-0071-00 screw-on tip extends usability to tight-pitch circuit board work and solder-point probing. Passive probes of this type remain standard accessories in oscilloscope-based test benches for analog circuit development, power supply characterization, and high-voltage circuit debugging across electronics research, education, and service environments.

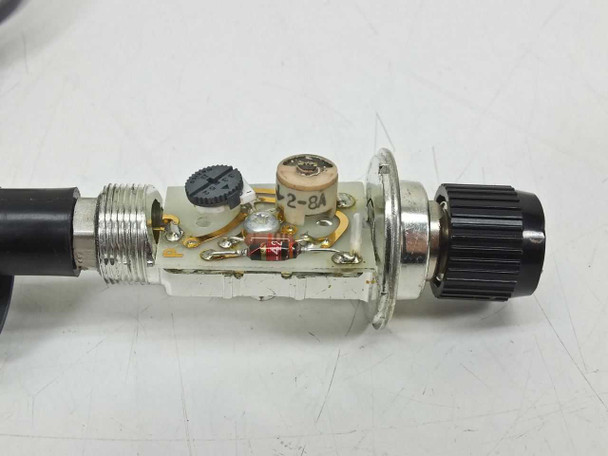

This Tektronix P6009 100X Passive Probe has been pulled from a working environment and inspected. The probe body shows typical light handling wear; the teal grip and gray probe body are intact with no cracks or breaks. The internal compensation circuit is intact and accessible, and the gold-threaded screw contact at the probe tip appears clean and undamaged. The 013-0071-00 screw-on tip is included and in good condition. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tektronix |
Model: |
P6009 |
MPN: |
P6009 |
Secondary Model: |
013-0071-00 |
Type: |
Passive Oscilloscope Probe |
SKU: |
45303 |
Attenuation: |
100X |
Bandwidth: |
DC to 120 MHz |
Input Resistance: |
10 MΩ |
Scope Input Resistance: |
1 MΩ |
Input Capacitance: |
Approx. 2.5 pF |
Compensation Range: |
8 pF to 47 pF |
Max Rated Voltage: |
1.5 kV RMS |
Compatible With: |
Any oscilloscope with 1 MΩ input, 15–47 pF capacitance |
Connector Type: |
Proprietary Tektronix BNC-style scope connector |
Included Accessories: |
013-0071-00 screw-on tip |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes 013-0071-00 screw-on tip. Probe only — no additional accessories. |
Condition Notes: |
This Tektronix P6009 100X Passive Probe was pulled from a working environment and inspected. Shows typical light use wear. Probe body, connector, and compensation dial are intact. Includes 013-0071-00 screw-on tip. |
