Tektronix P6106A 10X Passive Oscilloscope Probe DC to 250 MHz 010-6106-13

Tektronix P6106A 10X Passive Oscilloscope Probe DC to 250 MHz 010-6106-13

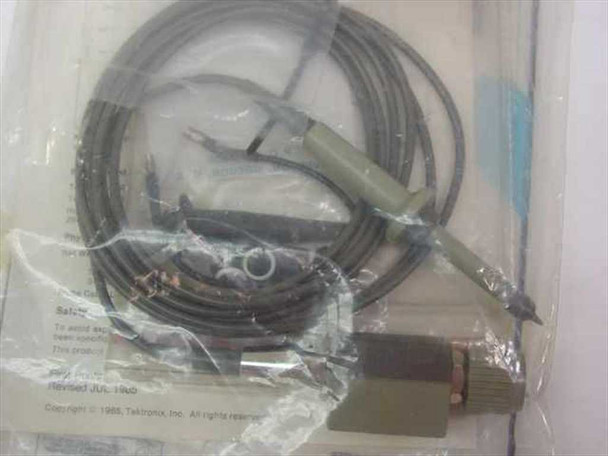

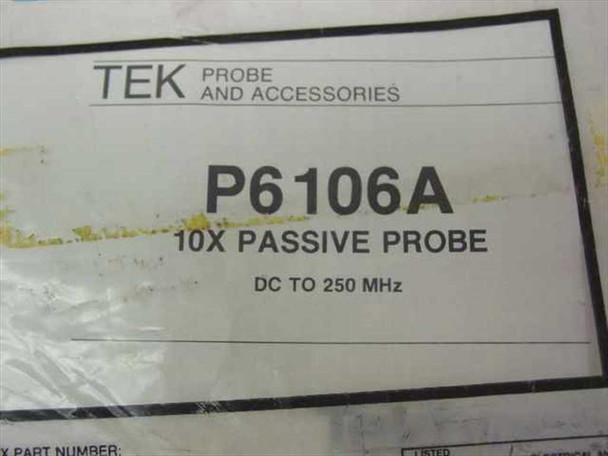

The Tektronix P6106A is a 10X (10:1) passive oscilloscope probe with a bandwidth of DC to 250 MHz. This example is new and sealed in its original Tektronix bag, part number 010-6106-13, and includes the probe, accessories kit, ground lead, and printed specification sheet.

Specifications & What's Included

• Model: Tektronix P6106A
• Part Number: 010-6106-13
• Attenuation: 10X (10:1)
• Bandwidth: DC to 250 MHz
• Includes: probe body with coaxial cable, ground lead, accessories kit, and printed specification sheet
• Original sealed Tektronix bag — new, never used

Applications

The P6106A is a general-purpose passive 10X probe designed for use with Tektronix oscilloscopes equipped with a standard BNC input. Passive 10X probes are the workhorse of bench testing and electronics debugging — the 10:1 divider ratio reduces the signal voltage reaching the oscilloscope input while the probe's low capacitive loading minimizes circuit disturbance, making it suitable for measuring signals up to 250 MHz across a wide range of applications. The P6106A was produced during an era when Tektronix was the dominant supplier of oscilloscope probes and accessories for engineers and technicians worldwide, and it remains compatible with any modern oscilloscope that accepts a standard BNC-terminated 10X passive probe. Typical applications include general circuit debugging, waveform verification, signal integrity checks, and educational lab use.
