Tektronix P6008 Oscilloscope Probe 10X Passive BNC w/ Instruction Manual

Tektronix P6008 Oscilloscope Probe 10X Passive BNC w/ Instruction Manual

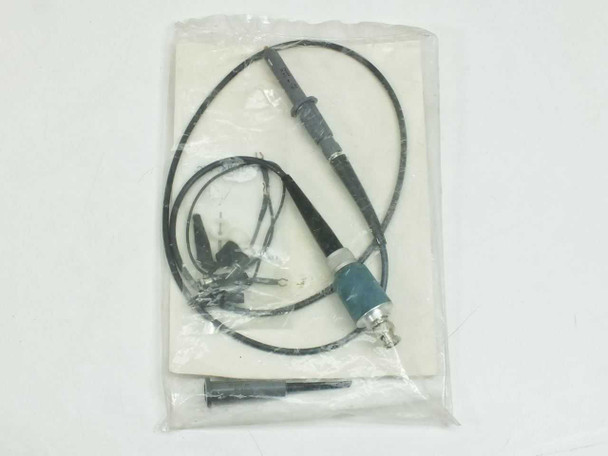

The Tektronix P6008 is a 10X (10:1) passive voltage probe designed for use with Tektronix oscilloscopes equipped with a standard BNC input. This unit is new old stock, still sealed in its original clear plastic bag, and includes the original Tektronix instruction manual (publication number 010-3172-00). The probe body, BNC connector, ground lead, retractable hook tip, and additional probe accessories are all present and visible through the bag.

Specifications & What's Included

• Model: Tektronix P6008
• Probe type: Passive voltage probe
• Attenuation ratio: 10X (10:1)

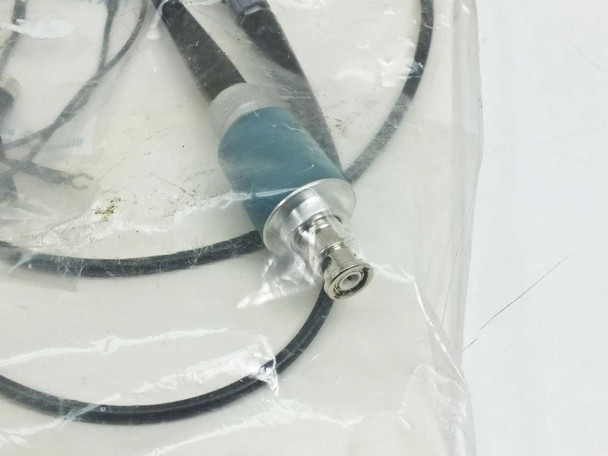

• Connector: BNC (oscilloscope end)

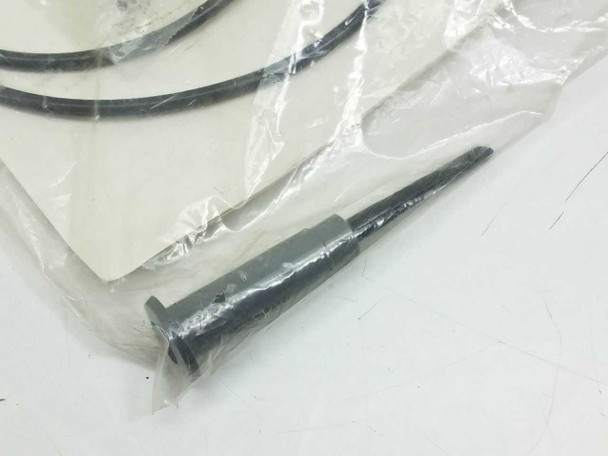

• Includes: Probe body with cable, ground lead with alligator clip, retractable hook tip, probe tip accessories
• Instruction manual included: Tektronix P6008 Probe Instruction Manual, publication no. 010-3172-00
• Condition: New old stock — still in original sealed bag, unused

Applications

The Tektronix P6008 is a general-purpose passive oscilloscope probe intended for voltage measurement on a wide range of Tektronix oscilloscopes with standard BNC inputs. Passive 10X probes like the P6008 are standard accessories for analog and early digital oscilloscopes, attenuating the input signal by a factor of 10 to extend the effective voltage range of the scope while reducing circuit loading. They are commonly used on bench oscilloscopes for signal tracing, circuit troubleshooting, waveform analysis, and general electronic test work in lab, field service, and educational settings. The P6008 dates from the era of Tektronix analog oscilloscopes and is compatible with many classic Tektronix benchtop instruments as well as a broad range of oscilloscopes accepting standard BNC probes.
