The Tektronix 7D01 is a 16-channel logic analyzer plug-in module designed for use with Tektronix 7000-series oscilloscope mainframes. It works in tandem with the DF2 Display Formatter plug-in — both of which are included here — to capture, store, and display digital logic data in a variety of formats directly within the 7000-series instrument. The 7D01 handles data acquisition and the DF2 handles display formatting, together forming a complete logic analysis system within the mainframe chassis.

Specifications & What's Included

• Make / Model: Tektronix 7D01 Logic Analyzer Plug-In
• Display Formatter: DF2 Display Formatter Plug-In (included)
• Data Channels: 16
• Maximum Input Signal Speed: 100 MHz
• Memory Depth: 4,096 locations
• Display Formats (via DF2): Timing Diagram, Mapping, State Table, Binary, Hexadecimal, ASCII, IEEE-488
• Interface: IEEE-488 (GPIB) output
• Data Output Connectors: DATA OUT and W.B. OUT (yellow BNC, front panel)
• Form Factor: Plug-In Module (occupies two slots in a 7000-series mainframe)
• Compatible Mainframes: Tektronix 7000 Series (e.g. 7603, 7623, 7633, 7704, 7834, and others)

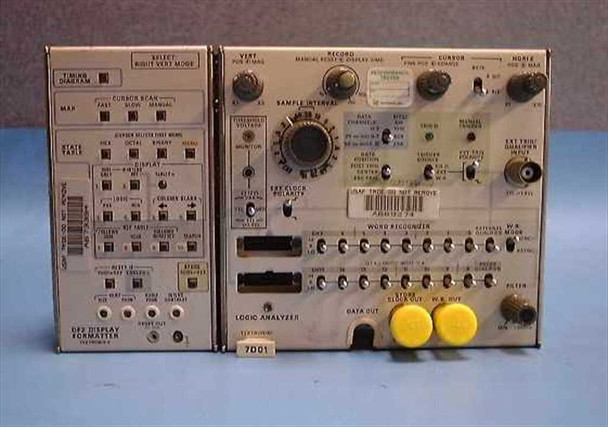

• Front Panel: Timing Diagram, Cursor Scan, State Table, Display mode controls on DF2; Sample Interval knob, Word Recognizer, and channel controls on 7D01
• Includes: 7D01 Logic Analyzer plug-in and DF2 Display Formatter plug-in
• Cables, probes, and mainframe chassis are NOT included

Applications

The Tektronix 7000-series plug-in system was the dominant modular instrument platform of the 1970s and early 1980s, allowing engineers to build customized test setups by mixing oscilloscope, logic analyzer, signal generator, and other plug-in modules in a single mainframe. The 7D01, introduced in that era, brought logic analysis capability into the 7000-series ecosystem — a significant convenience for digital hardware engineers who already owned a 7000-series scope. It was used in digital circuit design, microprocessor debug, bus analysis, and hardware verification work typical of that period. Today, 7D01/DF2 pairs are sought by engineers maintaining vintage computing or instrumentation systems, by collectors of classic Tektronix equipment, and by labs that still have operational 7000-series mainframes. The IEEE-488 (GPIB) output also allows integration with automated test systems. A working 7000-series mainframe with at least two compatible plug-in slots is required to use this unit.
