Tektronix 671-3760-70 PCBA Main Logic Board Phaser 350 Z340 SCSI Parallel

(No reviews yet) Write a Review
SKU:
43602
MPN:
671-3760-70
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

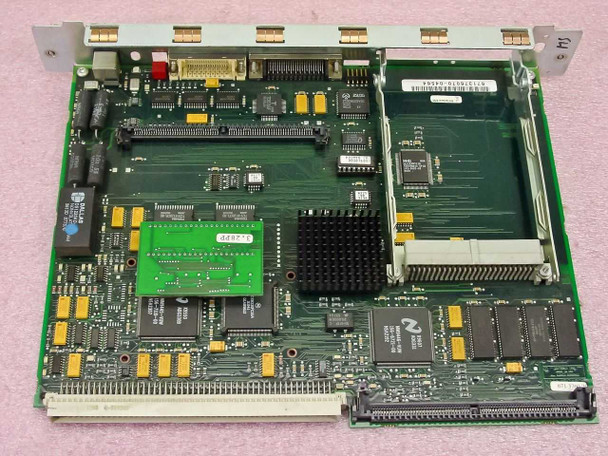

  • Tektronix 671-3760-70 PCBA Main Logic Board – top-side component view showing daughtercard, heatsink, and memory modules
  • Tektronix 671-3760-70 PCBA Main Logic Board – solder-side (bottom) view showing clean PCB traces and edge connector
  • Tektronix 671-3760-70 board label close-up showing part number, copyright 1995, Made in USA markings
  • Tektronix 671-3760-70 Main Logic Board – top angled view showing full card assembly with metal bracket

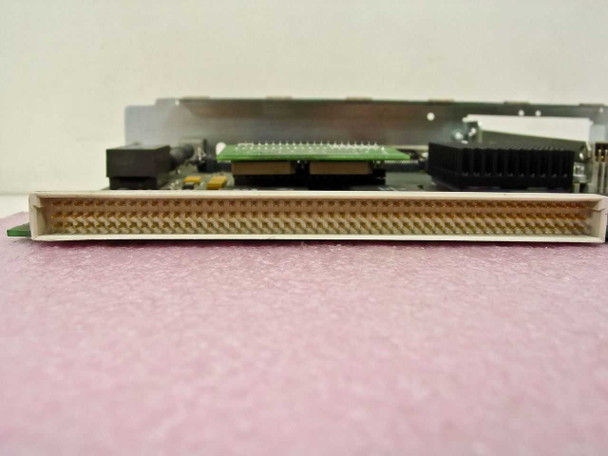

  • Tektronix 671-3760-70 board – edge connector close-up showing multi-pin bus connector at bottom of card

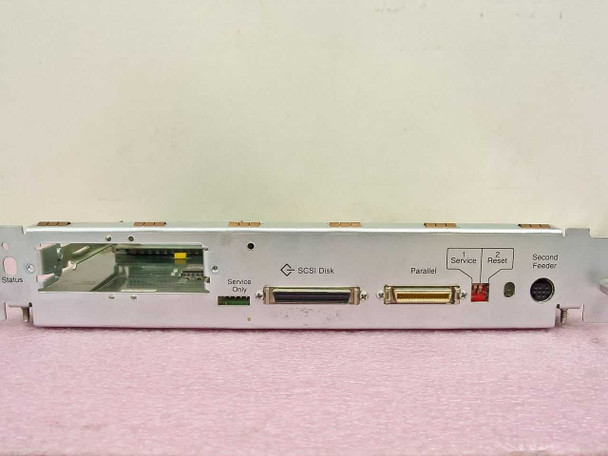

  • Tektronix 671-3760-70 bracket panel showing SCSI Disk port, Parallel port, Service Only connector, Reset button, and Second Feeder port
  • Tektronix 671-3760-70 bracket close-up – SCSI Disk 50-pin Centronics port and Service Only header detail

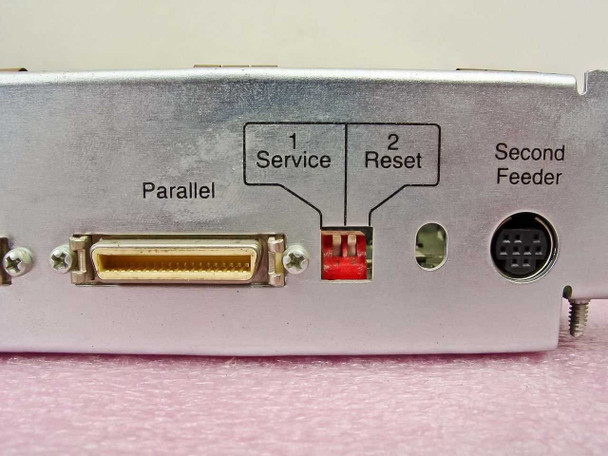

  • Tektronix 671-3760-70 bracket close-up – Parallel port, Service and Reset jumper/button, and Second Feeder mini-DIN connector

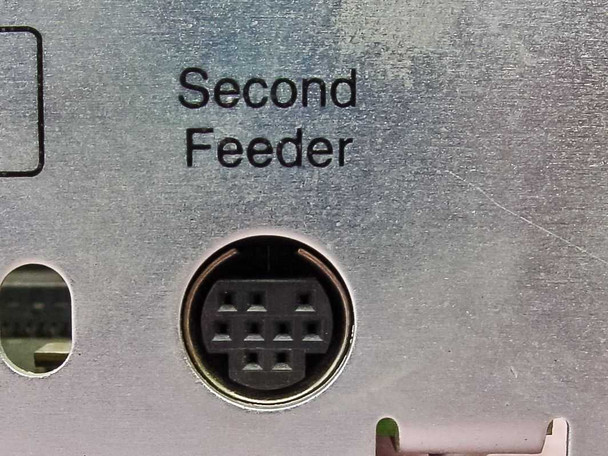

  • Tektronix 671-3760-70 bracket – Second Feeder mini-DIN connector close-up

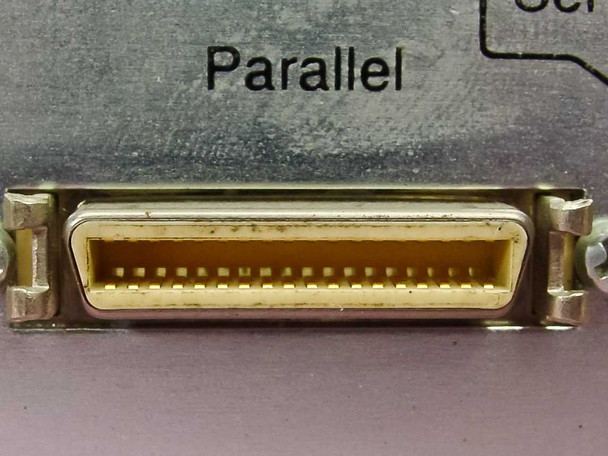

  • Tektronix 671-3760-70 bracket – Parallel port Centronics connector close-up showing gold contacts
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

Tektronix 671-3760-70 PCBA Main Logic Board Phaser 350 Z340 SCSI Parallel

Main logic board for Tektronix Phaser 350 and Z340 color printers. This board handles system control, SCSI disk communication, and parallel port operations for the printer's core functions.

Specifications & What's Included

  • Model: Tektronix 671-3760-70
  • Compatible: Phaser 350, Z340 Printer
  • Interfaces: SCSI 50-pin, Parallel (Centronics), Mini-DIN
  • Form Factor: Card/Module (Rackmount Slide-In Board)
  • Manufacture Date: 1995
  • Origin: United States
  • Board only; no additional components included

Applications

The Phaser 350 and Z340 were commercial color printers used in print shops, design firms, and corporate environments during the 1990s and 2000s. This logic board served as the central control unit, managing print job processing, device communication via SCSI and parallel interfaces, and paper handling through secondary feeder support. Typical installations included networked print environments requiring CMYK color output on specialty media.

Condition: Used
This Tektronix 671-3760-70 PCBA Main Logic Board for the Phaser 350 / Z340 printer was pulled from a working environment where it was in active use. The board has been inspected and appears to be in good condition. The PCB is clean with no visible damage, burnt components, or broken traces on either side. The bracket panel, SCSI Disk port, Parallel port, and Second Feeder connector all look intact and undamaged. Normal light surface wear is present on the metal bracket consistent with prior installation. Please view our photo set and contact us if you have any questions.
View AllClose
