Tektronix 531A Tube Analog Oscilloscope Type CA Dual-Trace Plug-In 500 Series

Tektronix 531A Tube Analog Oscilloscope Type CA Dual-Trace Plug-In 500 Series

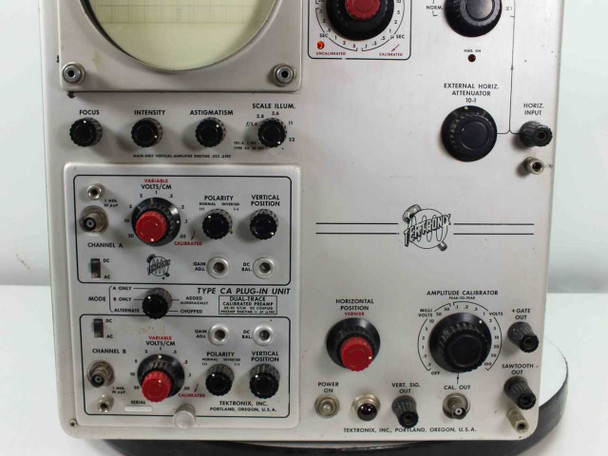

The Tektronix 531A is a vintage vacuum-tube analog oscilloscope from Tektronix's classic 500 series, one of the most influential lines of benchtop scopes in the history of electronic test equipment. It accepts plug-in vertical amplifiers in its lower front compartment; this unit is equipped with the Type CA Dual-Trace plug-in, which provides two independent vertical channels with selectable deflection sensitivity. The time base, trigger controls, and CRT electronics are built into the main chassis.

Specifications & What's Included

• Make / Model: Tektronix 531A (Type 531A Oscilloscope)
• Plug-In Installed: Type CA Dual-Trace Plug-In Unit
• Number of Channels: 2 (Channel A and Channel B)
• Vertical Sensitivity Range: 0.5 to 20.0 V/cm (per original spec and plug-in label)
• Trace Modes: A Only, B Only, Alternate, Chopped
• Polarity: Normal / Inverted (per channel)
• Time Base: Variable Time/CM with Stability / Triggering Level control
• Triggering Modes: Line, Internal, Auto, External, HF Sync
• Trigger Slope: Plus / Minus (selectable)
• Trigger Input: External BNC (rear-right)
• Horizontal Display Modes: Time Base, ×10 Mag, A to B, Ext. Horiz. Action
• External Horiz. Attenuator: 10:1 built-in
• Horiz. Input: BNC connector
• Beam Controls: Focus, Intensity, Astigmatism, Scale Illumination
• Amplitude Calibrator: built-in, with Gate/Y output and Sawtooth output
• Outputs: Vert. Osc., Cal. Out., Sawtooth, Power switch
• Rear Panel: Dual Trace Chopped Blanking toggle, CRT Cathode Selector toggle, External CRT Cathode binding post, GND binding post

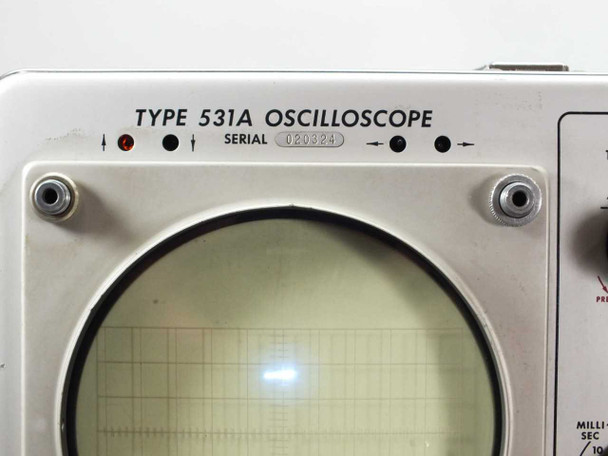

• Display: Large round CRT with gridded graticule
• Technology: Vacuum tube (thermionic valve) — no solid-state transistors in signal path
• Power: 115V or 234V AC, 50/60Hz (selectable via internal configuration)
• Fuse Ratings: 115V — 6A Fast / 1.25A Slow; 234V — 2A Fast / 0.5A Slow

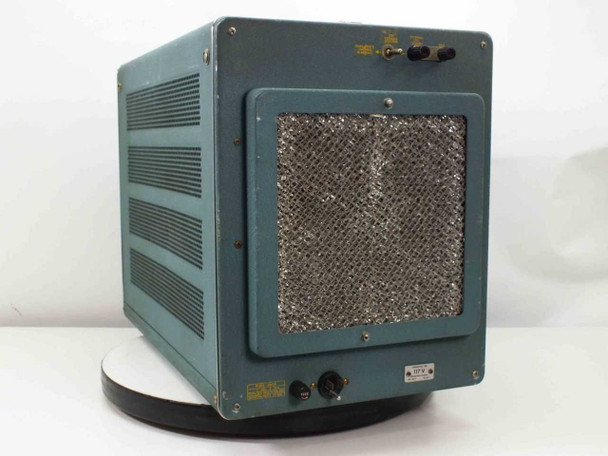

• Cabinet: Tektronix teal/blue-gray steel enclosure with ventilated mesh rear and perforated side panels
• Country of Manufacture: United States (Tektronix Inc., Portland, Oregon)
• Included: Oscilloscope with Type CA plug-in installed. No probes, test leads, manual, or cables included.

Applications

The Tektronix 500 series was introduced in the mid-1950s and became a defining platform for laboratory and engineering oscilloscopes through the early 1960s. The 531 and 531A were general-purpose benchtop instruments used in electronics research, university teaching labs, military/defense electronics work, and industrial R&D — essentially anywhere engineers needed to visualize time-domain waveforms in the vacuum-tube era. The plug-in architecture was a Tektronix innovation: rather than buying a new oscilloscope for each application, engineers could swap vertical plug-ins (such as the Type CA for dual-trace work, or single-channel types for high-sensitivity or differential measurements) while reusing the same main chassis and time base. The Type CA specifically allowed engineers to compare two signals simultaneously — a capability that was genuinely novel for its era. Today, the Tektronix 531A and its 500-series siblings are sought by vintage electronics collectors, ham radio operators, tube-audio enthusiasts, antique instrument restorers, and anyone maintaining period-correct test benches or classic valve-based equipment. They are also used as display pieces and museum-quality examples of mid-century American precision instrument design.
