Tektronix 4207 CRT Terminal Display CRT Tube Power Supply PC Boards Parts
This is a disassembled parts lot from a Tektronix 4207 CRT terminal display, a monochrome vector graphics terminal from the 1980s. The lot contains the CRT tube, power supply, and associated circuit boards.
Specifications & What's Included
- Model: Tektronix 4207
- MPN: TNP890001, TNP800097
- Components: CRT tube, power supply, monitor board (TNP890001), control board (TNP800097/NTP-N870-T), TLY85321D capacitor
- Display Type: CRT (Cathode Ray Tube)
- Chassis Number: X44
- Country of Manufacture: United States
Applications
The Tektronix 4200 series terminals were used for technical graphics, CAD workstations, and laboratory instrumentation control from the 1980s through early 1990s. These vector-based displays connected to minicomputers and workstations via serial or network connections. The 4207 was compatible with Tektronix graphics systems and supported vector drawing commands for engineering and scientific applications.
Condition: For Parts or Not Working

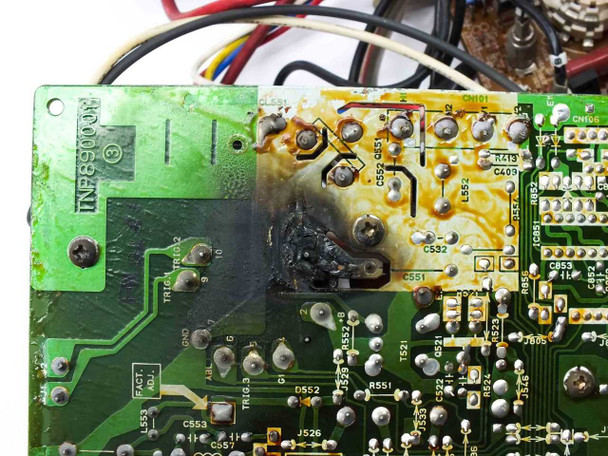

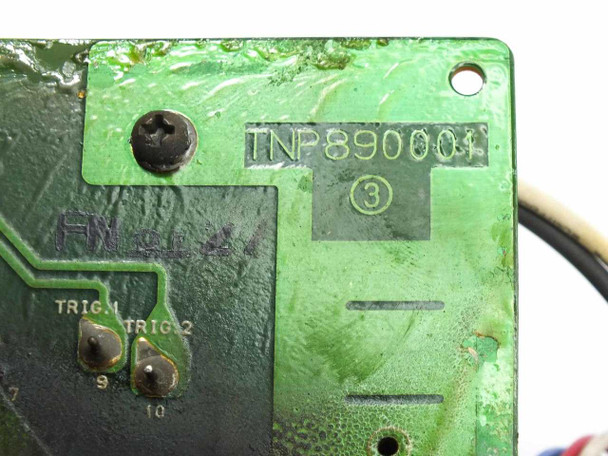

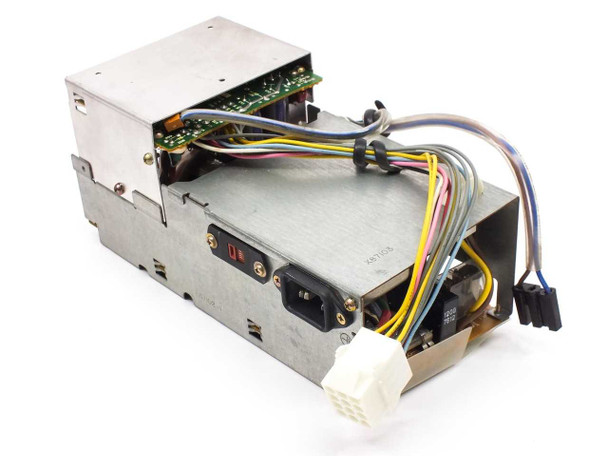

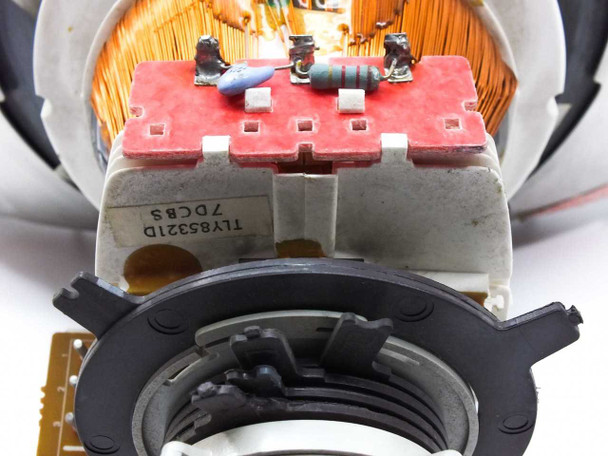

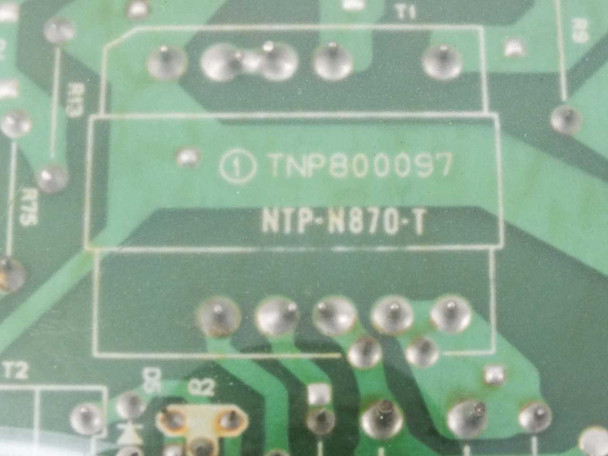

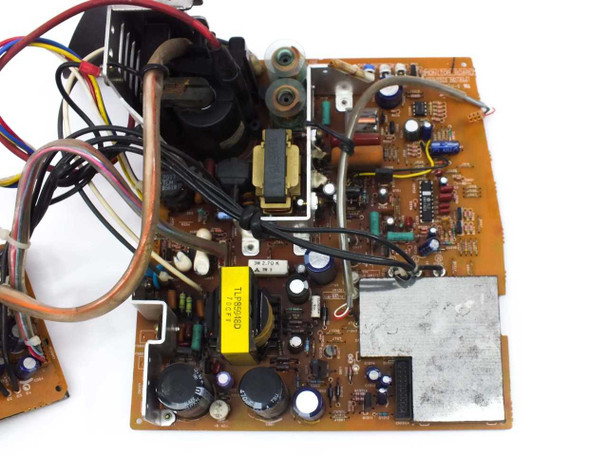

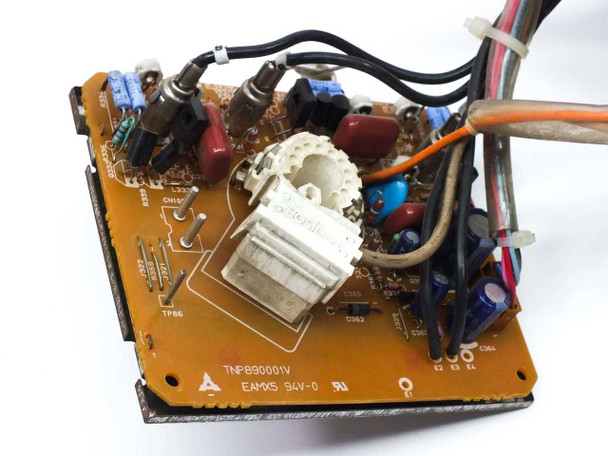

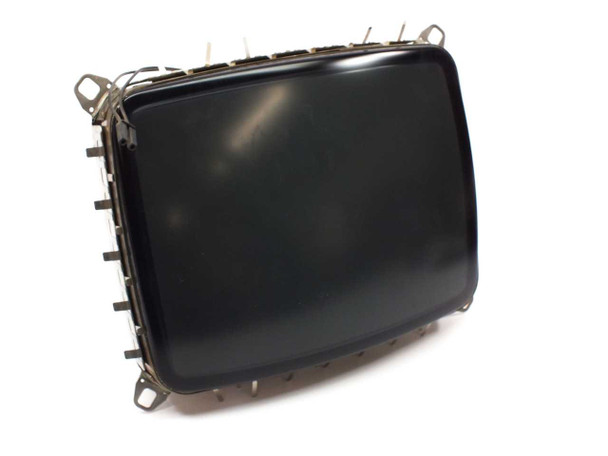

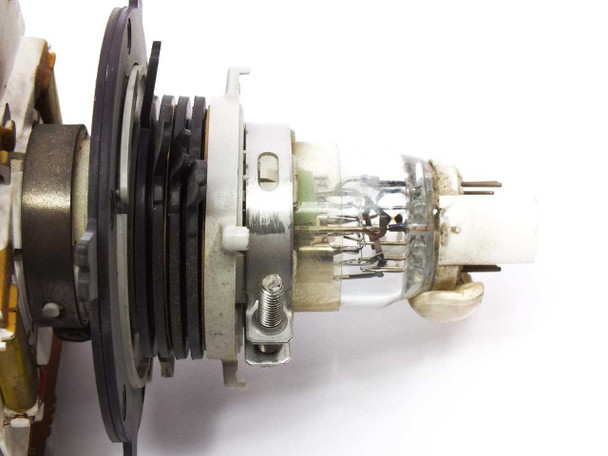

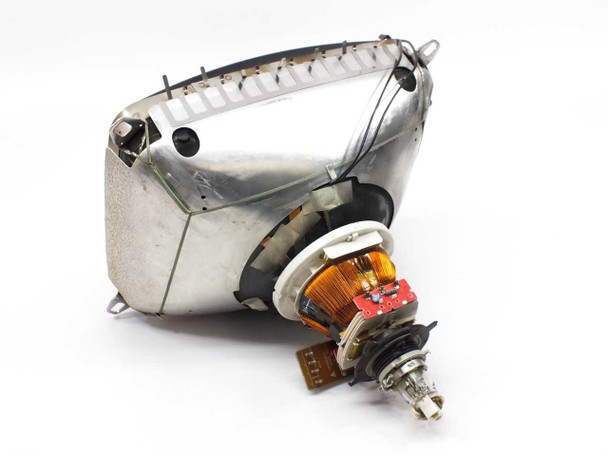

This Tektronix 4207 CRT Terminal Display is being sold as-is for parts or repair. The unit is disassembled and untested — no functionality is guaranteed. Components included are the CRT screen tube (with deflection yoke and electron gun intact), the power supply assembly, the TNP890001 monitor/PC board, the TNP800097 (NTP-N870-T) PC board, and the TLY85321D capacitor board. The CRT tube, yoke, and boards show normal wear consistent with age and use. Please review our full photo set for a detailed look at each component, and contact us with any questions before purchasing.
This Tektronix 4207 CRT Terminal Display is being sold as-is for parts or repair. The unit is disassembled and untested — no functionality is guaranteed. Components included are the CRT screen tube (with deflection yoke and electron gun intact), the power supply assembly, the TNP890001 monitor/PC board, the TNP800097 (NTP-N870-T) PC board, and the TLY85321D capacitor board. The CRT tube, yoke, and boards show normal wear consistent with age and use. Please review our full photo set for a detailed look at each component, and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tektronix |
Model: |
4207 |
MPN: |
TNP890001 |
Secondary Model: |
TNP800097 |
Type: |
CRT Terminal Display – Parts Lot |
SKU: |
49219 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes CRT tube, power supply, TNP890001, TNP800097 PC boards, TLY85321D capacitor |
Country/Region of Manufacture: |
United States |
Form Factor: |
Desktop / Terminal |
Display Type: |
CRT (Cathode Ray Tube) |
Compatible With: |
Tektronix 4200 Series Terminals |
Components Included: |
CRT tube, power supply, PC boards, capacitor |
PC Board 1 Part Number: |
TNP890001 (Monitor Board) |
PC Board 2 Part Number: |
TNP800097 / NTP-N870-T |
Capacitor Part Number: |
TLY85321D |
Chassis Number: |
X44 |
Condition Notes: |
Tektronix 4207 CRT Terminal Display — sold as-is for parts or repair. Disassembled, untested, no functionality guaranteed. Includes CRT tube, power supply, TNP890001, TNP800097 PC boards, TLY85321D capacitor. See photos. |
