Description
Tektronix Type 3A1 Dual-Trace Amplifier Instruction Manual with Schematics
Spiral-bound instruction manual for the Tektronix Type 3A1 Dual-Trace Amplifier plugin unit. Contains operating procedures and complete schematic diagrams for this oscilloscope amplifier module.
Specifications & What's Included
- Brand: Tektronix
- Model: Type 3A1 Dual-Trace Amplifier
- Format: Printed spiral-bound manual
- Includes full schematics
- Language: English
- Manufacturer: United States
Applications
The Type 3A1 is a dual-channel amplifier plugin designed for use with Tektronix oscilloscope mainframes. This manual provides technicians and operators with technical documentation needed to install, operate, and troubleshoot the amplifier module. Documentation of this type serves as reference material for equipment maintenance, calibration, and repair work on vintage test and measurement instruments.
Condition: Used

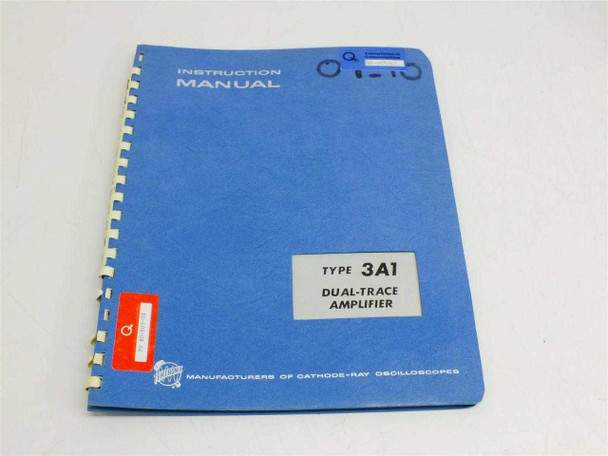

This Tektronix Type 3A1 Dual-Trace Amplifier Instruction Manual has been inspected and is in good used condition. The blue spiral binding is intact and the cover shows light shelf wear consistent with age. All pages appear to be present and legible, including the full schematic fold-outs visible throughout. There is some handwriting/marking on the front cover (visible in photos) but the content itself is clean and readable. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Tektronix Type 3A1 Dual-Trace Amplifier Instruction Manual has been inspected and is in good used condition. The blue spiral binding is intact and the cover shows light shelf wear consistent with age. All pages appear to be present and legible, including the full schematic fold-outs visible throughout. There is some handwriting/marking on the front cover (visible in photos) but the content itself is clean and readable. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tektronix |
Model: |
3A1 |
MPN: |
Type 3A1 |
Type: |
Instruction Manual with Schematics |
SKU: |
37602 |
Document Type: |
Instruction Manual |
Includes Schematics: |
Yes |
For Use With / Compatible With: |
Tektronix Type 3A1 Dual-Trace Amplifier Plugin |
Language: |
English |
Format: |
Printed / Spiral Bound |
Condition: |
Used – Inspected, Good Condition |
Seller Notes: |
Spiral-bound instruction manual with full schematics included |
Country/Region of Manufacture: |
United States |
