Tektronix 2445/2465 070-4633-00 Option 10 GPIB Operators Instruction Manual 1985
This is the original Tektronix Operators Instruction Manual for the 2445 and 2465 oscilloscopes equipped with Option 10, the GPIB (General Purpose Interface Bus) interface option. Published by Tektronix, Inc. under part number 070-4633-00 (Product Group 38), this spiral-bound manual covers operation of the instrument when the IEEE-488 GPIB option is installed, including GPIB-specific functions, formats, and programming procedures not found in the standard operators manual.
Specifications & What's Included
- Publication Number: 070-4633-00
- Product Group: 38
- Covers: Tektronix 2445 and 2465 Oscilloscopes with Option 10 (GPIB)
- Document Type: Operators Instruction Manual
- First Printing: September 1983
- Revision: October 1985
- Publisher: Tektronix, Inc., Beaverton, Oregon 97077
- Format: Spiral-bound print manual with tabbed sections
- Language: English

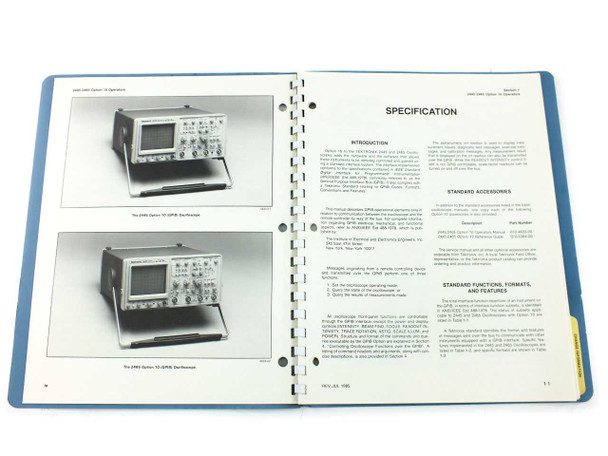

- Contents include: Specifications, Introduction, Standard Accessories, Standard Functions/Formats/Features, GPIB operation, and Change Information section at rear
Applications
The Tektronix 2445 and 2465 are analog oscilloscopes from the 2400 series, introduced in the early 1980s and widely used in electronics labs, service centers, and educational institutions through the late 1980s and 1990s. The 2465 was particularly well-regarded as a high-bandwidth portable scope for its era. Option 10 added an IEEE-488 (GPIB/HPIB) interface, allowing the oscilloscope to be integrated into automated test systems and computer-controlled bench setups — common in production testing, military/aerospace labs, and university research environments of that period. This manual is the essential reference for anyone operating, programming, or maintaining a GPIB-equipped 2445 or 2465, covering the bus-specific commands, status formats, and operating modes that are not documented in the base instrument manual. Technicians and collectors restoring or operating these scopes today still rely on original Tektronix documentation for accurate operating procedures.

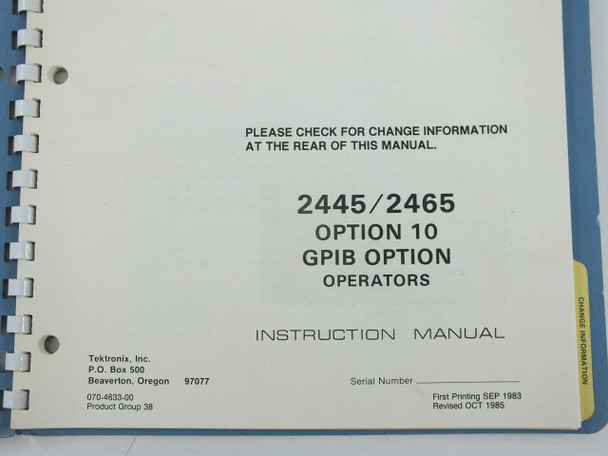

This Tektronix 2445/2465 Option 10 GPIB Operators Instruction Manual (070-4633-00) is in good used condition. The blue spiral binding is intact and the cover shows light shelf wear consistent with age. All pages appear to be present and legible. The title page confirms part number 070-4633-00, First Printing September 1983, Revised October 1985, Product Group 38. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Tektronix |
Model: |
2445/2465 |
MPN: |
070-4633-00 |
Type: |
Operators Instruction Manual |
SKU: |
52431 |
For Make/Model: |
Tektronix 2445 / 2465 Oscilloscope |
Document Type: |
Operators / Instruction Manual |
Option Covered: |
Option 10 – GPIB Interface |
Publication Number: |
070-4633-00 |
Product Group: |
38 |
First Printing: |
September 1983 |
Revision Date: |
October 1985 |
Language: |
English |
Format: |
Spiral-Bound Print Manual |
Compatible With: |
Tektronix 2445, 2465 with Option 10 GPIB |
Publisher: |
Tektronix, Inc. |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected, pages present and legible |
Seller Notes: |
Manual only; spiral-bound, good used condition |
Condition Notes: |
Tektronix 2445/2465 Option 10 GPIB Operators Manual 070-4633-00. Good used condition — spiral binding intact, light shelf wear on cover, all pages present and legible. Revised Oct 1985. |
