Tektronix 1140A HNVS Programmable Power Supply Test System w/ Data Coupler SM-5

(No reviews yet) Write a Review
SKU:
45194
MPN:
1140A
Condition:
Used
Availability:
Usually ships within 3-5 business days due to size and system complexity.
Weight:
400.00 LBS
Shipping:
Calculated at Checkout

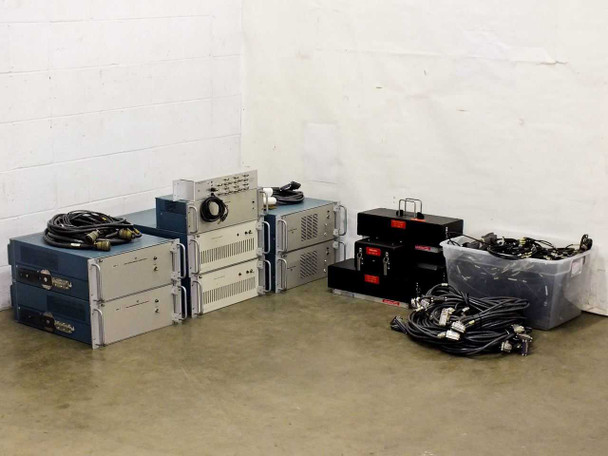

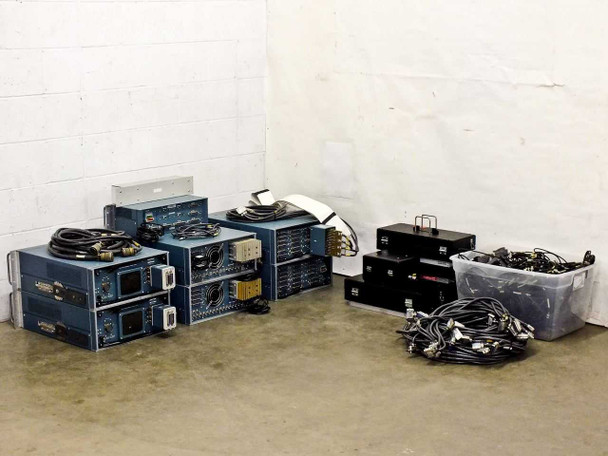

  • Tektronix 1140A HNVS Programmable Power Supply Test System full lot overview — all components laid out on floor including rackmount units, HNVS test fixture assemblies, and cable bin

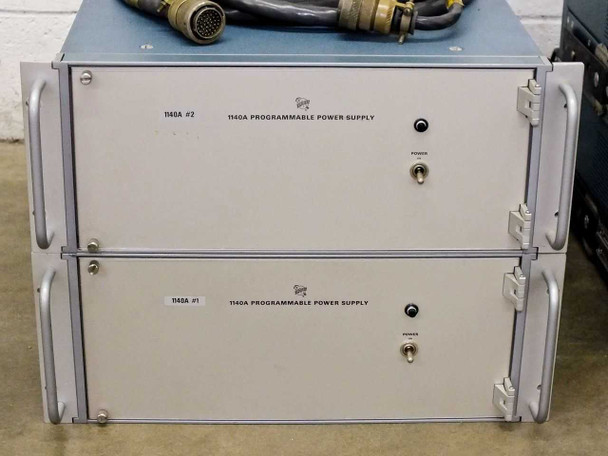

  • Two Tektronix 1140A Programmable Power Supply units stacked — front panel view showing unit labels '1140A #2' and '1140A #1' with key switches and indicator lights

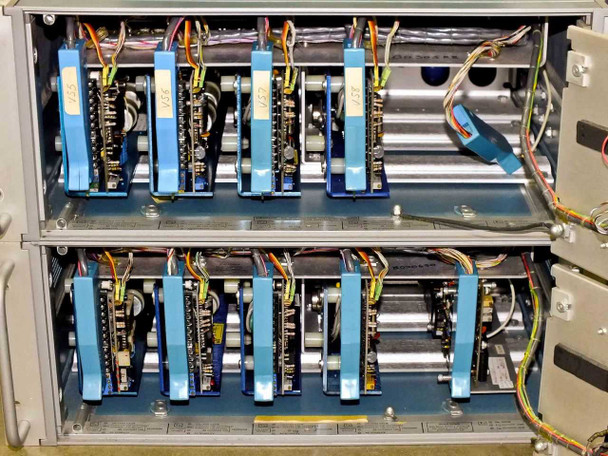

  • Interior of Tektronix 1140A Programmable Power Supply units with covers open — showing two rows of blue plug-in modules and internal wiring harnesses
  • Large multi-pin military circular connector cable coiled on top of Tektronix 1140A unit — heavy-duty system interconnect cable with mil-spec connectors on both ends

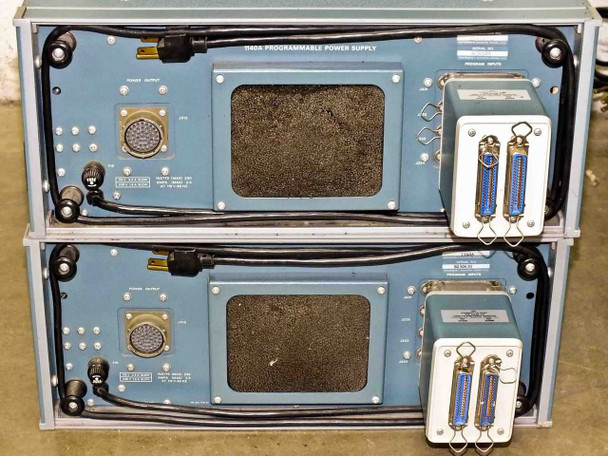

  • Rear panel view of two stacked Tektronix 1140A Programmable Power Supply units — showing large military circular output connectors, BNC ports, Centronics interface connectors, cooling vents, and attached Program Unit modules

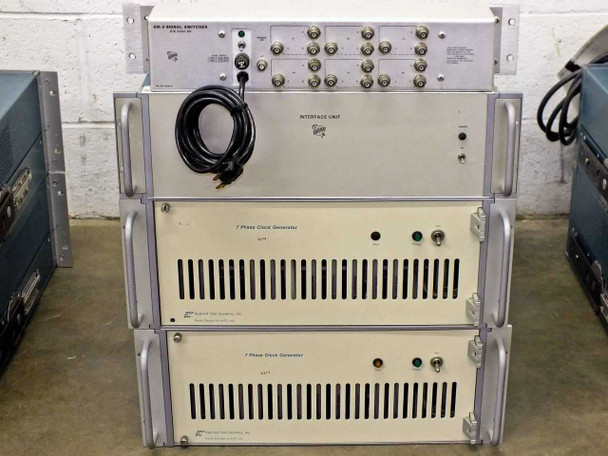

  • Rack stack showing SM-5 Signal Switcher (top, p/n 015-0281-00), Station Control Interface Unit (middle), and two 7 Phase Clock Generator units (bottom) — Tektronix branding visible
  • Close-up of SM-5 Signal Switcher front panel — label reads 'SM-5 SIGNAL SWITCHER 015-0281-00', PN 700-1928-01, fuse data plate showing 115V/0.8A SLO and 230V/0.4A SLO, green power indicator LED, and power toggle switch

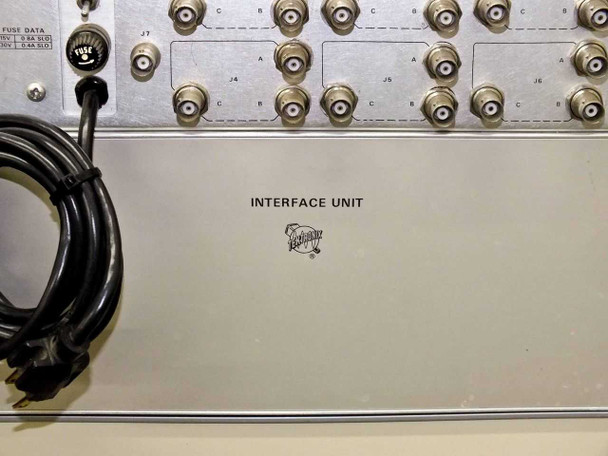

  • Close-up of Station Control Interface Unit front panel — shows 'INTERFACE UNIT' label with Tektronix logo and array of BNC connectors across the top portion
  • Two Applied Test Systems 7 Phase Clock Generator units stacked — front panel view showing model labels, pilot/power indicator LEDs, and power toggle switches

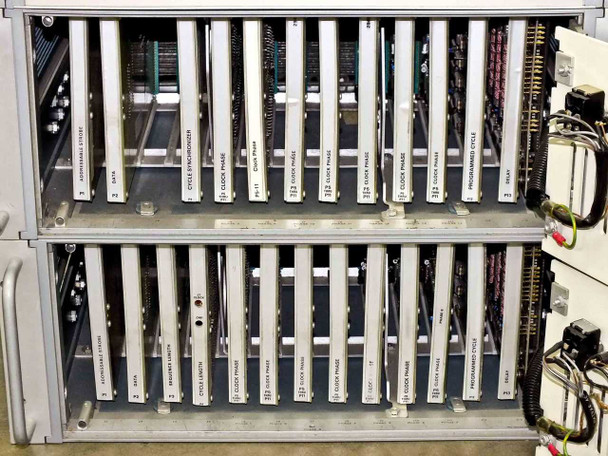

  • Interior of 7 Phase Clock Generator unit with cover open — card cage showing labeled plug-in modules including Clock Phase, Programmable Cycle, Delay, Data, and other function cards in both upper and lower chassis
  • Rear panel of Station Control Interface / Station Control Unit — shows 'STATION CONTROL INTERFACE' label, p/n 015-0211-03, multiple Centronics 50-pin connectors labeled JS21 through JS14, identification module, and power/status indicator

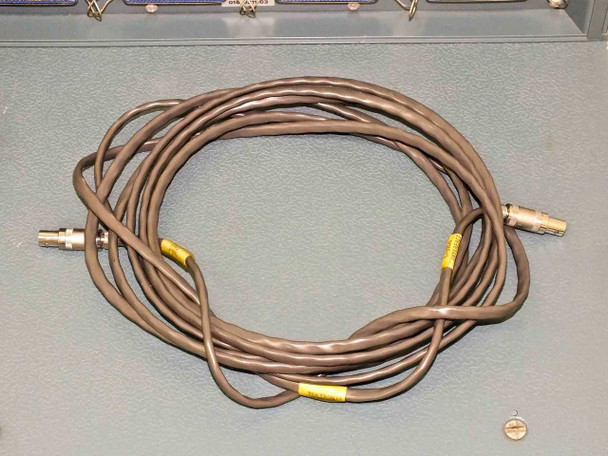

  • Coiled system cable with yellow-tagged Lemo/circular connectors on both ends — HNVS system interconnect cable laid on blue equipment chassis
  • Rear panel view of two stacked Tektronix 1140A units — showing large cooling fans, Centronics connectors, BNC output ports, transformer module, and gold finned heatsink/amplifier assembly

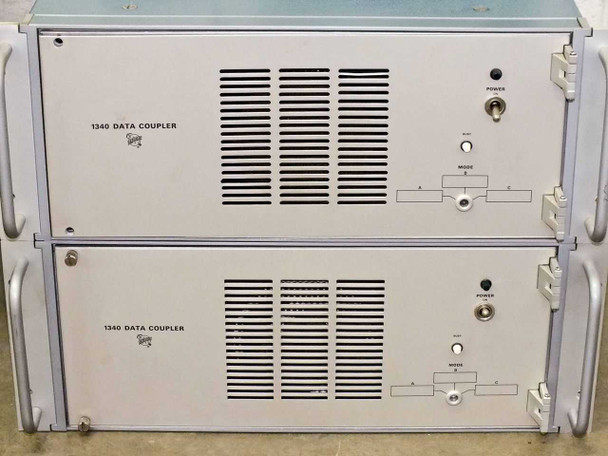

  • Two Tektronix 1340 Data Coupler units stacked — front panel view showing model label, ventilation louvers, Power toggle switch, Mode selector, and indicator LEDs

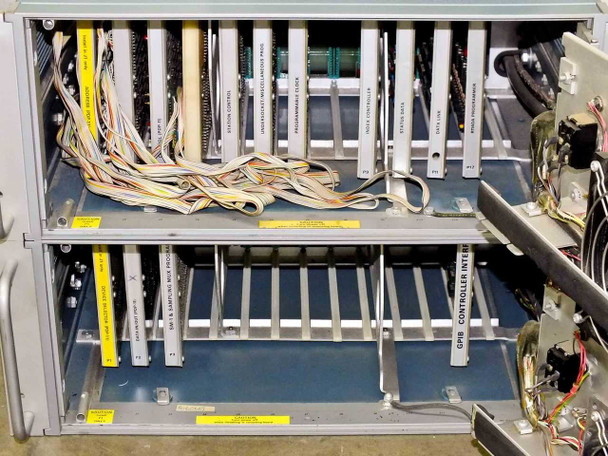

  • Interior of 1340 Data Coupler / Station Control chassis with cover open — card cage showing labeled plug-in modules including System Control, Programmer Clock, Multi-Vibrator, Pulse Controller, Data Controller, and GPIB Controller Interface cards with ribbon cable harnesses

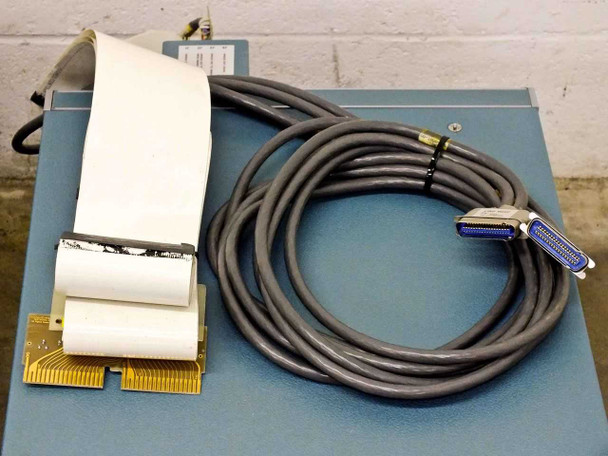

  • Cables and board accessories laid on top of blue chassis — includes flat ribbon cable assembly with gold-finger edge connector board, and a coiled cable with Centronics 50-pin connector
  • Rear panel of two stacked HNVS test system chassis — showing rows of Centronics 50-pin connectors and multi-conductor cable bundles attached to right side

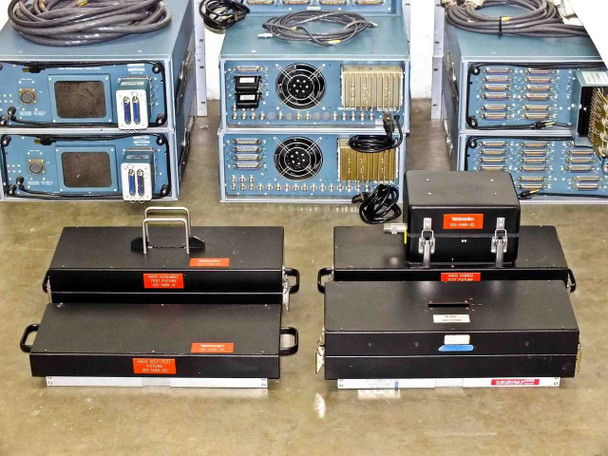

  • Four HNVS Test Fixture Assemblies and two stacked blue chassis units — top-down view of fixture trays with pin grid arrays and orange warning labels; system rear panels with BNC ports visible in background

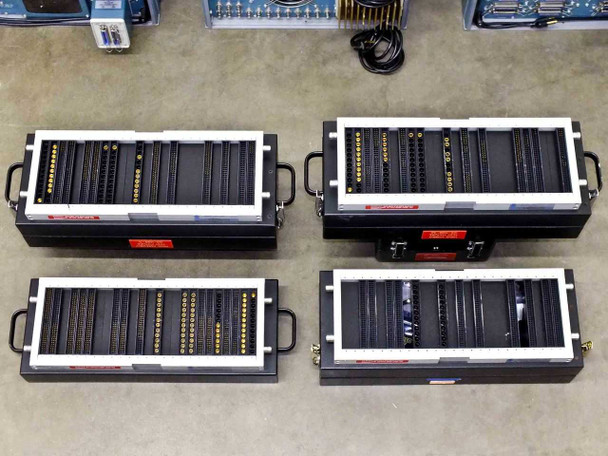

  • Four HNVS Test Fixture Assemblies laid out — top view showing all four trays with dense pin/socket grid arrays, orange hazard labels, carry handles, and connector strips

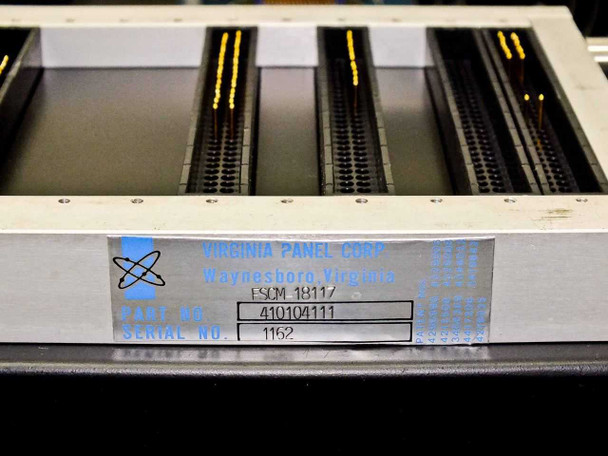

  • Virginia Panel Corp HNVS Test Fixture Assembly label close-up — label reads 'Virginia Panel Corp, Waynesboro Virginia', FSCM 18117, Part No. 410104111, Serial No. 1162
  • Tektronix 1140A Programmable Power Supply HNVS Test System w/ Accessories/Cables
  • Tektronix 1140A Programmable Power Supply HNVS Test System w/ Accessories/Cables
  • Tektronix 1140A Programmable Power Supply HNVS Test System w/ Accessories/Cables
  • Tektronix 1140A Programmable Power Supply HNVS Test System w/ Accessories/Cables
  • Tektronix 1140A Programmable Power Supply HNVS Test System w/ Accessories/Cables
  • Tektronix 1140A Programmable Power Supply HNVS Test System w/ Accessories/Cables
  • Tektronix 1140A Programmable Power Supply HNVS Test System w/ Accessories/Cables
$3,000.00
Was: $6,000.00
Current Stock: 1

Sold Out

Description

Tektronix 1140A HNVS Programmable Power Supply Test System w/ Data Coupler SM-5

Programmable power supply test system designed for automated testing of avionics and military subsystems. Operates as a station within the Tektronix HNVS Automatic Test System, providing controlled power distribution and signal switching for component and subsystem verification.

Specifications & What's Included

  • 2x Tektronix 1140A Programmable Power Supply Units
  • 2x 1340 Data Couplers (P/N 386-181-00)
  • SM-5 Signal Switcher (P/N 015-0281-00)
  • Station Control Interface (P/N 015-0211-03)
  • 2x 7-Phase Clock Generators by Applied Test Systems Inc.
  • 4x HNVS Test Fixture Assemblies by Virginia Panel Corp
  • All connecting cables and connectors (Micro-D, Centronic, BNC, military circular)
  • Power: 115V 0.8A or 230V 0.4A (SLO)

Applications

Used for HNVS automated test environments supporting avionics and military subsystem qualification. The system provided coordinated power supply, data coupling, and signal routing functions in production test cells and maintenance facilities. Typical applications included component go/no-go testing and functional verification of airborne electronics and control subsystems.

Condition: Used
This Tektronix 1140A HNVS Programmable Power Supply Test System has been inspected and is in good used condition overall. The system includes all major components: two 1140A Programmable Power Supply units, two 1340 Data Couplers, the SM-5 Signal Switcher, Station Control Interface Unit, two Applied Test Systems 7 Phase Clock Generators, four Virginia Panel Corp HNVS Test Fixture Assemblies, and the full complement of system interconnect cabling. Units show normal age-related wear consistent with prior professional use. All cables and connectors appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tektronix
Model:
1140A
MPN:
386-1710-01
Secondary Model:
1340 Data Coupler / SM-5 Signal Switcher
Type:
Programmable Power Supply HNVS Test System
SKU:
45194
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes 2x 1140A PSUs, 2x 1340 Data Couplers, SM-5 Switcher, Station Control Interface, 2x 7-Phase Clock Generators, 4x HNVS Fixture Assemblies, all cables
Form Factor:
Rackmount / Benchtop System
Includes:
Station Control Interface, Data Couplers, Signal Switcher, Clock Generators, Test Fixtures, Cables
Station Control Interface P/N:
015-0211-03
Data Coupler Model:
1340 Data Coupler
Data Coupler P/N:
386-181-00
Signal Switcher Model:
SM-5
Signal Switcher P/N:
015-0281-00
Signal Switcher Mfr P/N:
700-1928-01
Clock Generator:
7 Phase Clock Generator (x2) – Applied Test Systems Inc.
Test Fixture:
HNVS Test Fixture Assembly (x4) – Virginia Panel Corp
Test Fixture P/N:
410104111
Test Fixture Manufacturer:
Virginia Panel Corp, Waynesboro VA
SM-5 Power Requirements:
115V 0.8A SLO / 230V 0.4A SLO
Interface Connectors:
Micro-D / Centronic multi-pin, BNC, military circular
Country/Region of Manufacture:
United States
Application:
HNVS automated test, avionics/military subsystem test
Compatible With:
Tektronix HNVS Automatic Test System
Condition Notes:
Tektronix 1140A HNVS Programmable Power Supply Test System. Inspected, in good used condition. Includes 2x 1140A PSUs, 2x 1340 Data Couplers, SM-5 Switcher, Station Control Interface, 2x 7-Phase Clock Generators, 4x HNVS Fixture Assemblies, and all
