Description
Tectrol TC53S-1195 282W Sun SPARCstorage Power Supply 100-240V 300-1328
Hot-swap power supply module designed for Sun SPARCstorage Arrays. Delivers 282W maximum output with dual voltage input support for global deployment.
Specifications & What's Included
- Model: TC53S-1195 (Sun P/N 300-1328)
- Power Output: 282W Maximum
- Input Voltage: 100-127V AC / 200-240V AC, 50/60Hz
- Current Rating: 6A (100-127V) / 4A (200-240V)
- Connector: IEC C14 Input; Edge Connector Output
- Form Factor: Hot-Swap Module
- Manufactured in Canada
- Power supply only; no additional accessories included
Applications
This module serves as a redundant or replacement power supply for Sun SPARCstorage RAID and storage subsystems. SPARCstorage Arrays typically supported multiple hot-swap power supplies for continuous operation. This supply is compatible with Sun storage systems using the 300-1328 specification and was common in enterprise data centers and server environments through the late 1990s and 2000s.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

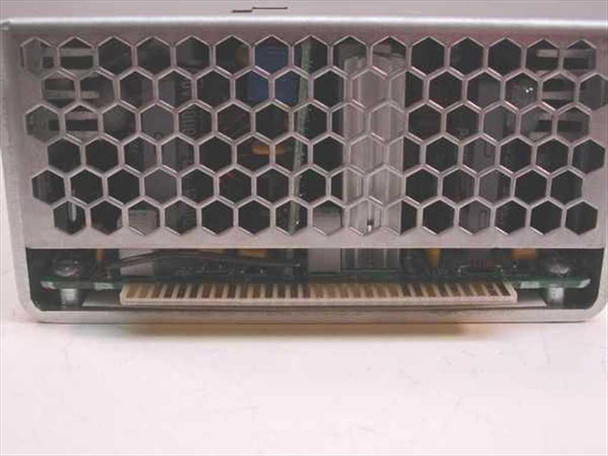

This Tectrol TC53S-1195 282W SPARCstorage Power Supply is being offered in used condition. The unit is cosmetically intact with the aluminum chassis showing light surface wear consistent with prior data-center or storage-array deployment. The rear label is clearly legible, confirming model number TC53S-1195, input ratings (100-127V~/200-240V~, 60/50Hz, 6A/4A), and 282W maximum output. The IEC C14 inlet and rear power switch appear undamaged. The edge connector on the output end shows no visible damage. Note: no condition block was present in the original listing to document whether this specific unit was bench-tested at our facility — please review internally before publishing any tested/working claim. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tectrol |
Model: |
TC53S-1195 |
MPN: |
TC53S-1195 |
SKU: |
13288 |
Condition: |
Used – Inspected |
Seller Notes: |
Power supply only; no additional accessories included. |
Compatible With: |
Sun SPARCstorage Arrays |
Compatible With 2: |
Sun P/N 300-1328 |
Form Factor: |
Hot-Swap Module |
Power Output: |
282W Maximum |
Power Requirements: |
100-127V~ / 200-240V~, 60/50Hz, 6A/4A |
Voltage Rating: |
100-127V AC / 200-240V AC |
Current Rating: |
6A (100-127V) / 4A (200-240V) |
Power Rating: |
282W |
Connector Type: |
IEC C14 Input; Edge Connector Output |
Country of Manufacture: |
Canada |
Condition Notes: |
This Tectrol TC53S-1195 282W Sun SPARCstorage Power Supply is in used condition. Chassis shows light wear from prior use. Label, IEC inlet, and edge connector appear undamaged. Please view our photos and contact us with any questions. |
