TEAC FD-235HG 193077A3-04 3.5 inch 1.44MB Internal Floppy Disk Drive A304-U5

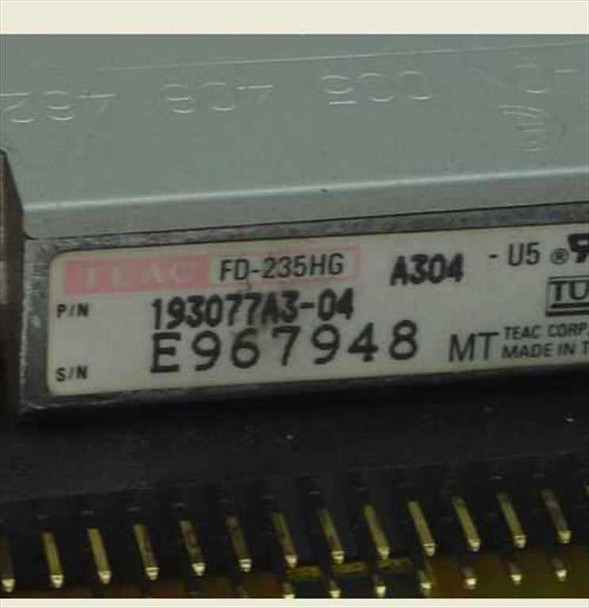

The TEAC FD-235HG is a 3.5-inch internal floppy disk drive with a 1.44MB capacity, manufactured by TEAC Corporation in Japan. It uses a standard 34-pin floppy interface and connects via a flat ribbon cable to a floppy controller, making it a direct-fit replacement in desktop PCs and compatible systems of its era. This unit carries part number 193077A3-04 and revision A304-U5 as confirmed by the label visible on the drive.
Specifications & What's Included
- Brand: TEAC Corporation
- Model: FD-235HG
- Part Number: 193077A3-04
- Revision: A304-U5
- Capacity: 1.44MB (HD), 3.5 inch form factor
- Interface: 34-pin floppy ribbon connector
- Power: Standard 4-pin floppy power connector
- Country of Manufacture: Japan (TEAC Corp.)
- Drive unit only — no ribbon cable or power cable included
Applications
The TEAC FD-235HG is a high-density 3.5-inch floppy drive from the late 1980s through 1990s era of personal computing, when 3.5-inch HD floppy drives became the standard removable storage medium for IBM-compatible PCs and workstations. TEAC was one of the most widely used OEM floppy drive suppliers of the period, and the FD-235 series appeared in countless desktop computers, industrial PCs, CNC machines, and embedded control systems. Today these drives are sought for maintaining legacy industrial equipment, vintage PC restorations, and any system that still relies on 3.5-inch floppy media for data transfer or firmware loading — a common requirement in older CNC machinery, medical equipment, and specialized instrumentation that has no direct USB upgrade path.

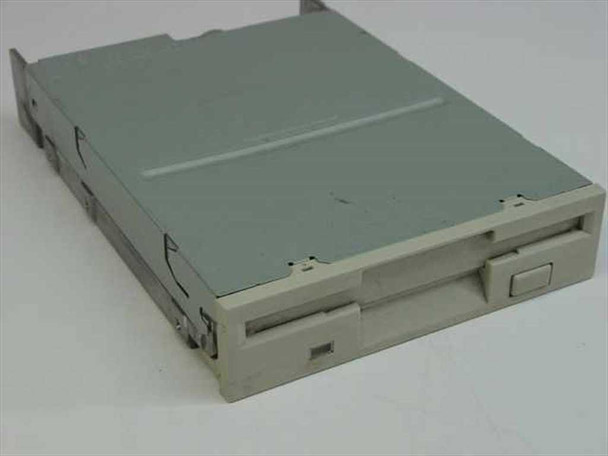

This TEAC FD-235HG 3.5" 1.44MB internal floppy drive is in good physical condition with no obvious damage to the housing, bezel, or eject mechanism. It has not been tested at our facility and is being sold as-is due to its age. The drive shows light surface wear consistent with normal use and storage. The label is intact and clearly legible, confirming model FD-235HG, P/N 193077A3-04. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
TEAC |
Model: |
FD-235HG |
MPN: |
193077A3-04 |
Secondary Model: |
A304-U5 |
Type: |
Internal Floppy Disk Drive |
SKU: |
28459 |
Storage Capacity: |
1.44MB |
Form Factor: |
3.5 inch |
Drive Bay Size: |
3.5 inch |
Interface: |
34-Pin Floppy Interface |
Condition: |
As-Is / For Parts or Not Working |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Sold as-is due to age; no testing performed. Drive only, no cables included. |
Compatible With 1: |
IBM PC, XT, AT and compatible desktop systems |
Compatible With 2: |
Legacy workstations and industrial PCs with 34-pin floppy connector |
Condition Notes: |
TEAC FD-235HG 3.5" 1.44MB floppy drive in good physical condition. Sold as-is due to age — not tested at our facility. No obvious damage. Please contact us with questions before buying. |
