TE Connectivity 1200013L2 Solar Panel Junction Box 1740220-2 Diode F1200D 200V 12A

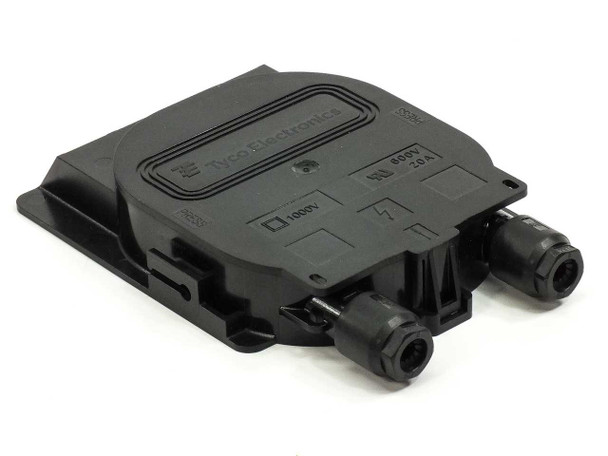

The TE Connectivity 1200013L2 is a single solar panel junction box from the Solarlok Plus series, manufactured under the Tyco Electronics brand. It incorporates a single F1200D bypass diode rated at 200V and 12A, and is designed to terminate and protect the output leads of a photovoltaic panel. The housing features a black polycarbonate enclosure with a rubber-gasketed oval lid, two cable glands for positive and negative wire entry, and an internal terminal block for panel conductor connections.
Specifications & What's Included
- Manufacturer: TE Connectivity (Tyco Electronics)
- Part Number: 1200013L2
- Secondary Part Number: 1740220-2
- Series: Solarlok Plus
- Configuration: Single junction box (1 diode)
- Bypass Diode: F1200D
- Voltage Rating: 200V
- Current Rating: 12A
- Enclosure: Black polycarbonate body with rubber-sealed oval lid
- Cable Entry: Two cable glands — negative (−) and positive (+) marked
- Internal terminals: Spring-clip terminal block for panel conductor attachment
- Condition: New and unused
Applications
Solar panel junction boxes of this type are mounted on the back of photovoltaic modules to house the bypass diode and provide a weatherproof termination point for the panel's output leads. The bypass diode protects the panel from reverse-current damage caused by shading or partial panel failure — allowing current to route around a shaded or underperforming cell string rather than dissipating as heat within it. The Solarlok Plus series is used in both crystalline silicon and thin-film PV panel manufacturing and field installation. This single-diode configuration is suited for smaller panel formats or designs requiring one bypass circuit per module. The Solarlok Plus connector system is a recognized standard in solar panel assembly lines and rooftop installation applications.
This TE Connectivity 1200013L2 Solarlok Plus Solar Panel Junction Box is new and unused. It has not been installed or put into service. The housing, lid, gasket seal, cable glands, and internal F1200D bypass diode are all present and in original factory condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
TE Connectivity |
Model: |
1200013L2 |
Secondary Model: |
1740220-2 |
MPN: |
1200013L2 |
SKU: |
50316 |
Type: |
Solar Panel Junction Box |
Series: |
Solarlok Plus |
Diode Model: |
F1200D |
Voltage Rating: |
200V |
Current Rating: |
12A |
Number of Diodes: |
1 |
Configuration: |
Single Junction Box |
Connector Type: |
Solarlok Plus |
Cable Entry: |
2 cable glands (positive and negative) |
Enclosure: |
Black polycarbonate with rubber-sealed lid |
Condition: |
New |
Seller Notes: |
New and unused. Single junction box with F1200D bypass diode installed. |
Compatible With: |
Solar PV panels requiring single-diode junction box |
Application: |
Solar photovoltaic panel bypass diode protection |
Condition Notes: |
This TE Connectivity 1200013L2 Solarlok Plus Solar Panel Junction Box is new and unused, never installed. Includes F1200D bypass diode. All components present in original condition. |
