TBA 2800 IR Receiver Module Remote Control Infrared Demodulator IC PCB BPW41

(No reviews yet) Write a Review
SKU:
32342
MPN:
2800
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

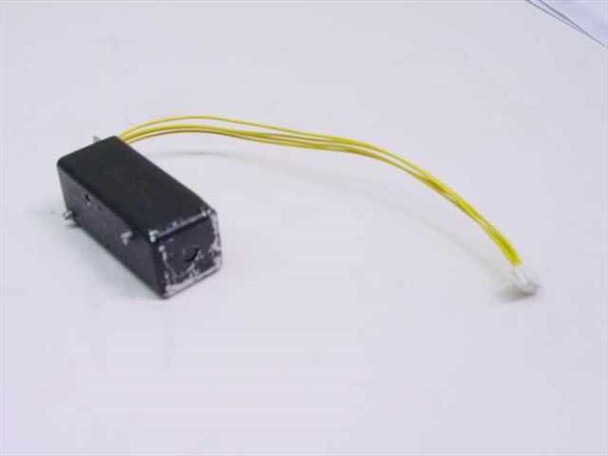

  • TBA 2800 IR receiver housing assembled with yellow wire harness connector – front view

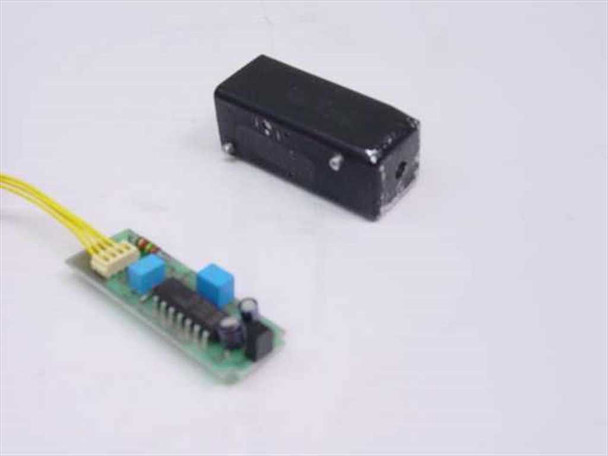

  • TBA 2800 IR receiver housing separated from PCB showing IC and blue capacitors with wire harness
  • TBA 2800 IR receiver module assembled – angled view showing PCB with DIP IC, blue capacitors, and black housing
  • Hand-drawn schematic showing pulse polarity switch diagram with NEG, POS, and N/O labels
  • TBA 2800 block diagram and application circuit schematic showing BPW41 IR diode, amplifier stages, and positive/negative pulse outputs

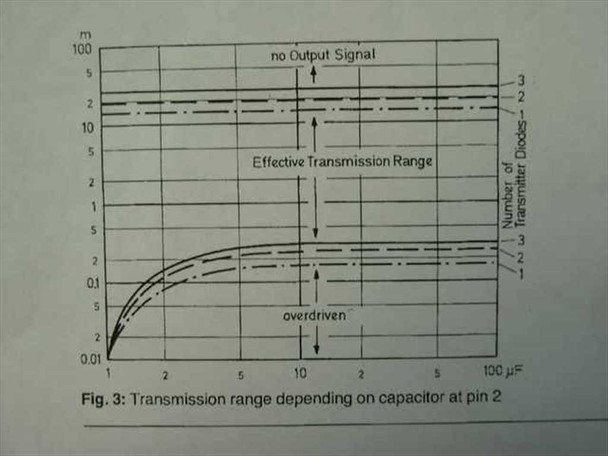

  • TBA 2800 transmission range chart showing effective transmission range vs capacitor value at pin 2 for 1–3 transmitter diodes
$18.00
Was: $40.00
Current Stock: 1

Sold Out

Description

TBA 2800 IR Receiver Module Remote Control Infrared Demodulator IC PCB BPW41

Infrared receiver module designed for remote control applications. The TBA 2800 IC demodulates IR signals received by the BPW41 photodiode and outputs selectable positive or negative pulse signals.

Specifications & What's Included

  • Model: TBA 2800 IR Receiver Module
  • Photodetector: BPW41 IR Photodiode
  • Output: Positive and Negative Pulses (selectable via PCB switch)
  • Interface: Wire harness with JST-style connector
  • Included: Receiver housing, PCB with ICs, yellow wire harness connector

Applications

The TBA 2800 was commonly used in remote control receiver circuits for consumer electronics, industrial equipment, and telecom devices from the 1980s through 2000s. These modules handled infrared signal demodulation in televisions, audio equipment, HVAC systems, and broadcast apparatus. The selectable pulse polarity accommodates different circuit requirements and legacy systems.

Condition: Used
This TBA 2800 IR Receiver Module has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The black receiver housing shows some paint wear and surface scuffing consistent with age and normal handling, as seen in the photos. The PCB is intact with no visible damage to the DIP IC, blue capacitors, or solder joints. The yellow wire harness connector is present and intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
TBA 2800
MPN:
TBA 2800
Type:
Infrared Receiver Module
SKU:
32342
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes receiver housing, PCB with ICs, and yellow wire harness connector
Form Factor:
PCB Module with Separate IR Housing
Interface Type:
Wire Harness / JST-style Connector
Output Type:
Positive and Negative Pulses
Photodetector:
BPW41 IR Photodiode
Application:
Remote Control Infrared Demodulation
Signal Type:
Infrared (IR)
Pulse Polarity:
Selectable: NEG or POS (switch on PCB)
Compatible With:
Remote control systems using TBA 2800 IR receiver IC
Condition Notes:
This TBA 2800 IR Receiver Module has been inspected and is in good used condition. Pulled from a working environment. Housing shows age-related paint wear. PCB and wire harness are intact. Please contact us with any questions.
