Description
Task International TK-823 Switching Power Supply 230W AT 115/230V 50-60Hz
A 230W AT form-factor switching power supply designed for vintage desktop computers. Features selectable 115V/230V input and standard AT Molex output connectors.
Specifications & What's Included
- Power Output: 230W
- AC Input: 115V / 230V selectable, 50-60Hz
- DC Rails: +5V 23A, +12V 9A, -5V 0.3A, -12V 0.3A
- Output: AT Molex multi-pin harness with connectors
- Form Factor: Desktop / AT
Applications
AT switching supplies were standard in desktop computers from the 1980s through early 2000s, particularly in systems from IBM, Compaq, and compatible manufacturers. This unit supports both 115V North American and 230V European/international mains, making it suitable for vintage AT-form-factor systems across multiple regions. Typical applications include restoration and operation of legacy desktop platforms that require standard AT power distribution.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

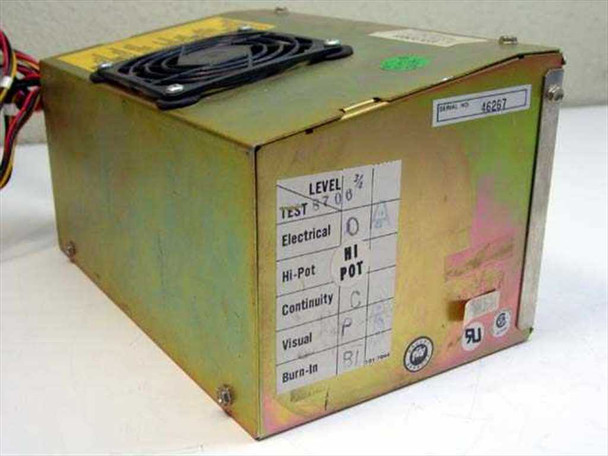

This Task International TK-823 Switching Power Supply has been inspected and is in good used condition. The metal enclosure shows the light surface oxidation and patina typical of vintage AT-era equipment, consistent with age. The cooling fan, output harness, and DC connectors are present. The AC input IEC socket and power switch are intact. A QC test label is visible on the side panel. This unit has not been powered or bench-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Task International |
Model: |
TK-823 |
MPN: |
TK-823 |
SKU: |
34748 |
Condition: |
Used – Inspected |
Seller Notes: |
Power supply only; output harness with connectors included |
Form Factor: |
Desktop / AT |
Power Supply Type: |
AT Switching Power Supply |
DC Output Power: |
230W |
AC Input Voltage: |
115V / 230V (selectable) |
AC Input Frequency: |
50-60Hz |
AC Input Current: |
5A (115V) / 3A (230V) |
DC Output Rails: |
+5V 23A, +12V 9A, -5V 0.3A, -12V 0.3A |
Output Connector Type: |
AT Molex multi-pin harness |
Voltage Select: |
Manual selector switch (115V / 230V) |
Country of Manufacture: |
Unknown |
Compatible With: |
Vintage AT-form-factor desktop computers |
Power Requirements: |
115/230V AC, 50-60Hz, 5/3A |
Condition Notes: |
Task International TK-823 Switching Power Supply inspected and in good used condition. Light surface oxidation typical of age. Output harness and connectors present. Not bench-tested. Please contact us with any questions. |
