Description
Ci Designs Ci 1000 50-Pin SCSI External Drive Enclosure SNP-7043-1 PSU
The Ci Designs Ci 1000 is a desktop external SCSI drive enclosure designed to house internal SCSI hard drives or optical drives externally, connecting to a host system via a 50-pin SCSI interface. The enclosure includes an internal SNP-7043-1 AC/DC switching power supply that provides both +5 VDC and +12 VDC rails for powering a SCSI drive. The unit has been confirmed to power on at our facility — the internal fan runs and both supply voltages are present at the 4-pin Molex connector. No drive is included.
Specifications & What's Included
- Brand: Ci Design (Ci Designs), Costa Mesa, CA, USA
- Model: Ci 1000
- Interface: 50-Pin SCSI (Centronics-50)

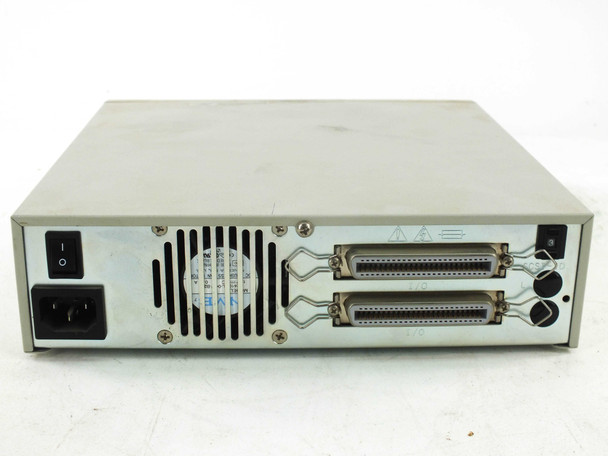

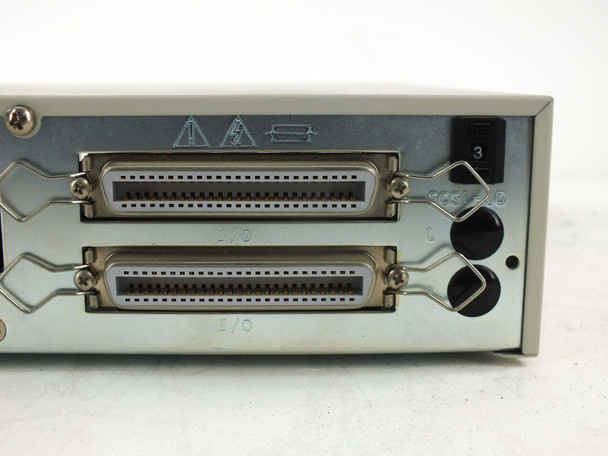

- SCSI Connectors: Two 50-pin Centronics female connectors on rear panel (daisy-chain capable), with retention wire clips
- SCSI ID Selector: Rotary ID switch on rear panel

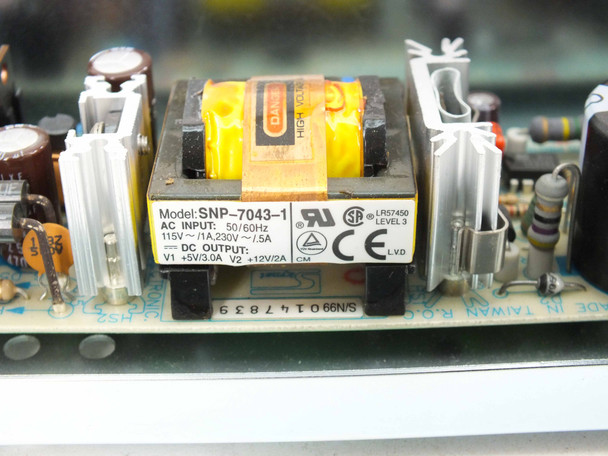

- Internal Power Supply: SNP-7043-1 AC/DC switching supply
- PSU Input: 115V AC / 1A or 230V AC / 0.5A, 50/60 Hz

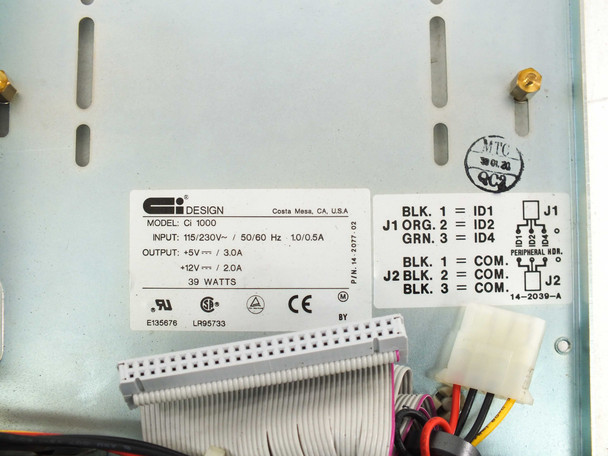

- PSU Output: +5V DC / 3.0A and +12V DC / 2.0A (39 Watts total)
- Drive Power Connector: 4-pin Molex (standard 5.25" peripheral)
- Cooling: Internal fan
- Power Switch: Rear-panel rocker (I/O)
- AC Inlet: IEC C14 (standard PC power cord)

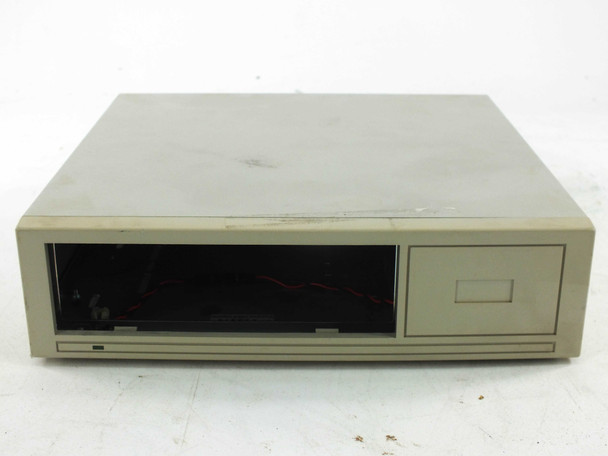

- Drive Bay: One large open bay (approximately 5.25" half-height); one smaller right-side bay
- Front Cover Plate: Not included — was removed for CD-ROM drive installation and is no longer available
- Drive: Not included — enclosure only
- Certifications: UL (E135676), CE, CSA (LR95733)
- Country of Manufacture: USA
Applications
External SCSI enclosures like the Ci 1000 were widely used from the late 1980s through the mid-1990s to expand storage on workstations, Mac systems, and PC-compatible computers equipped with SCSI host adapter cards. They allowed users to add hard drives, CD-ROM drives, tape drives, or other SCSI peripherals without opening the host computer. The 50-pin Centronics SCSI connector (also called SCSI-1 or narrow SCSI) was the dominant standard of this era, used on everything from Sun workstations to early Macintosh systems and IBM PC-compatibles running SCSI controllers. The dual rear SCSI connectors support daisy-chaining multiple devices on the same SCSI bus, a standard topology of the period. These enclosures remain useful today for anyone maintaining legacy SCSI-equipped systems, accessing older SCSI hard drives, or building a vintage computing setup.
This Ci Designs Ci 1000 50-Pin SCSI External Drive Enclosure has been inspected and powers on: the internal fan runs and both +5 VDC and +12 VDC are confirmed at the 4-pin Molex connector. The front drive cover plate is not included — it was removed at some point to accommodate a CD-ROM drive and is no longer with the unit, leaving that bay open. The enclosure shows typical wear for its age: light scuffing and grime on the top and front panels. The rear dual 50-pin SCSI Centronics connectors and IEC power inlet are intact. The SNP-7043-1 internal power supply is included and functional. No drive is included. Please note that we have had multiple units in stock and the unit shipped may vary slightly from the unit photographed, but will be functionally equivalent. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Ci Designs |
Model: |
Ci 1000 |
MPN: |
Ci 1000 |
Type: |
External SCSI Drive Enclosure |
SKU: |
28211 |
Interface: |
50-Pin SCSI |
SCSI Connector Type: |
50-Pin Centronics (x2 on rear) |
Power Supply Model: |
SNP-7043-1 |
Power Supply Input: |
115V/230V AC, 50/60 Hz |
Power Supply Output: |
+5V/3.0A, +12V/2.0A, 39W |
DC Output Connectors: |
4-Pin Molex |
Output Voltages: |
+5 VDC / +12 VDC |
Drive Bays: |
2 (one open bay, one 3.5" area) |
Form Factor: |
Desktop External Enclosure |
Cooling: |
Internal fan |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes SNP-7043-1 PSU. Front drive cover plate not included (was removed for CD drive installation). |
Condition Notes: |
Ci Designs Ci 1000 SCSI enclosure powers on — fan runs, +5V/+12V confirmed at Molex connector. Front drive cover plate not included (removed for CD drive). Light cosmetic wear. SNP-7043-1 PSU included. No drive. |
