Takasago

Takasago BWS 40-15 Bipolar Power Supply Amp 40V 15A CV CC Rackmount

(No reviews yet) Write a Review
SKU:
53356
MPN:
BWS 40-15
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
115.00 LBS
Shipping:
Calculated at Checkout
  • Takasago BWS 40-15 Bipolar Power Supply front panel view with smoked acrylic cover, angled left

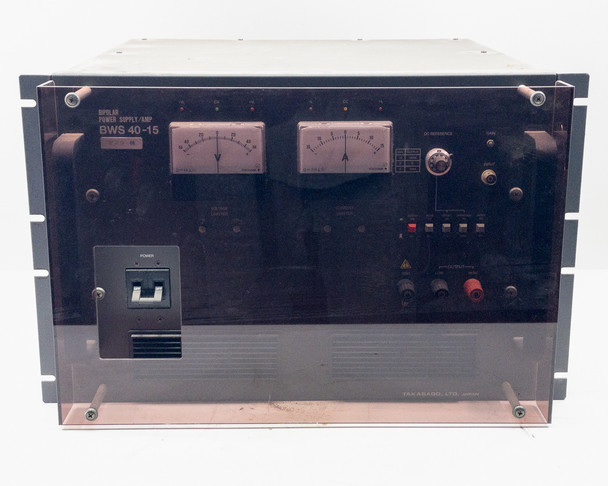

  • Takasago BWS 40-15 Bipolar Power Supply front panel straight-on view showing dual analog meters and controls
  • Takasago BWS 40-15 front panel full view showing Yokogawa voltage and current meters, control switches, and output binding posts

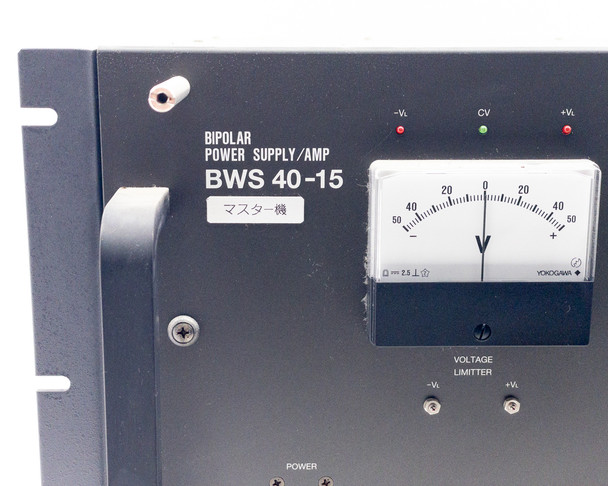

  • Close-up of Takasago BWS 40-15 front panel label reading Bipolar Power Supply/Amp with voltage meter and CV indicator LEDs

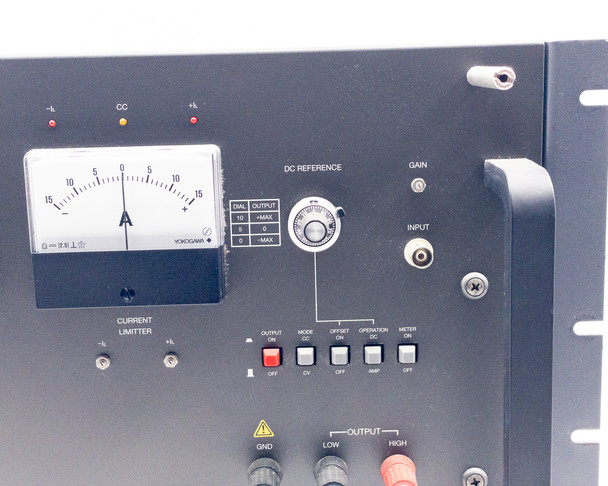

  • Close-up of Takasago BWS 40-15 right-side front panel showing current meter, DC Reference dial, Gain and Input connectors, and mode switches

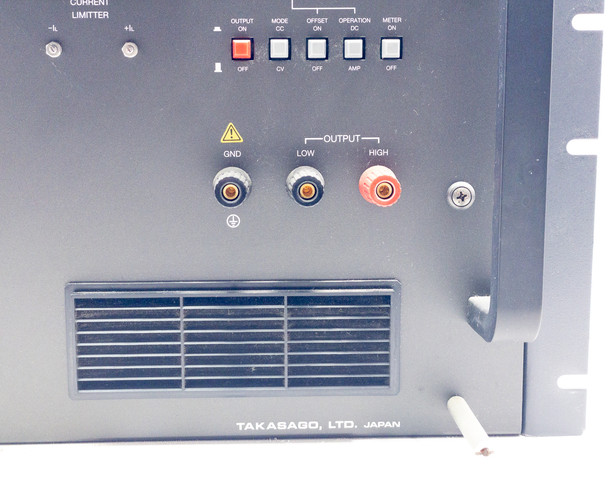

  • Close-up of Takasago BWS 40-15 lower front panel showing GND, LOW, and HIGH output binding posts and mode/offset/operation toggle switches
  • Close-up of Takasago BWS 40-15 dual Yokogawa panel meters: voltage meter ±50V range and current meter ±15A range with limiter controls

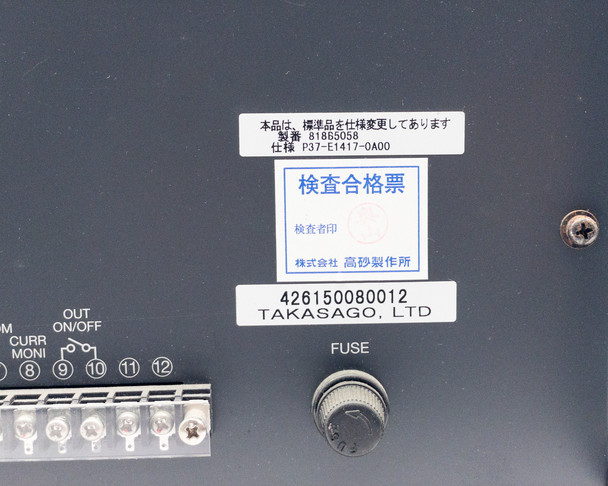

  • Takasago BWS 40-15 rear panel lower section showing inspection label, serial number barcode, fuse holder, and terminal block
  • Takasago BWS 40-15 rear panel full view showing four cooling fans, terminal blocks, and AC input voltage section

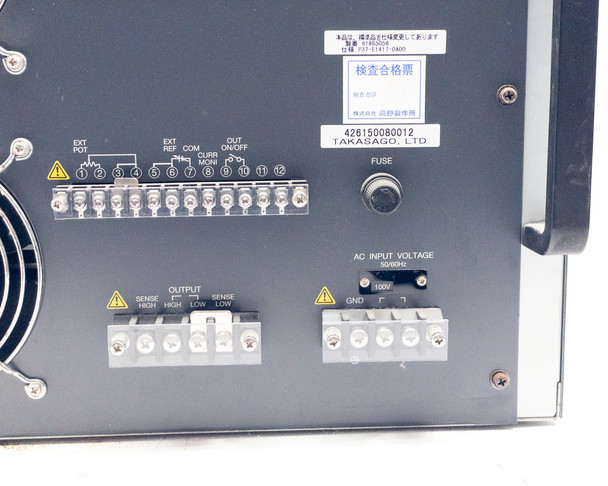

  • Takasago BWS 40-15 rear panel lower detail showing output sense terminal block, AC input voltage terminal block labeled 100V 50/60Hz, and fuse
  • Close-up of Takasago BWS 40-15 rear cooling fan (MB-MAX model) and EXT POT terminal block connections

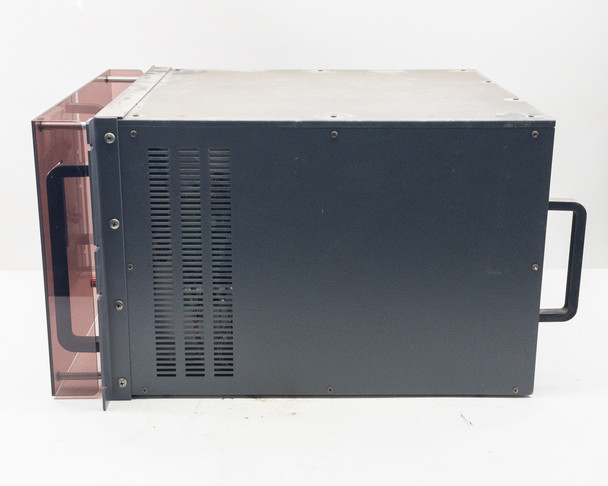

  • Takasago BWS 40-15 left side view showing ventilation slots and rack handles

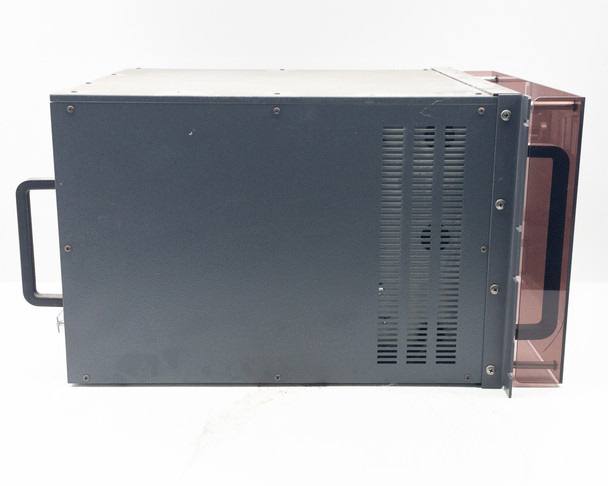

  • Takasago BWS 40-15 right side view showing ventilation slots and rack handles
$4,000.00
Was: $15,000.00
Current Stock: 4

Sold Out

Description

Takasago BWS 40-15 Bipolar Power Supply Amp 40V 15A CV CC Rackmount

Four-quadrant bipolar power supply and amplifier with ±40V and ±15A output capability. Operates in constant voltage (CV) and constant current (CC) modes with analog meter display and front-panel control interface.

Specifications & What's Included

  • Output: ±40V, ±15A bipolar
  • Modes: Constant Voltage (CV), Constant Current (CC)
  • Meters: Dual Yokogawa analog panel meters (Voltage & Current)
  • Power Input: 100V AC, 50/60Hz
  • Form Factor: Rackmount
  • Controls: Front panel DC Reference dial, Gain, Mode/Offset/Operation switches, Input BNC
  • Connections: GND/LOW/HIGH binding posts, terminal block outputs, remote sense and monitoring terminals
  • Manufactured in Japan

Applications

Suitable for precision laboratory power delivery, solar flash testing, magnetic field generation, and similar four-quadrant power applications.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Open Box
This Takasago BWS 40-15 Bipolar Power Supply/Amplifier was removed from a solar flash tester that was never put into production and has seen little to no use. The unit shows some dust accumulation from cabinet storage but is otherwise in very good cosmetic condition with no apparent damage. It has not been powered up or bench-tested at our facility. Please view our photo set and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Takasago
Model:
BWS 40-15
MPN:
BWS 40-15
SKU:
53356
Condition:
Open Box – Minimal Use
Seller Notes:
Open Box; removed from a solar flash tester never put into production
Form Factor:
Rackmount
Country of Manufacture:
Japan
Voltage Rating:
±40V
Current Rating:
±15A
Output Modes:
Constant Voltage (CV), Constant Current (CC)
Operation Type:
Four-Quadrant Bipolar
Power Requirements:
100V AC, 50/60Hz (visible on rear panel label)
Meter Type:
Dual Yokogawa analog panel meters (Voltage & Current)
Output Terminals:
GND, LOW, HIGH binding posts (front panel)
Rear Connections:
Terminal block: OUTPUT SENSE HIGH/LOW, AC INPUT VOLTAGE
Control Interface:
Front panel: DC Reference dial, Gain, Input BNC, Mode/Offset/Operation switches
Rear Aux Interface:
Terminal block: EXT POT, EXT REF COM, OUT CURR MONI, OUT ON/OFF
Application / Use Case:
Precision lab power, solar flash testing, magnetic field gen
Type:
Bipolar Power Supply and Amplifier
Condition Notes:
This Takasago BWS 40-15 Bipolar Power Supply/Amplifier was removed from a solar flash tester that was never put into production and has seen little to no use.
