Taiyo

Taiyo XY-5015 Linear Actuator 255mm Travel 200VAC 400W Yaskawa AC Servo No Cover

(No reviews yet) Write a Review
SKU:
48887
MPN:
XY-5015
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
21.00 LBS
Shipping:
Calculated at Checkout
  • Taiyo XY-5015 linear actuator full unit angled view showing ball screw, carriage, Yaskawa servo motor, and motor cables — top cover absent
  • Taiyo XY-5015 linear actuator right-side profile view showing aluminum extrusion body, carriage plate with mounting holes, and Yaskawa servo motor at rear
  • Close-up of Taiyo XY-5015 model number label on white end plate

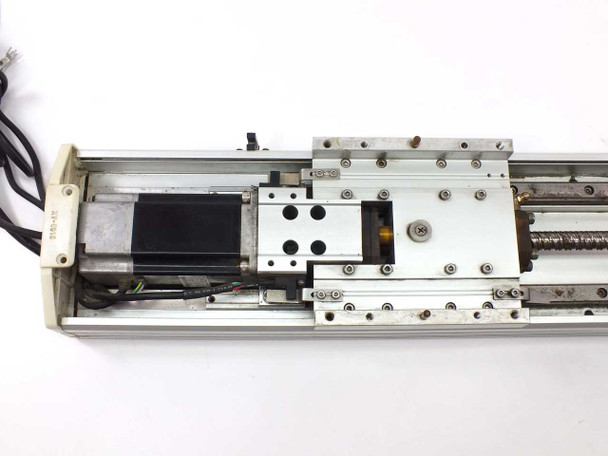

  • Taiyo XY-5015 linear actuator viewed from above without cover — showing carriage, linear guide rails, and motor cable routing
  • Taiyo XY-5015 linear actuator interior top-down view showing exposed ball screw shaft and linear guide rails with visible surface wear and debris
  • Close-up of Taiyo XY-5015 ball screw nut block, limit switch sensor bracket, and yellow polyurethane end-stop bumpers inside the actuator body
  • Taiyo XY-5015 motor cable harness laid out showing multi-conductor cables with bare spade terminals and multi-pin connector plugs
  • Close-up of Taiyo XY-5015 multi-pin connector plugs on motor harness — two white connectors with multiple pins visible
$375.00
Was: $750.00
Current Stock: 1

Sold Out

Description

Taiyo XY-5015 Linear Actuator 255mm Travel 200VAC 400W Yaskawa AC Servo No Cover

Ball screw linear actuator with integrated Yaskawa AC servo motor. Provides 255mm of linear travel for positioning and automation tasks in industrial machinery and telecom equipment.

Specifications & What's Included

  • Travel Distance: 255mm
  • Motor: Yaskawa AC Servo, 200VAC, 400W, 2.6A
  • Motor Speed: 3000 RPM
  • Torque: 1.27 Nm
  • Drive Mechanism: Ball Screw
  • Overall Dimensions: 635mm × 135mm × 175mm
  • Motor cables with multi-pin connectors included
  • No controller included

Applications

Linear actuators of this type are used in manufacturing automation, assembly line positioning, telecommunications switch infrastructure, and industrial control systems requiring precise linear motion. The Yaskawa servo motor provides consistent speed and load handling. Compatible with standard industrial automation platforms that accept AC servo motor integration. Typical use includes vertical or horizontal mounting in OEM machinery.

Condition: Used
This Taiyo XY-5015 Linear Actuator has been inspected and is in good used condition. The top cover is missing — this is noted in the title and reflected in the price. The aluminum extrusion body shows normal surface marks and light soiling consistent with prior use in an automated system. The ball screw and linear guide rails are intact and show some surface contamination from use, as visible in the photos. The Yaskawa AC servo motor and motor cable harness with multi-pin connectors are present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Taiyo
Model:
XY-5015
MPN:
XY-5015
Type:
Ball Screw Linear Actuator / Motorized Linear Slide
SKU:
48887
Travel Distance:
255 mm
Platform Dimensions:
145 mm x 135 mm
Overall Dimensions:
635 mm x 135 mm x 175 mm
Motor Brand:
Yaskawa Electric Company
Motor Type:
AC Servo Motor
Voltage Rating:
200 VAC
Power Rating:
400 Watts
Current Rating (Amps):
2.6 A
Torque:
1.27 Nm
Motor Speed:
3000 RPM
Drive Mechanism:
Ball Screw
Condition:
Used – Inspected, top cover missing
Seller Notes:
Top cover is missing. Includes motor cables with multi-pin connectors. Unit only — no controller.
Country/Region of Manufacture:
Japan
Form Factor:
Inline / Base-Mount Linear Stage
Power Requirements:
200 VAC, 400W, 2.6A
Condition Notes:
Taiyo XY-5015 Linear Actuator, used, inspected, good condition. Top cover is missing — reflected in price. Ball screw, rails, and Yaskawa servo motor present. Motor cables included. See photos.
View AllClose

Related Products

Related Products

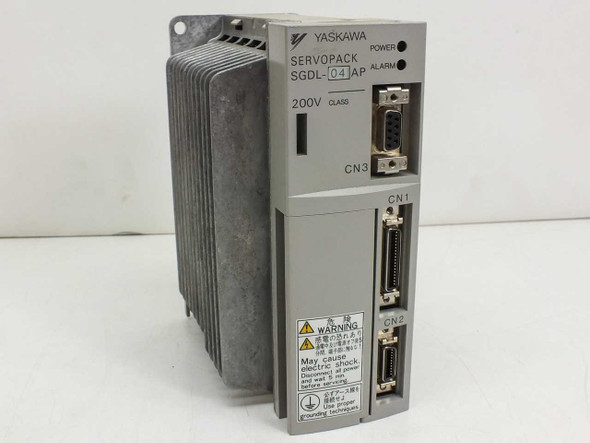

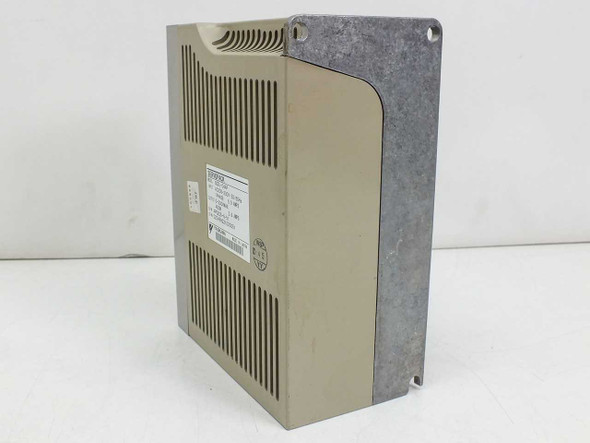

Yaskawa SGDL-04AP Servopack servo drive – front panel showing model label, 200V CLASS marking, CN3 DB9 connector, POWER and ALARM indicators Yaskawa SGDL-04AP Servopack – right side view showing ventilation fins and rating label
