Description
Sytek 2502 Broadband Network Modem RF Connector Dual RS-232 Port DC Power No PSU
The Sytek 2502 is a broadband network modem designed for use in LocalNet LAN systems. It interfaces with RF coaxial cable connections and provides dual RS-232 serial ports for device communication and control.
Specifications & What's Included
- Model: Sytek 2502 (MPN 2502)
- Interfaces: RF coaxial connector, dual DB25 RS-232 ports, 9-pin DC power connector
- Power Requirements: +5V @ 3.0A, +12V @ 0.65A, -12V @ 0.15A (25W total) — external PSU required
- Form Factor: Desktop unit
- FCC Compliance: Part 15 Class A
- Manufacture: Japan, date code 8810
- No power supply included
Applications
The Sytek 2502 was used in broadband LAN installations as a network interface device connecting to Sytek LocalNet systems. The dual RS-232 ports enable serial communication with connected equipment such as terminals, printers, and network controllers. These units were deployed in commercial and industrial network environments where broadband connectivity and serial device management were required.
Condition: Used

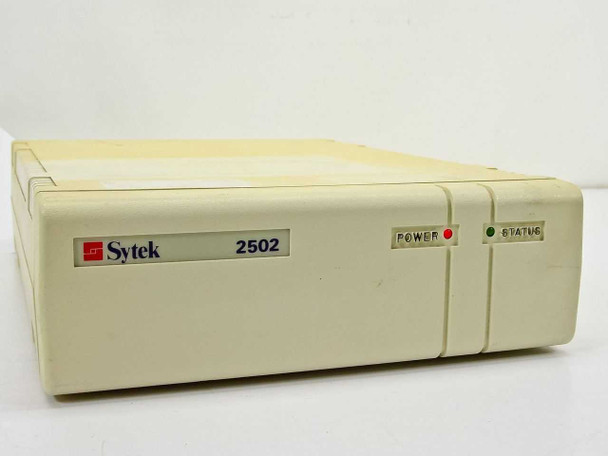

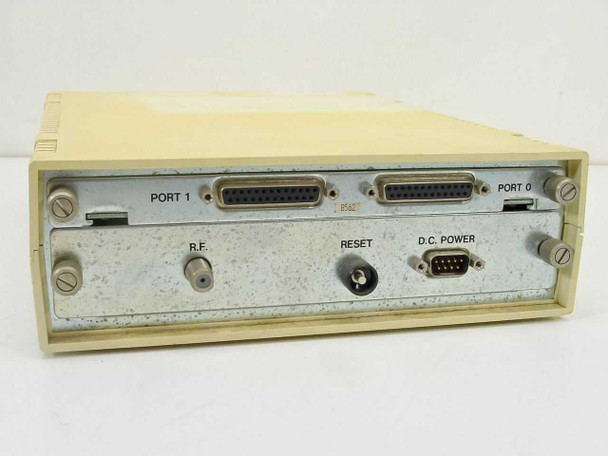

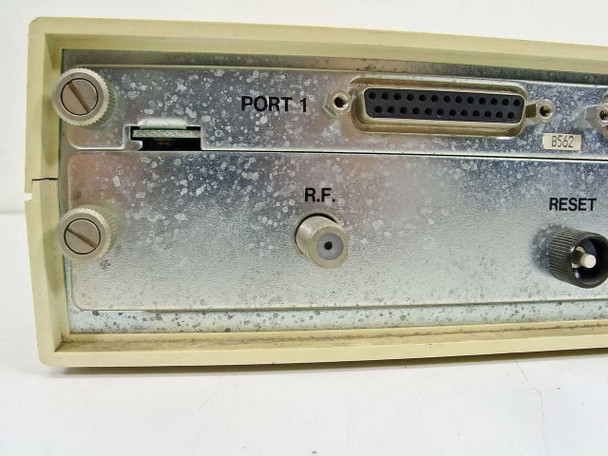

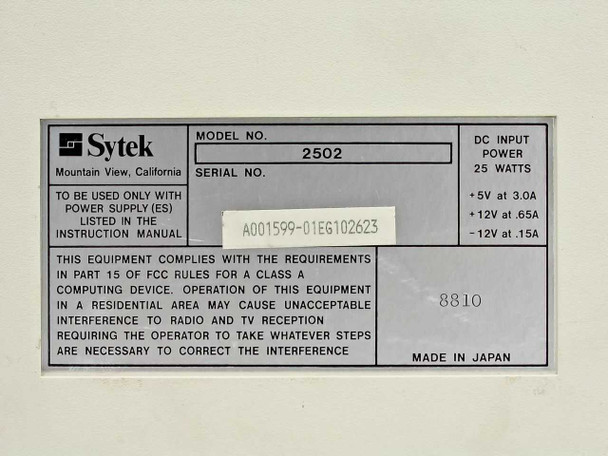

This Sytek 2502 broadband network modem has been inspected and appears to be in good used condition. The chassis shows the light yellowing and surface wear typical of equipment from this era. The rear panel shows some oxidation on the metal plate around the connectors, but all ports — Port 0 and Port 1 (DB25), the RF coaxial connector, the Reset button, and the 9-pin DC power connector — appear intact and undamaged. The front-panel Power and Status indicator LEDs are visible and the lens covers are present. No power supply is included — the unit requires an external DC supply per the specifications on the bottom label (+5V at 3.0A, +12V at 0.65A, -12V at 0.15A, 25W total). Please view our photo set and contact us if you have any questions.
This Sytek 2502 broadband network modem has been inspected and appears to be in good used condition. The chassis shows the light yellowing and surface wear typical of equipment from this era. The rear panel shows some oxidation on the metal plate around the connectors, but all ports — Port 0 and Port 1 (DB25), the RF coaxial connector, the Reset button, and the 9-pin DC power connector — appear intact and undamaged. The front-panel Power and Status indicator LEDs are visible and the lens covers are present. No power supply is included — the unit requires an external DC supply per the specifications on the bottom label (+5V at 3.0A, +12V at 0.65A, -12V at 0.15A, 25W total). Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Sytek |
Model: |
2502 |
MPN: |
2502 |
Type: |
Broadband Network Modem |
SKU: |
8462 |
Seller Notes: |
No power supply included. PSU required for operation — see label for DC input specs. |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Desktop |
Power Requirements: |
|
Interface Type: |
RF (Coaxial), RS-232 |
Number of Ports: |
2 (Port 0, Port 1 — RS-232 via DB25) |
Connector Type: |
RF coaxial, DB25 (x2), 9-pin DC power connector |
DC Input Power: |
25 Watts |
Compatible With: |
Sytek LocalNet broadband LAN systems |
FCC Compliance: |
FCC Part 15 Class A |
Date Code: |
8810 |
Condition Notes: |
Sytek 2502 broadband network modem in good used condition. Chassis shows age-related yellowing and light wear; rear panel has some oxidation. All ports intact. No PSU included — external DC supply required (25W, +5V/+12V/-12V). |
Condition: |
Used – Pulled from Working Environment |
