Description

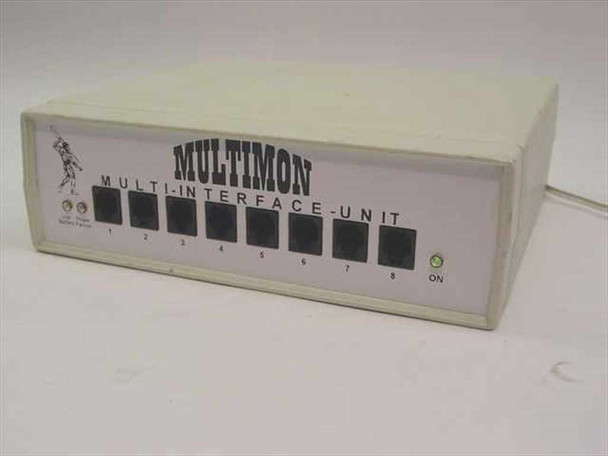

Systems Enhancement Corporation Multimon 8-Port Multi-Interface Unit UPS Server
The Multimon is an 8-port multi-interface unit that connects a single UPS to multiple servers across mixed operating system environments. It distributes UPS status and power management signals via DB9 serial connection and provides server communication through eight RJ-style front panel ports.
Specifications & What's Included
- 8 server ports with RJ-style interfaces
- UPS connection via DB9 serial (RS-232)
- 6-pin header bridging connector
- Status indicators: Power ON, Low Battery, Power Failure, Battery Failure LEDs
- Desktop form factor: 8" W x 7" D x 2.5" H
- Includes external power adapter
- U.S. manufactured
Applications
This unit type was used in server environments requiring centralized UPS monitoring across heterogeneous systems. It functions as a hub for distributing power management notifications from a single UPS to multiple servers simultaneously, allowing coordinated shutdown procedures. Commonly deployed in mixed-platform data centers and server rooms running various operating systems on shared power infrastructure.
This Systems Enhancement Corporation Multimon 8-Port Multi-Interface Unit has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The unit powers on. The housing shows light surface wear consistent with normal use, and the front panel ports and indicators are intact and undamaged. The external power adapter is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Systems Enhancement Corporation |
Model: |
Multimon |
MPN: |
Multimon |
Type: |
UPS Multi-Interface Unit |
SKU: |
21213 |
Number of Ports: |
8 |
UPS Connection: |
DB9 Serial (RS-232) |
Bridging Connector: |
6-pin header |
Server Ports: |
8 x RJ-style interface ports (front panel) |
Form Factor: |
Desktop |
Dimensions: |
8" W x 7" D x 2.5" H |
Country/Region of Manufacture: |
United States |
Compatible With: |
Multiple servers, mixed OS environments with single UPS |
Indicators: |
Low Battery, Power, Battery Failure LEDs; Power ON LED |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes external power adapter. Powers on. |
Condition Notes: |
Systems Enhancement Multimon 8-Port Multi-Interface Unit. Inspected, in good condition. Powers on. Pulled from a working environment. Includes power adapter. Normal cosmetic wear. |
