System Sensor SSV120-8 Fire Alarm Bell 8in Gong 120VAC 0.047A 60Hz UL FM Red

System Sensor SSV120-8 Fire Alarm Bell 8in Gong 120VAC 0.047A 60Hz UL FM Red

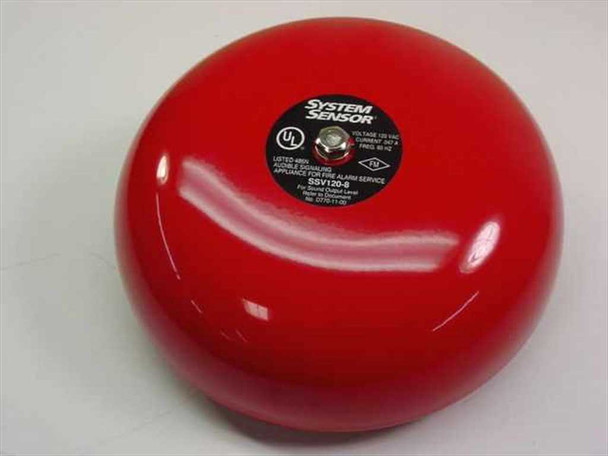

The System Sensor SSV120-8 is an 8-inch red fire alarm bell designed for audible signaling in fire alarm systems. It operates on 120 VAC at 60 Hz and draws 0.047 A, making it suitable for direct connection to 120VAC notification appliance circuits. The bell is UL Listed (486N) and FM Listed as an audible signaling appliance for fire alarm service.

Specifications & What's Included

• Model: SSV120-8
• Manufacturer: System Sensor
• Gong diameter: 8 inches
• Color: Red
• Voltage: 120 VAC
• Current draw: 0.047 A
• Frequency: 60 Hz
• UL Listed 486N — Audible Signaling Appliance for Fire Alarm Service
• FM Listed
• Sound output reference: Document No. D770-11-00
• Mounting plate with lead wires (red and black)
• Includes: mounting hardware bag with screws and fasteners
• Original cardboard box included

Applications

Fire alarm bells like the SSV120-8 are standard audible notification appliances used in commercial and industrial fire alarm systems. They are typically installed in schools, warehouses, manufacturing facilities, and commercial buildings where a loud, recognizable audible alarm signal is required. The 8-inch gong size and 120 VAC operation make this bell compatible with conventional and addressable fire alarm control panels that provide 120VAC notification outputs. UL and FM listings are required by most local fire codes and the NFPA 72 National Fire Alarm and Signaling Code for use in life-safety applications. System Sensor, a division of Honeywell, is one of the leading manufacturers of fire alarm notification appliances and detection devices in North America.
