Sysmex PT-043 Power Transformer Hematology Analyzer TAM 9316046 Japan
The Sysmex PT-043 is a multi-winding power transformer manufactured by Sysmex in Japan for use in their hematology analyzer systems. It steps and distributes AC line voltage to the multiple internal circuits within the analyzer, providing the various DC rail voltages needed by the instrument's subsystems. The unit is built in a steel chassis-mount open-frame configuration with a copper-wound laminated core and attaches via a wire harness directly to the analyzer's internal power distribution board.
Specifications & What's Included
- Manufacturer: Sysmex
- Model / Part Number: PT-043
- Date Code: 9316046
- Origin Code: TAM
- Country of Manufacture: Japan
- Type: Multi-tap power transformer, chassis-mount open frame

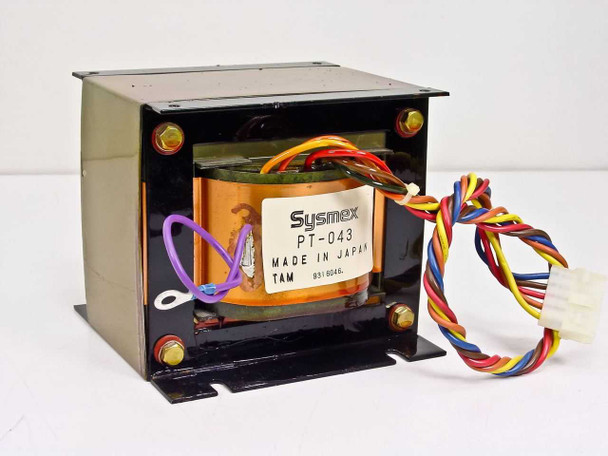

- Core: Copper-wound laminated core (visible in photos)

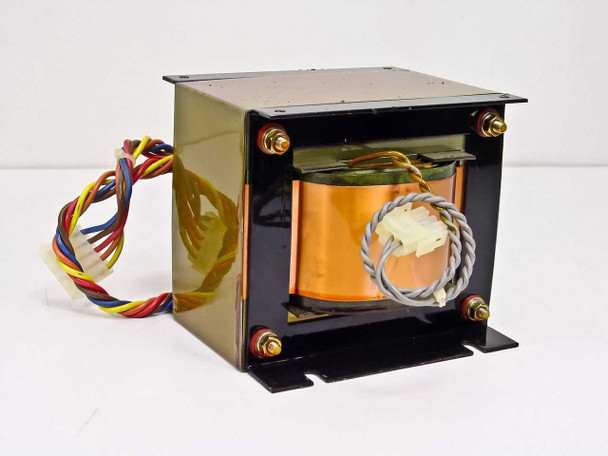

- Frame: Steel chassis with four corner mounting feet/brackets
- Output: Multi-lead wire harness with multiple colored wires (red, yellow, blue, brown, gray, orange/white)

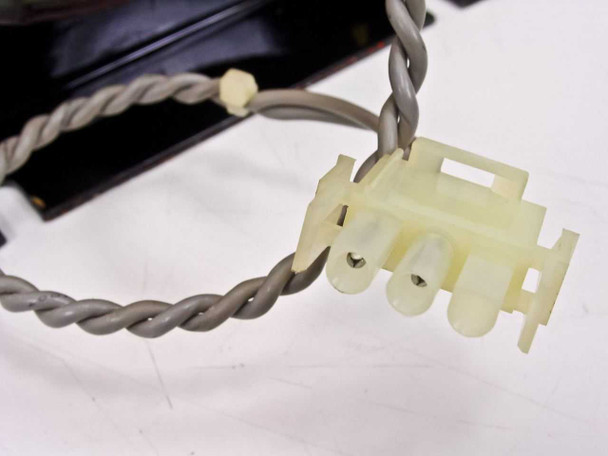

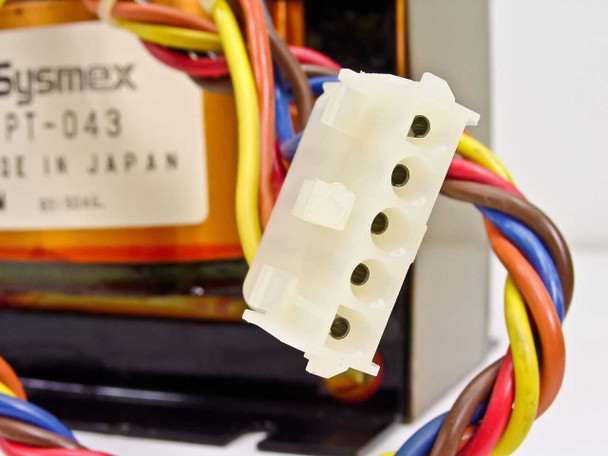

- Output Connectors: Two molex-style multi-pin connectors on secondary leads (one larger inline connector, one smaller connector on twisted-pair gray lead)
- Compatible With: Sysmex hematology analyzer systems
Applications
The Sysmex PT-043 is an OEM internal power transformer designed specifically for Sysmex automated hematology analyzers — instruments used in clinical laboratories to perform complete blood count (CBC) analysis, differentiating blood cell types for diagnostic purposes. Sysmex is a Japanese manufacturer of in-vitro diagnostic equipment, and their hematology analyzers have been a standard fixture in hospital and clinical lab settings since the 1980s. Power transformers like the PT-043 are key service and repair parts for facilities maintaining aging Sysmex analyzer platforms, as a failed transformer can disable the entire instrument. This type of part is typically sought by biomedical equipment technicians (BMETs) and clinical engineering departments performing in-house repairs rather than replacing the full analyzer.
This Sysmex PT-043 power transformer has been inspected and is in good used condition. It was pulled from a working Sysmex hematology analyzer where it was in active use. The copper winding core and steel chassis frame look clean and intact. The multi-lead wire harness is present and the molex-style output connectors show no visible damage. There is minor wear to the label consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sysmex |
Model: |
PT-043 |
MPN: |
PT-043 |
Secondary Model: |
9316046 |
Type: |
Power Transformer |
SKU: |
41628 |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
Japan |
Compatible With: |
Sysmex Hematology Analyzer |
Winding Configuration: |
Multi-tap / Multi-lead |
Output Connector: |
Molex-style multi-pin connector (secondary) |
Date Code: |
9316046 |
Application: |
Medical / Diagnostic Analyzer |
Form Factor: |
Open Frame / Chassis Mount |
Seller Notes: |
Includes attached multi-lead wire harness with two molex-style output connectors |
Condition Notes: |
Sysmex PT-043 power transformer in good used condition. Pulled from a working Sysmex hematology analyzer. Copper core and chassis are clean and intact. Wire harness and connectors present with no visible damage. |
