Sysgen 5600 30-02130 8-Bit ISA Tape Data Separator Controller Card 50-Pin

(No reviews yet) Write a Review
SKU:
41214
MPN:
30-02130
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Sysgen 5600 30-02130 ISA Tape Data Separator Controller card – top component side showing main CF61820FN controller chip and ISA edge connector
  • Sysgen 5600 30-02130 ISA Tape Data Separator Controller card – solder side showing 50-pin DB-style bracket connector and component layout

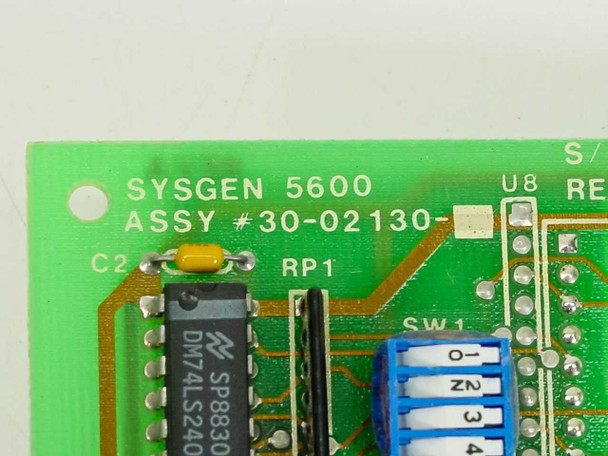

  • Close-up of Sysgen 5600 PCB silkscreen showing ASSY 30-02130 label, DM74LS240 IC, and DIP switch SW1

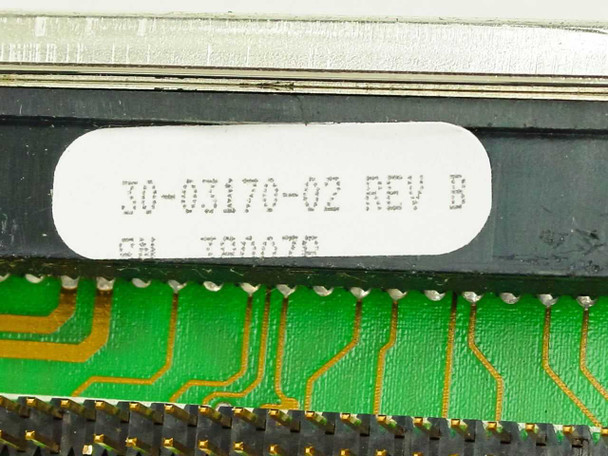

  • Close-up of sticker label on card edge reading 30-03170-02 REV B with serial number
  • Close-up of PCB silkscreen reading SYSGEN INC TAPE DATA SEPARATOR with DM74S51N and SP8824 ICs visible
  • Close-up of PCB showing ASSY 30-03100-02 silkscreen, 74F02 logic IC, and blank REV and S/N label fields
  • Angled front view of Sysgen 5600 ISA Tape Data Separator Controller showing 50-pin bracket connector and card profile
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Sysgen 5600 30-02130 8-Bit ISA Tape Data Separator Controller Card 50-Pin

This is a tape data separator controller card designed for the Sysgen 5600 tape drive system. The card interfaces with the host computer via 8-bit ISA bus and manages data separation and control functions for tape operations.

Specifications & What's Included

  • Brand: Sysgen | Model: 5600 | MPN: 30-02130
  • Bus Interface: 8-Bit ISA | Form Factor: Half-Length ISA Card
  • Connector Type: 50-Pin | Revision: Rev B
  • Main Controller Chip: CF61820FN (dated 8839)
  • Manufactured: USA
  • Card only; no drive or cables included

Applications

This controller card was used in legacy tape backup and archival systems built around the Sysgen 5600 platform. It handles the separation and timing of data signals from magnetic tape media, allowing proper reading and writing of tape cartridges. The card integrates into 8-bit ISA-based systems typical of 1980s and early 1990s computer hardware. Replacement parts for these systems are increasingly scarce.

Condition: Used
The Sysgen 5600 30-02130 8-Bit ISA Tape Data Separator Controller Card is in good used condition with normal cosmetic wear consistent with its age as a legacy ISA expansion card. The PCB is clean and green with no visible cracks, burns, or broken traces, and the 50-pin bracket connector remains intact. This card is a functional vintage component suitable for restoration projects, retro computing builds, or archival systems requiring tape data separation capabilities.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sysgen
Model:
5600
MPN:
30-02130
Secondary Model:
30-03170-02 REV B
Assembly Number:
30-03100-02
Type:
Tape Data Separator Controller Card
Bus Interface:
8-Bit ISA
Connector Type:
50-Pin
Form Factor:
Half-Length ISA Card
Revision:
Rev B
Main Controller Chip:
CF61820FN (dated 8839)
Compatible With:
Sysgen 5600 Tape Drive Systems
Country/Region of Manufacture:
USA
SKU:
41214
Condition:
Used – Sold As-Is
Seller Notes:
Card only; sold as-is due to age. No drive or cables included.
Condition Notes:
The Sysgen 5600 30-02130 8-Bit ISA Tape Data Separator Controller Card is in good used condition with normal cosmetic wear consistent with its age as a legacy ISA expansion card.
View AllClose

Related Products

Related Products

Sysgen PST100 30-02454-02 ISA tape adapter card – top component side view showing green PCB and blue end brackets Sysgen PST100 30-02454-02 ISA tape adapter card – reverse PCB side showing ISA edge connector and solder traces
Add to Cart
Quick view

Sysgen PST100 30-02454-02 Tape Adapter Card ISA SCSI Tape Data Separator Rev B

Sysgen

$30.00
Was: $60.00
Sysgen PST100 30-02454-02 Tape Adapter Card ISA SCSI Tape Data Separator Rev B ISA expansion card designed to interface SCSI tape drives with host systems. The onboard tape data separator processes...
41215
SKU:
41215
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Brand:
Sysgen
Model:
PST100
MPN:
30-02454-02
Secondary MPN:
30-03100-02
Type:
Tape Adapter Card
SKU:
41215
Revision:
Rev B
Interface:
ISA
Form Factor:
ISA Expansion Card
Features:
Onboard Tape Data Separator
Connector Type:
DB50 / 50-pin D-sub (visible on bracket)
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Condition Notes:
This Sysgen PST100 ISA Tape Adapter Card (part number 30-02454-02, Rev B) has been inspected and is in good used condition. The PCB shows normal shelf wear consistent with prior installation and storage, but no cracks, broken traces, or damaged

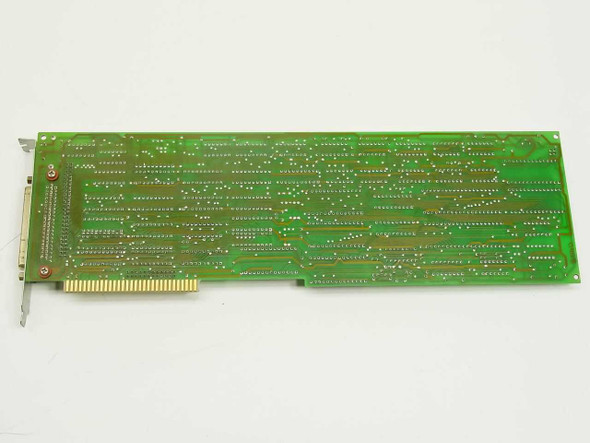

Everex EV-830 8-bit ISA tape controller card – full top view showing component side and ISA edge connector Everex EV-830 8-bit ISA tape controller card – solder side view showing PCB traces and 50-pin bracket connector
Add to Cart
Quick view

Everex EV-830 8-Bit ISA Tape Controller Card 50-Pin Vintage Long Board

Everex

$30.00
Was: $50.00
Everex EV-830 8-Bit ISA Tape Controller Card 50-Pin Vintage Long Board This is a tape controller card designed for legacy computer systems using the 8-bit ISA bus architecture. It manages data...
12815
SKU:
12815
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Everex
Model:
EV-830
MPN:
EV-830
Type:
8-Bit ISA Tape Controller Card
SKU:
12815
Bus Interface:
8-Bit ISA
Form Factor:
Long ISA Card
Connector Type:
50-Pin
Compatible With:
IBM PC, PC/XT, and ISA-bus compatible systems
Seller Notes:
Card only, no cables or accessories included.
Country/Region of Manufacture:
Malaysia
Condition:
Used – Inspected
Condition Notes:
This Everex EV-830 8-Bit ISA Tape Controller Card has been inspected and appears to be in good used condition overall. The PCB is clean with no visible cracked traces, burned components, or obvious physical damage.
Mountain 05-30466-02 8-Bit ISA Tape Controller Card – top component side showing full board layout with ISA edge connector and DB25 bracket connector Mountain 05-30466-02 ISA Tape Controller Card – angled view showing DB25 connector bracket, Moxcon chip, and component side detail
Add to Cart
Quick view

Mountain 05-30466-02 Rev D 8-Bit ISA Tape Controller Card DB25 Parallel

Mountain

$25.00
Was: $50.00
Mountain 05-30466-02 Rev D 8-Bit ISA Tape Controller Card DB25 Parallel An 8-bit ISA tape controller card designed to manage tape drive operations in legacy computer systems. This full-length ISA...
19269
SKU:
19269
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
Mountain Computer
Model:
05-30466-02
MPN:
05-30466-02
Type:
8-Bit ISA Tape Controller Card
SKU:
19269
Revision:
Rev D
Bus Interface:
ISA (8-bit)
Connector Type:
DB25 (25-pin female)
Form Factor:
Full-Length ISA Card
Condition:
Used – Pulled from Working Environment
Compatible With:
IBM PC/XT/AT and ISA-bus compatible systems
Seller Notes:
Card only; no cables or brackets included
Country/Region of Manufacture:
United States
Condition Notes:
Mountain 05-30466-02 8-Bit ISA Tape Controller Card, Rev D. Inspected and in good condition; pulled from a working environment where it was in active use. Board is clean with no visible damage. DB25 and ISA edge connector intact.

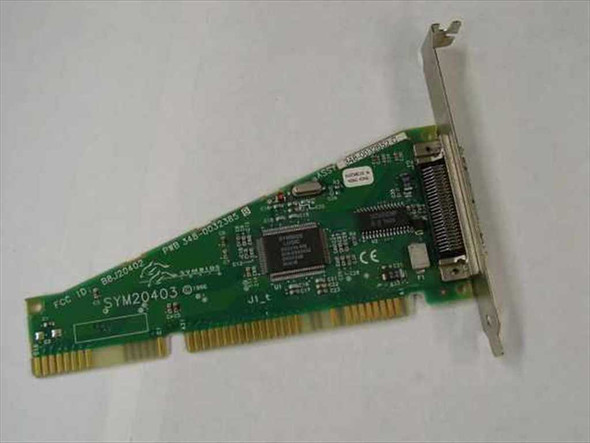

Symbios Logic SYM20403 16-bit ISA SCSI controller card – angled top view showing PCB, 50-pin bracket connector, and ISA edge connector Symbios Logic 53C416-NB SCSI controller chip close-up with part number 609-0392452 and 'Assembled in Hong Kong' label visible
