Symyx Technologies S14100 Crystallizer CE Robot Crystallization Workstation 208V

(No reviews yet) Write a Review
SKU:
45337
MPN:
Crystallizer CE
Condition:
Used
Availability:
Usually ships within 5-10 business days — please contact us to arrange freight shipping for this large-format laboratory instrument.
Weight:
2,295.00 LBS
Shipping:
Calculated at Checkout

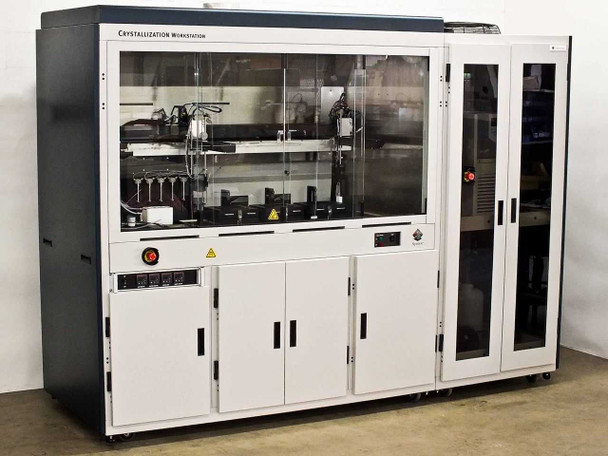

  • Symyx Technologies S14100 Crystallizer CE robotic crystallization workstation – full front three-quarter view showing main cabinet and side storage cabinet

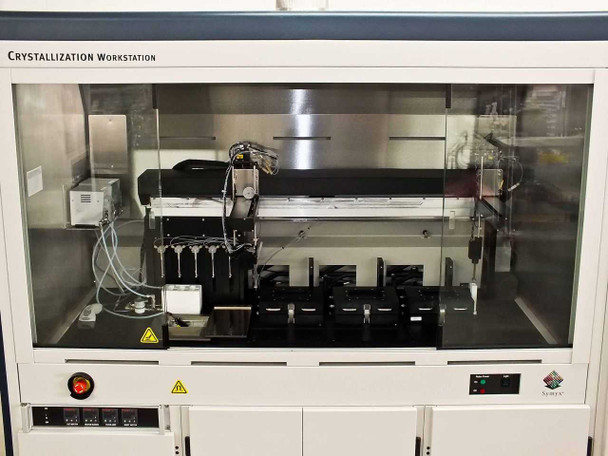

  • Symyx Technologies S14100 Crystallizer CE – front view with enclosure glass showing robotic arm and fluid delivery components inside

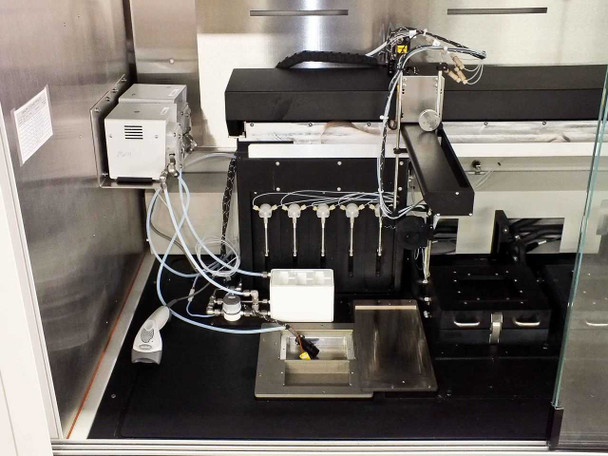

  • Symyx Technologies S14100 Crystallizer CE – interior close-up showing robotic arm assembly, Kloehn fluid delivery system, and tray positions

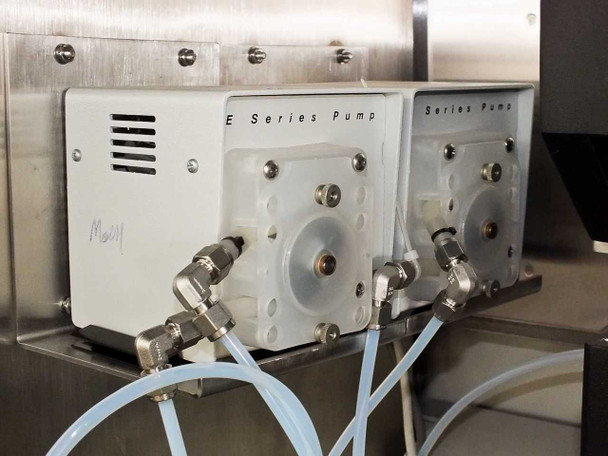

  • Symyx Technologies S14100 – close-up of two Monostat E-Series peristaltic pumps with tubing connections inside enclosure

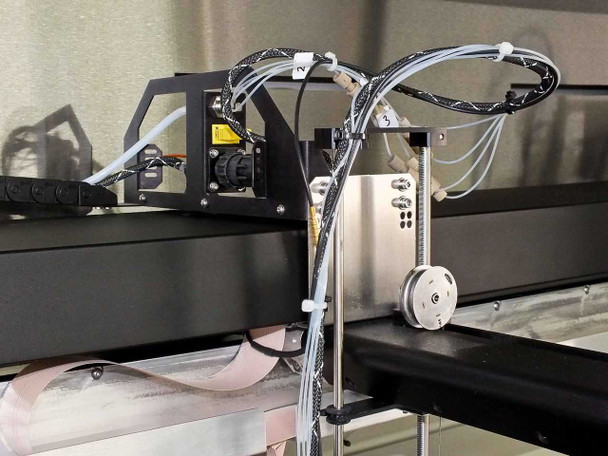

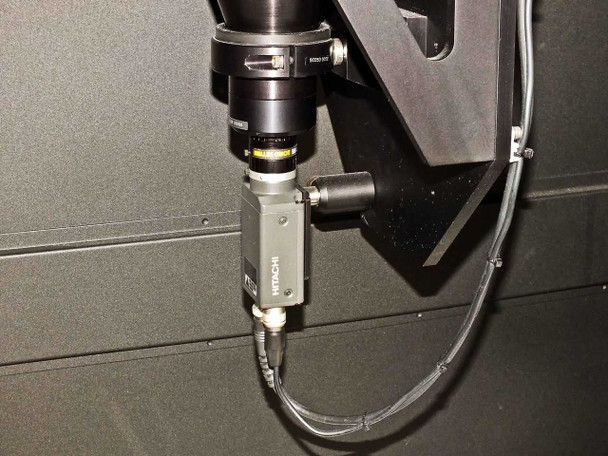

  • Symyx Technologies S14100 – close-up of robotic Z-axis arm assembly with Hitachi CCD camera, drive motor, and fluid tubing bundle

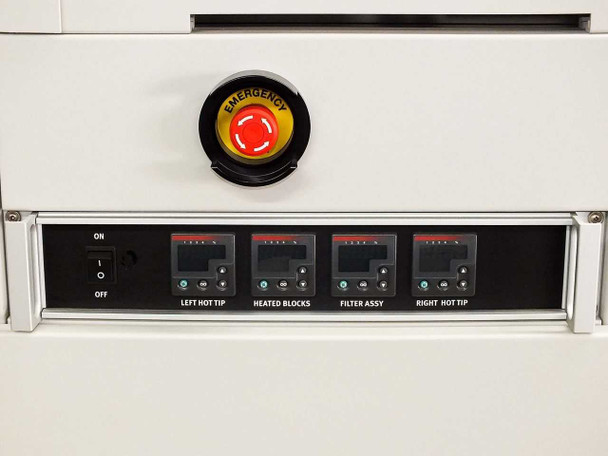

  • Symyx Technologies S14100 Crystallizer CE – front panel lower section showing emergency stop button and indicator lights

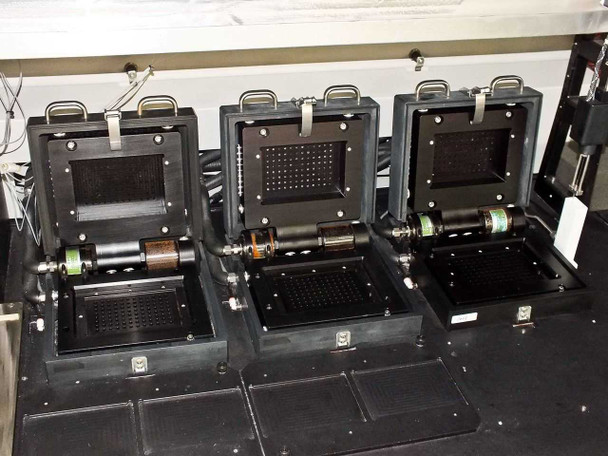

  • Symyx Technologies S14100 – interior overhead view of robotic XY stage and sample tray positions

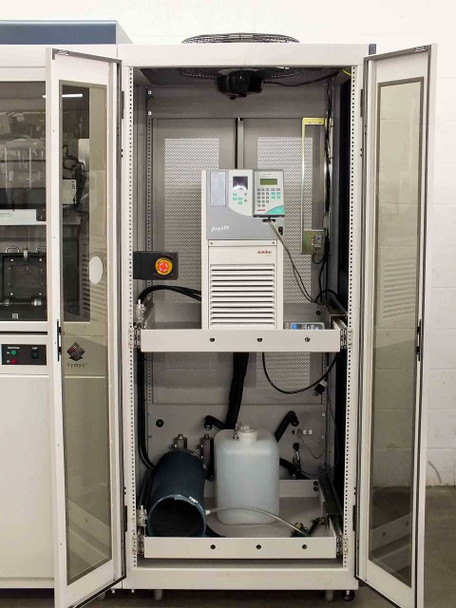

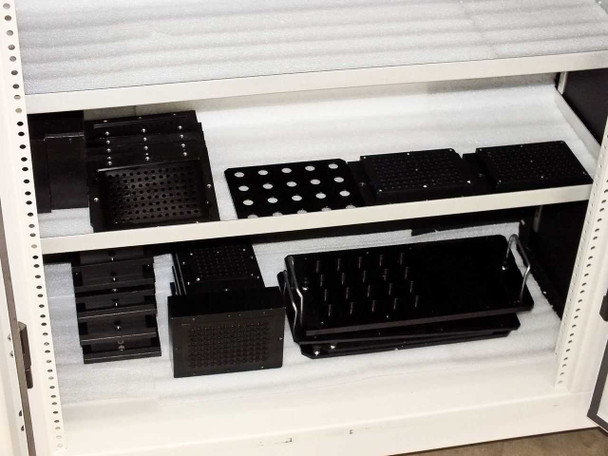

  • Symyx Technologies S14100 – right-side storage cabinet interior with door open showing shelving

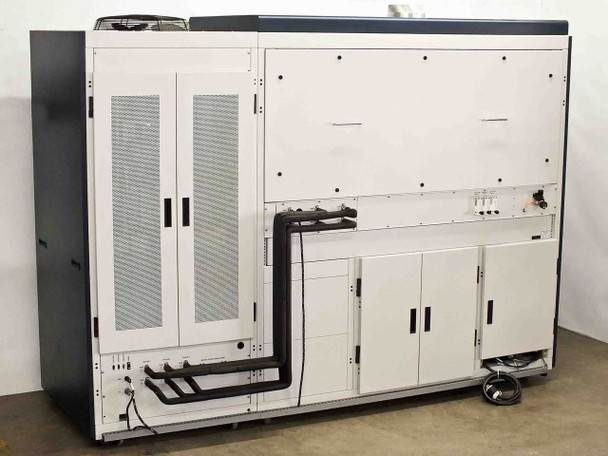

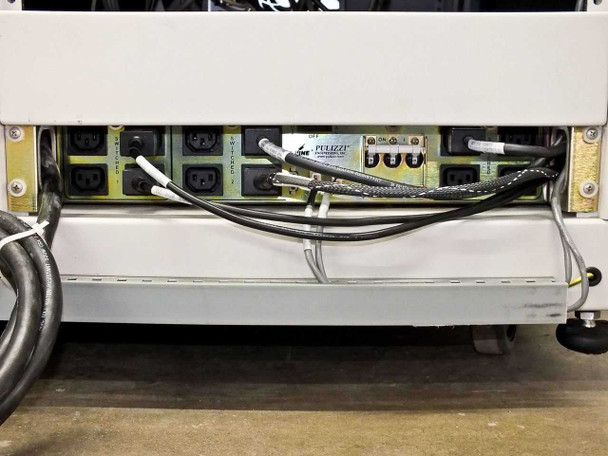

  • Symyx Technologies S14100 – rear panel showing power connections and cable management

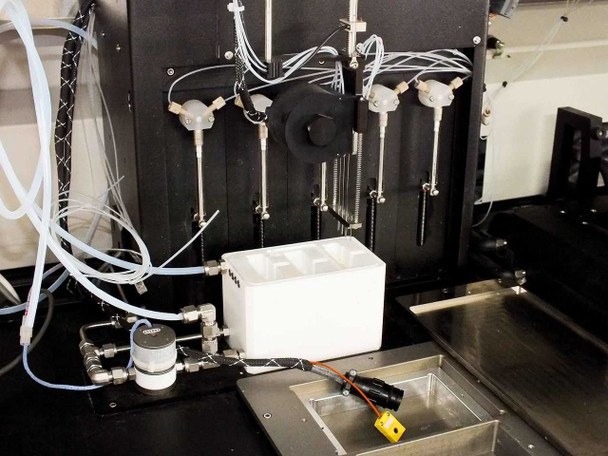

  • Symyx Technologies S14100 – Kloehn fluid delivery system manifold and tubing detail
  • Symyx Technologies S14100 – robotic arm head assembly close-up showing pipetting tips or dispense head

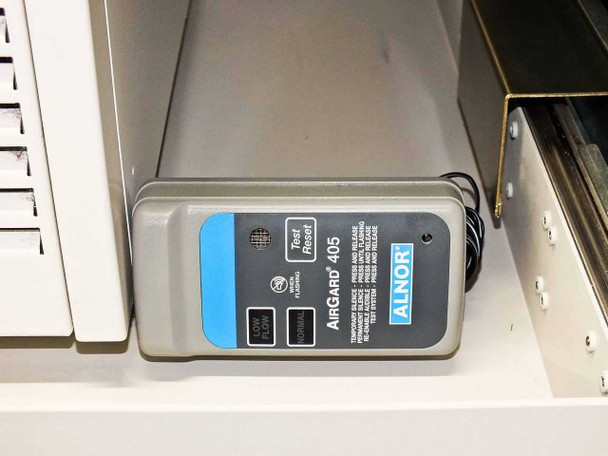

  • Symyx Technologies S14100 – Alnor Airguard 405 air quality controller mounted inside enclosure

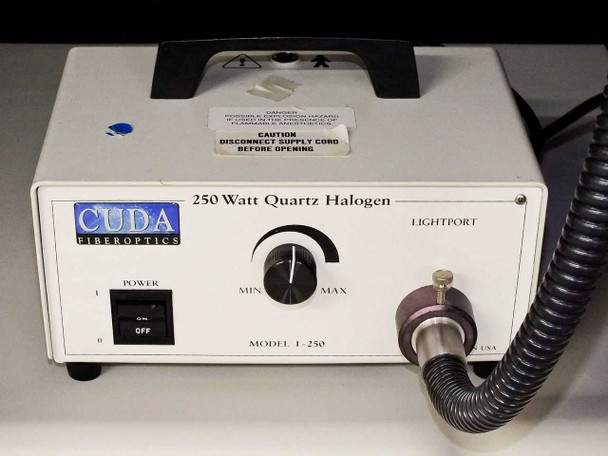

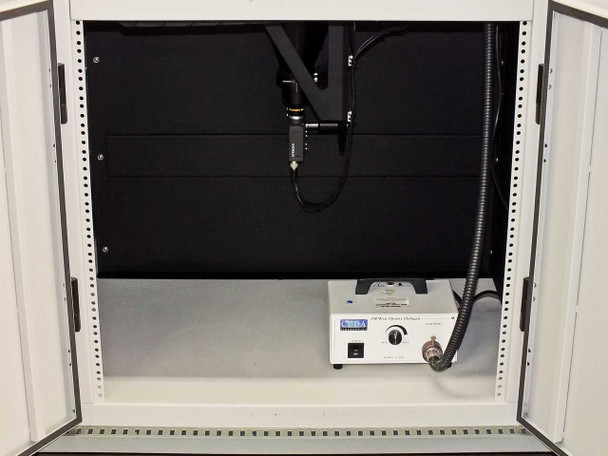

  • Symyx Technologies S14100 – Cuda Fiberoptics I-250 250W quartz halogen light source unit

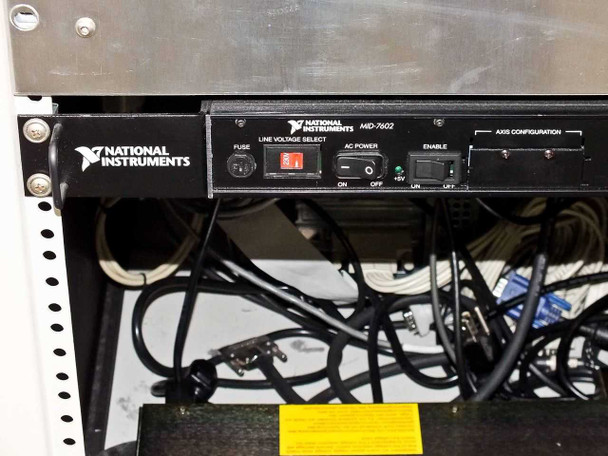

  • Symyx Technologies S14100 – NI MID-7602 power unit detail view

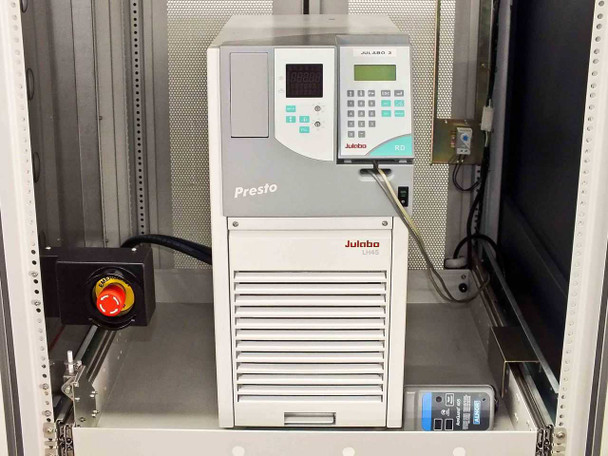

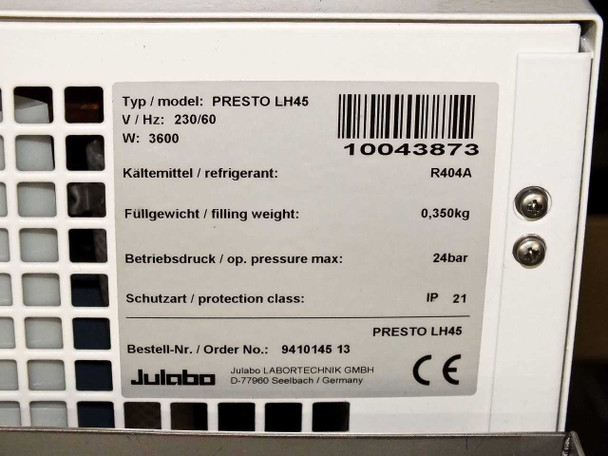

  • Symyx Technologies S14100 – Presto LH45 recirculating chiller unit 230V 3600W
  • Symyx Technologies S14100 – Todd Systems SD-13IEC/10TC step-down auto-transformer detail

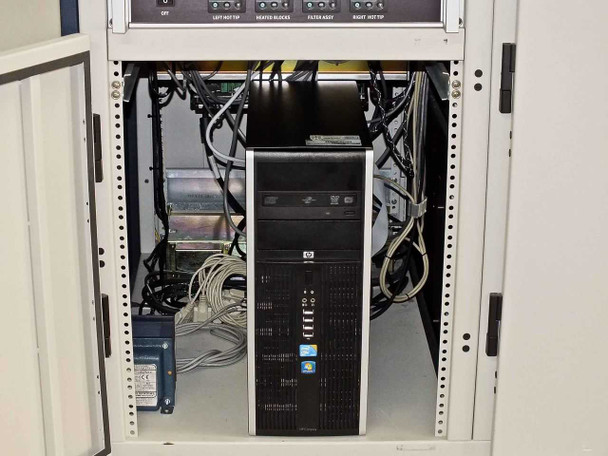

  • Symyx Technologies S14100 – HP PC computer included with workstation
  • Symyx Technologies S14100 – sample tray and plate holder positions on robotic deck
  • Symyx Technologies S14100 – enclosure top view showing HEPA or filtered air handling section

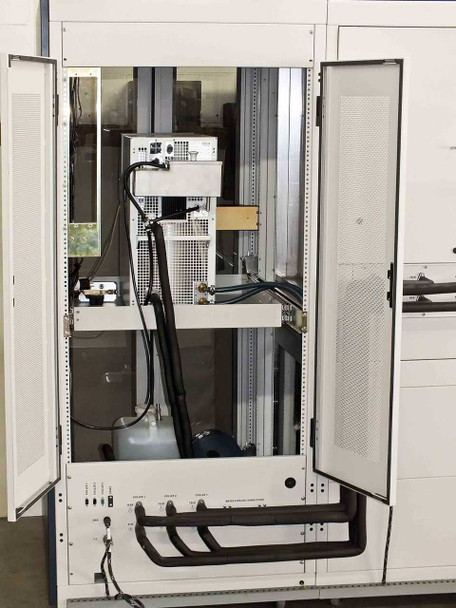

  • Symyx Technologies S14100 – left side of main cabinet with lower door panels closed

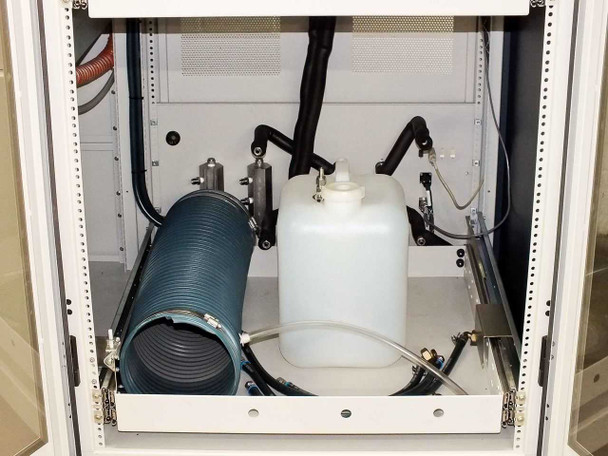

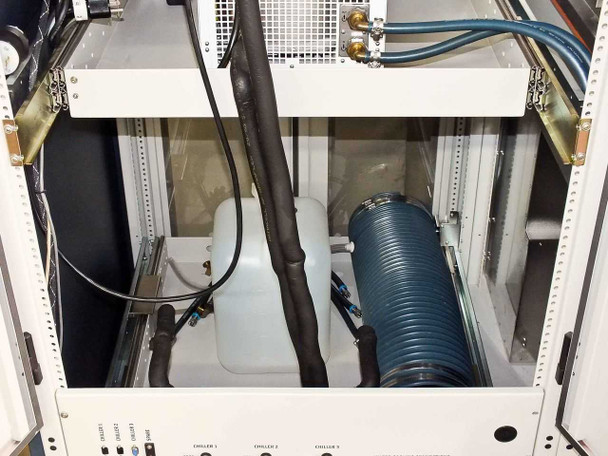

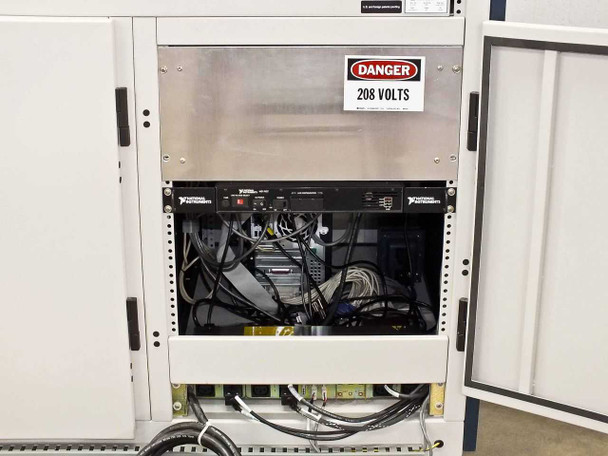

  • Symyx Technologies S14100 – lower cabinet doors open showing internal equipment bays
  • Symyx Technologies S14100 – Symyx branding logo label on front lower right panel

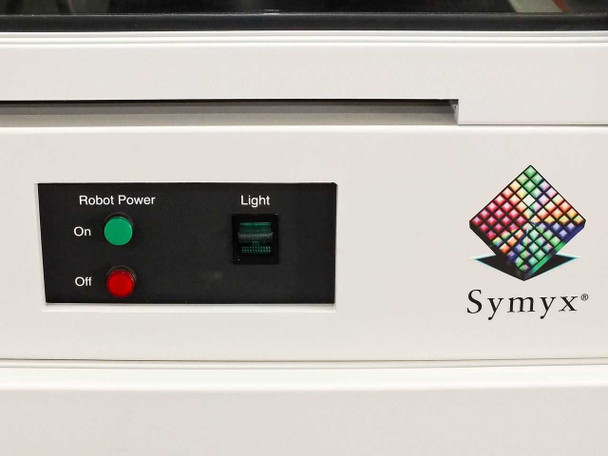

  • Symyx Technologies S14100 – power switch and control panel detail on front lower section

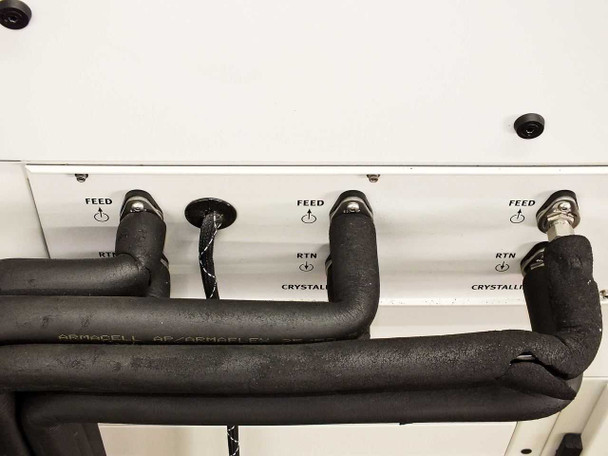

  • Symyx Technologies S14100 – tubing and fluid lines routing inside enclosure
  • Symyx Technologies S14100 – XY linear rail and drive belt assembly inside enclosure
  • Symyx Technologies S14100 – robotic arm cable chain and wiring harness detail
  • Symyx Technologies S14100 – sample staging area and plate deck close-up
  • Symyx Technologies S14100 – right-side cabinet door hinge and latch detail
  • Symyx Technologies S14100 – front enclosure glass panel and safety interlock
  • Symyx Technologies S14100 – overall right-side profile view of full workstation
  • Symyx Technologies S14100 – overall left-side profile view of full workstation
  • Symyx Technologies S14100 – rear cable egress and power entry panel
  • Symyx Technologies S14100 – castors and leveling feet on base of cabinet
  • Symyx Technologies S14100 – Crystallization Workstation label on front upper fascia
  • Symyx Technologies S14100 – interior lighting and imaging area under Cuda fiber optic illuminator

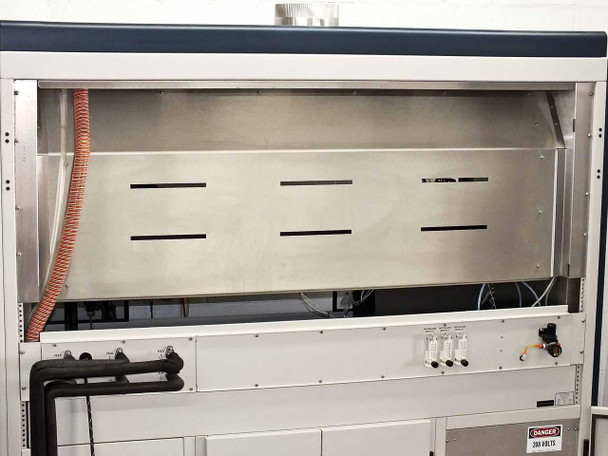

  • Symyx Technologies S14100 – general condition view showing cosmetic state of exterior panels
$10,330.00
Was: $100,000.00
Current Stock: 1

Sold Out

Description

Symyx Technologies S14100 Crystallizer CE Robot Crystallization Workstation 208V

Automated robotic crystallization workstation designed for combinatorial chemistry and drug discovery applications. Features a Kloehn/Carvo Robotics fluid delivery system with 48" wide x 12" deep x 11" tall robotic travel range.

Specifications & What's Included

  • Model: S14100 Crystallizer CE | Manufactured: June 2004
  • Power: 208/240 VAC, Single Phase, 30A, 50/60 Hz
  • Fluid Delivery: Kloehn/Carvo Robotics system (Part Nos. 727230B / 726389B)
  • Pumps: QTY 2 Monostat E-Series

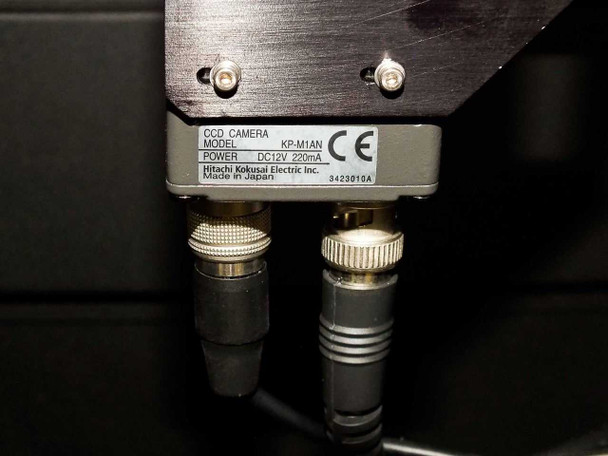

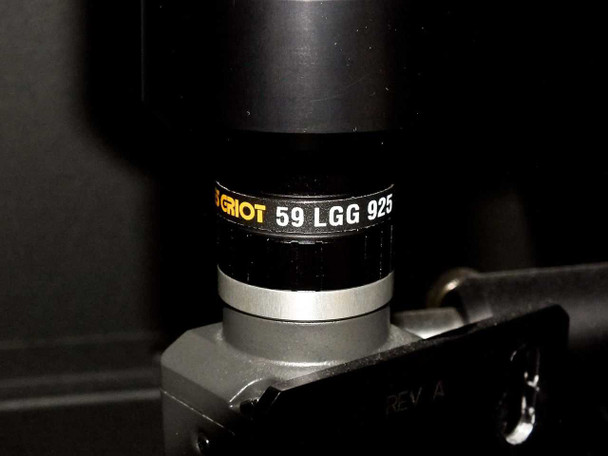

  • Camera: Hitachi KP-MIAN CCD Camera with Cuda Fiberoptics 250W Quartz Halogen light source
  • Chiller: Presto LH45 recirculator (230 VAC, 3600W)
  • Power Unit: NI MID-7602 | Step-Down Transformer: Todd Systems SD-13IEC/10TC
  • Includes HP PC (Part No. SK124UC#ABA)
  • CE certified

Applications

Used for automated crystallization screening, combinatorial chemistry workflows, and drug discovery research.

Condition: Used
This Symyx Technologies S14100 Crystallizer CE Robotic Crystallization Workstation has been inspected and appears to be in good cosmetic condition. It was pulled from a working environment where it was previously in use. This item has not been powered up or bench-tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Symyx Technologies
Model:
S14100
Secondary Model:
Crystallizer CE
MPN:
S14100
SKU:
45337
Condition:
Used – Inspected
Seller Notes:
Includes fluid delivery system, pumps, CCD camera, power unit, chiller, transformer, and HP PC
Form Factor:
Freestanding Cabinet Workstation
Country of Manufacture:
United States
Power Requirements:
208/240 VAC, Single Phase, 30A, 50/60 Hz
Manufacture Date:
June 2004
Application / Use Case:
Automated robotic crystallization; combinatorial chemistry; drug discovery
Fluid Delivery System:
Kloehn / Carvo Robotics; Part Nos. 727230B / 726389B
Robotic Travel (W x D x H):
48 in Wide x 12 in Deep x 11 in Tall
Pumps Included:
QTY 2 – Monostat E-Series Pumps
Air Quality Controller:
Alnor Airguard 405 Controller
Light Source:
Cuda Fiberoptics 250W Quartz Halogen, Model I-250
Camera:
Hitachi KP-MIAN CCD Camera
Power Unit:
NI MID-7602 Power Unit
Chiller / Recirculator:
Presto LH45, 230 VAC, 3600 W
Step-Down Transformer:
Todd Systems SD-13IEC/10TC; PRI 220-240V; SEC 110-120V
PC Computer Included:
HP PC, Part No. SK124UC#ABA
Certifications:
CE
Condition Notes:
This Symyx Technologies S14100 Crystallizer CE Robotic Crystallization Workstation has been inspected and appears to be in good cosmetic condition. It was pulled from a working environment where it was previously in use.
