Description
Swagelok SS-FM4PM2PM2-12 FM Series 12" Stainless Braided Hose 1/8" NPT Pair

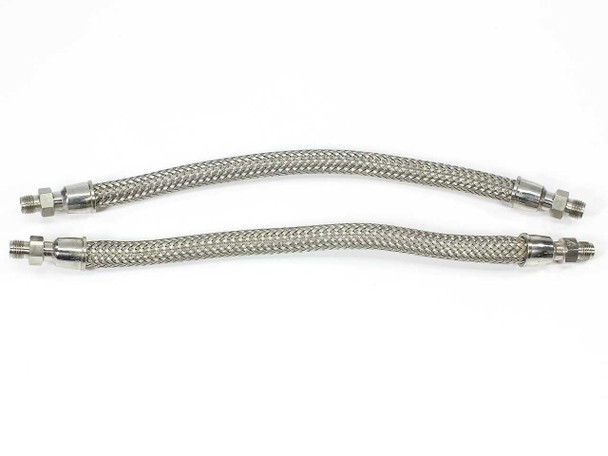

This is a pair of Swagelok FM Series flexible stainless steel braided hoses, part number SS-FM4PM2PM2-12. Each hose features a stainless steel wire-over-braid construction with 1/8" male NPT end fittings crimped with stainless ferrules. The FM Series is Swagelok's line of flexible metal hose assemblies designed for applications where a rigid tube connection is not practical — the braided outer jacket protects the inner corrugated core and provides mechanical strength while allowing movement, vibration absorption, and flexible routing.
Specifications & What's Included
- Part Number: SS-FM4PM2PM2-12
- Series: Swagelok FM Series
- Quantity: Pair (2 hoses)
- Overall Length: 12.5 in
- Live (Flexible) Length: 9 in
- Overall Hose Diameter: 0.55 in
- End Connections: 1/8" Male NPT, both ends
- Construction: Stainless steel corrugated inner core with stainless wire braid outer jacket
- End Fitting Material: Stainless steel with crimped ferrule collars
Applications
Swagelok FM Series flexible hose assemblies are used across semiconductor fabrication, vacuum chamber systems, analytical instrumentation, and general process gas and fluid lines. The stainless steel construction makes them well suited for high-temperature vacuum service, medium-pressure corrosive media, and applications where permeation of the carrier fluid through the hose wall must be prevented — something that can be a concern with polymer-lined hose in sensitive gas handling systems. They are commonly found connecting process gas panels to vacuum chambers, linking components in CVD and PVD systems, and routing lines in tight spaces where a hard tube run is impractical. The 1/8" NPT male ends are a standard connection found on a wide range of instrumentation, valves, and fittings in both laboratory and light industrial settings.

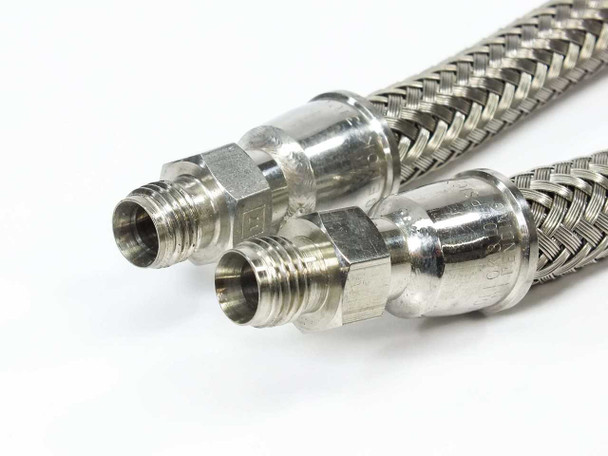

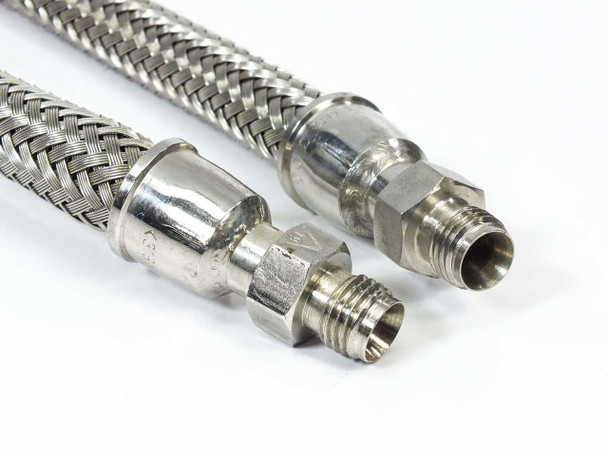

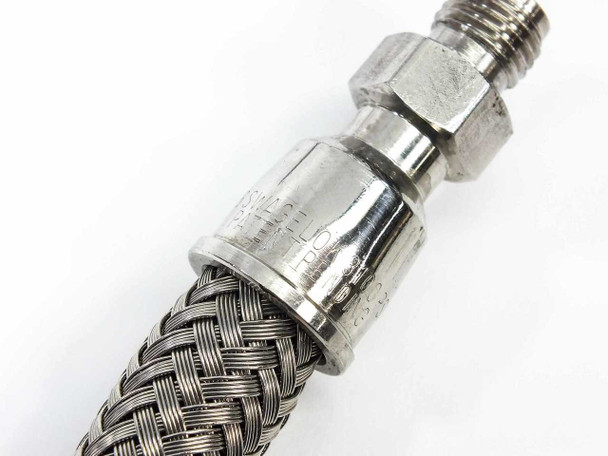

This pair of Swagelok SS-FM4PM2PM2-12 FM Series stainless braided hoses is in good used condition, pulled from a working environment where they were previously in service. Both hoses show normal surface wear on the stainless braid consistent with use; the 1/8" male NPT end fittings appear intact and undamaged with no visible corrosion or thread damage. The crimped ferrules on both hoses look secure with no signs of distortion. Please review our photos for a full view of condition and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Swagelok |
Model: |
SS-FM4PM2PM2-12 |
MPN: |
SS-FM4PM2PM2-12 |
SKU: |
49181 |
Type: |
Flexible Braided Stainless Steel Hose |
Series: |
FM Series |
Quantity: |
Pair (2 hoses) |
Overall Length: |
12.5 in |
Live Length: |
9 in |
Overall Hose Diameter: |
0.55 in |
End Connection Type: |
1/8" Male NPT |
End Connection Size: |
1/8 in NPT |
Material: |
Stainless Steel |
Braid Type: |
Stainless Steel Wire Braid |
Application: |
Vacuum, Pressure, Corrosive Media |
Compatible With: |
Vacuum chambers, process gas lines, semiconductor tools |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Pair of two hoses — no additional fittings or hardware included. |
Condition Notes: |
This pair of Swagelok SS-FM4PM2PM2-12 FM Series stainless braided hoses is in good used condition, pulled from a working environment. Both hoses show normal braid wear; NPT fittings and crimp ferrules appear intact. |
