Suntek EPS Series DVD Digital Error Tester w/ Yokogawa TA120F Jitter Meter

Suntek EPS Series DVD Digital Error Tester w/ Yokogawa TA120F Jitter Meter

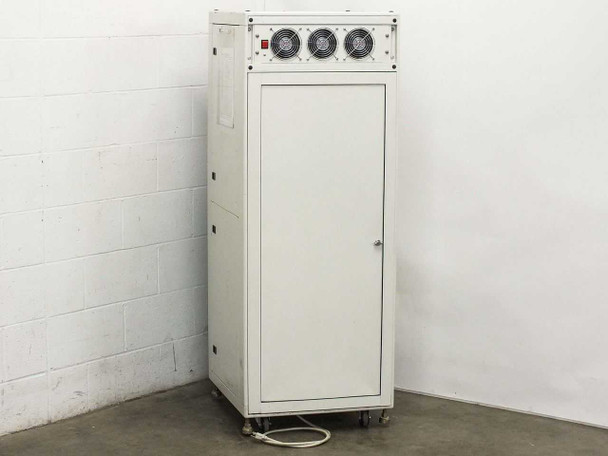

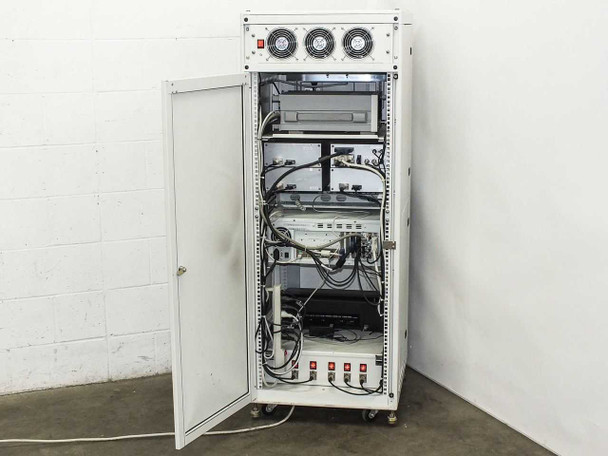

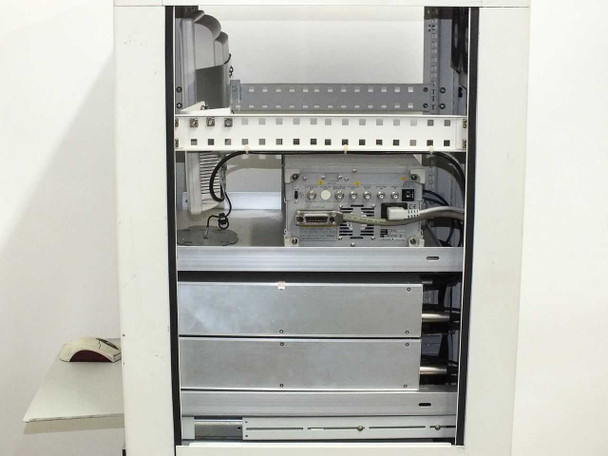

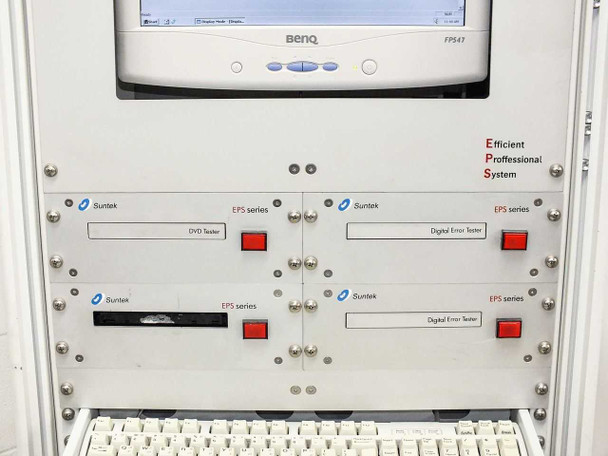

The Suntek EPS (Efficient Professional System) is a rack-integrated DVD disc quality control test system combining digital error testing and jitter measurement in a single floor-standing cabinet. The system houses four EPS-series test modules — one DVD Tester and three Digital Error Testers — alongside a Yokogawa TA120F Digital Jitter Meter, a BenQ FP547 flat panel monitor, and an embedded PC controller, providing a self-contained workstation for DVD disc production QC.

Specifications & What's Included

• Make: Suntek — Model: EPS Series (PC unit: EPS2000-004)
• System type: DVD digital error tester and jitter measurement rack
• Test modules: 4 total — 1× DVD Tester (EPS series), 3× Digital Error Tester (EPS series)

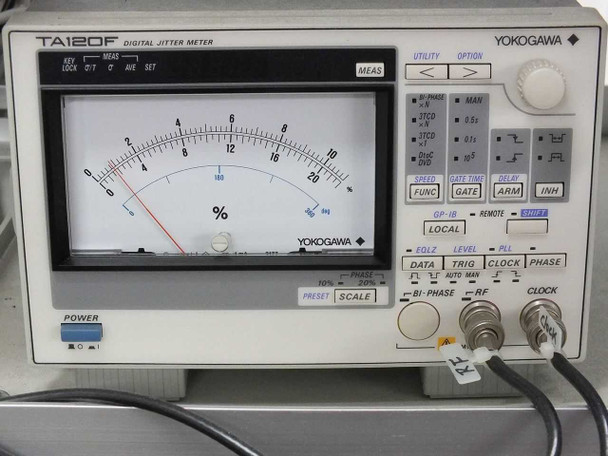

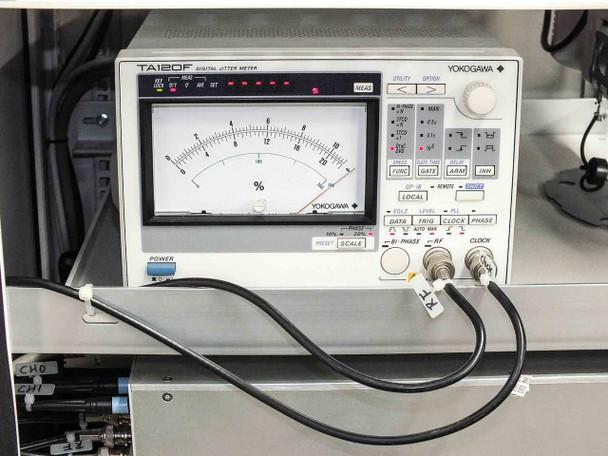

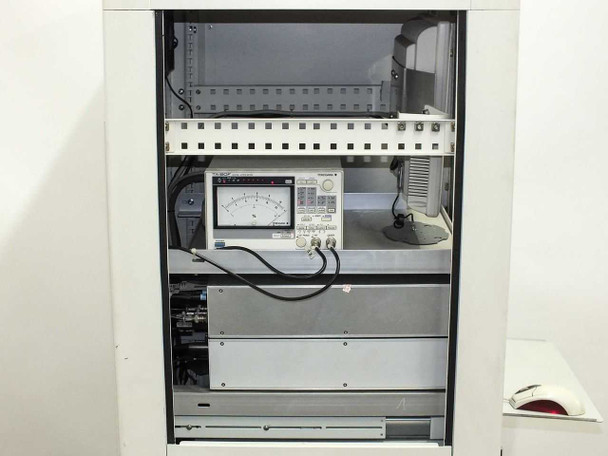

• Integrated instrument: Yokogawa TA120F Digital Jitter Meter

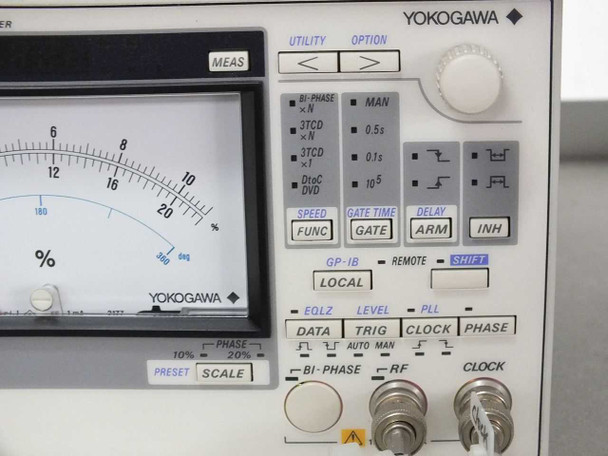

• TA120F input modes: BI-PHASE×N, 3TCD×N, DtoC DVD
• TA120F measurement modes: σ/T, σ, AVE, SET; gate times MAN / 0.5s / 0.1s / 10s
• TA120F front-panel inputs: DATA, TRIG, CLOCK, PHASE, BI-PHASE, RF, CLOCK (BNC)
• TA120F rear outputs: Jitter DC Out, Level DC Out, Equalized RF/Monitor Out, Sliced RF Out, Clock Out, EXT ARM In, INHIBIT In (BNC); GP-IB (IEEE-488) port
• TA120F power: 250V AC, 3A circuit breaker (rear panel)

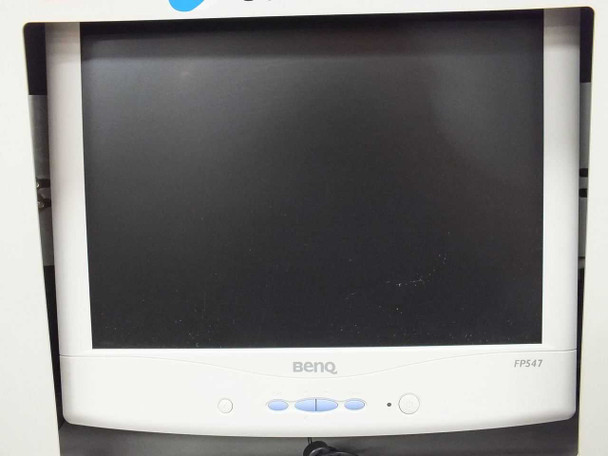

• Monitor: BenQ FP547 flat panel display

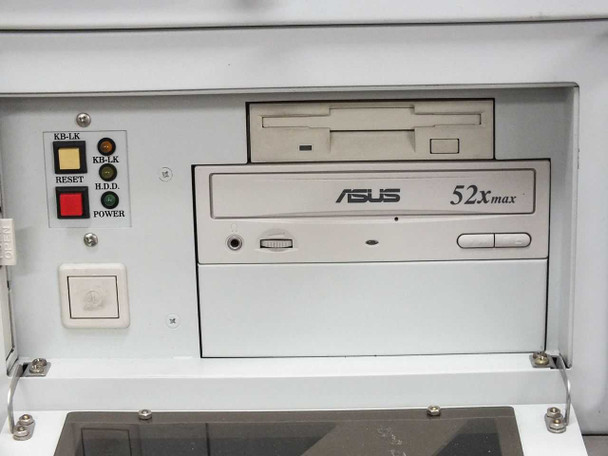

• Optical drive: ASUS 52x max CD-ROM
• Floppy drive: 3.5-inch (installed in PC bay)

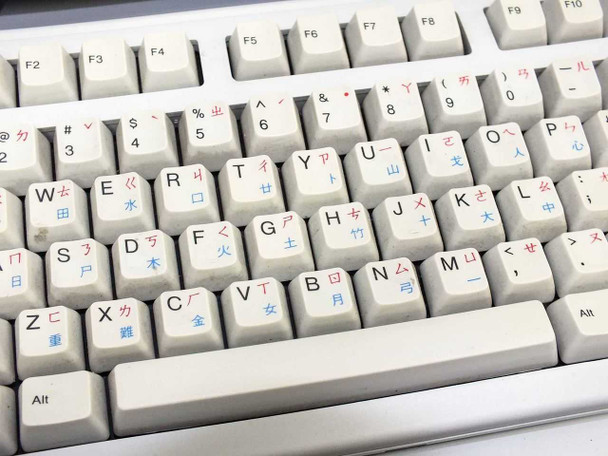

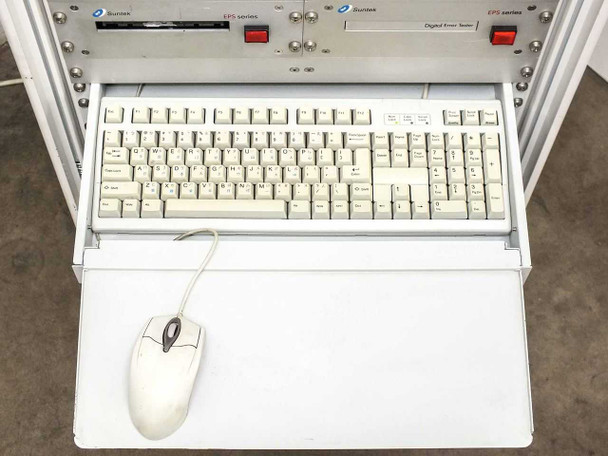

• Keyboard: full-size dual-language (English / Traditional Chinese Bopomofo)
• Mouse: PS/2 optical mouse

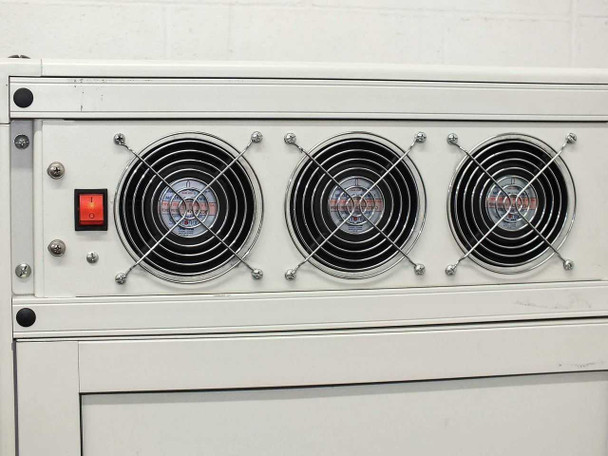

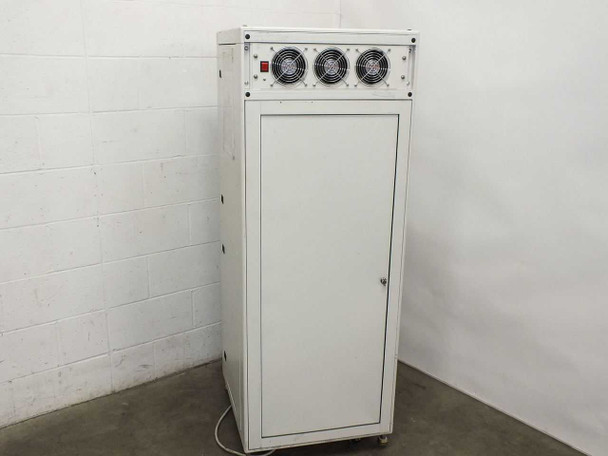

• Cooling: 3× top-mounted exhaust fans

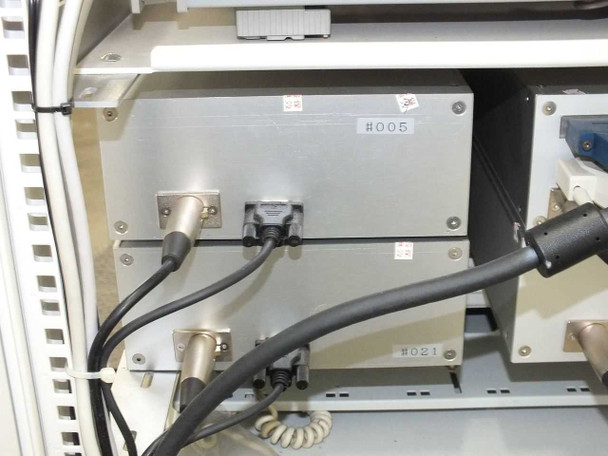

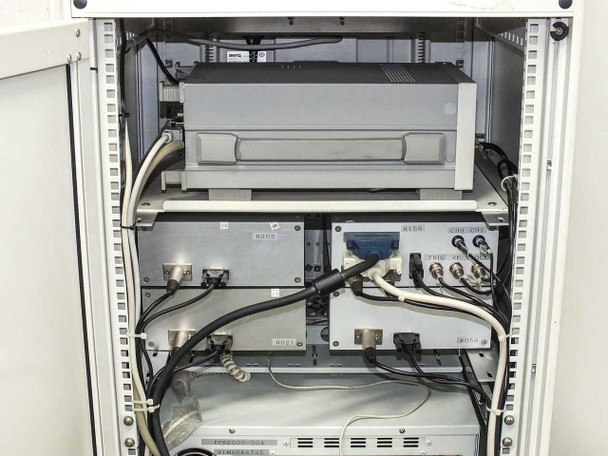

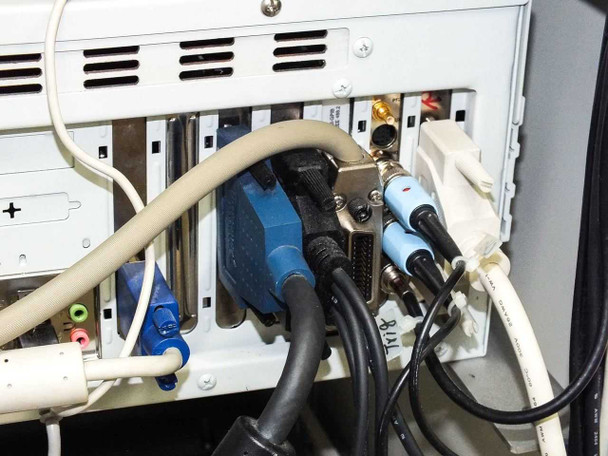

• Internal signal distribution: modules H156, H056, #005, #021 with BNC and D-sub interconnects
• Internal power distribution: 4-outlet rocker-switch power strip
• Cabinet: floor-standing white rack on casters with locking lower door
• Dimensions: 24 × 24 × 60 in (W × D × H)
• Includes: HP Deskjet D2545 printer (part CB672-64001)

Applications

The Suntek EPS Series was designed for use in DVD disc manufacturing and replication facilities as a production-line quality control station. During the DVD replication boom of the late 1990s through the 2000s, disc manufacturers needed automated test systems to verify that replicated discs met the jitter, error-rate, and readability specifications defined by the DVD Forum and the ECMA-267/ECMA-268 standards. The EPS system addresses this by combining digital error rate measurement — checking block error rate (BLER), C1/C2 errors, and related disc quality parameters — with the Yokogawa TA120F's precision jitter measurement capability, which analyzes channel-bit clock timing deviation on the disc's RF signal to confirm it falls within the disc specification window. The Yokogawa TA120F supports BI-PHASE, 3TCD, and DtoC DVD signal standards and connects to the host PC via GP-IB (IEEE-488) for automated data logging. This type of integrated rack system was standard equipment in medium-to-large disc replication plants where throughput and traceability required a dedicated QC workstation rather than individual bench instruments.
