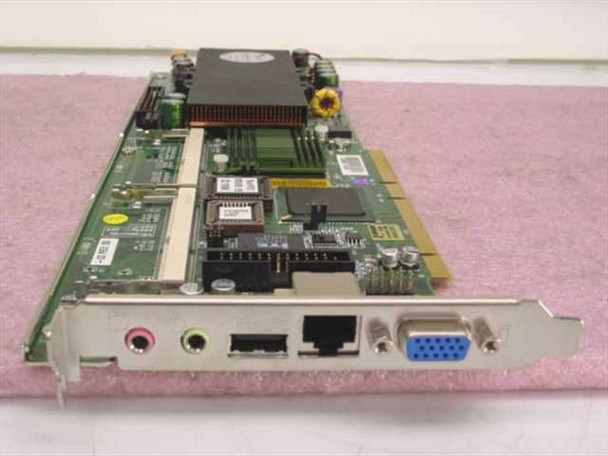

Sun PWA-Chimera PC+M Processing Board VGA USB RJ-45 Audio SPARC PCI Card
The Sun PWA-Chimera is a full-length PCI processing board from Sun Microsystems, designated SUN/PC+M BD on the PCB silkscreen. It integrates an on-board SPARC processor with memory expansion slots and a bracket loaded with I/O ports, functioning as a self-contained PC+M (PC and Memory) subsystem on a single card. This type of board was designed to slot into Sun workstation or server chassis and provide additional processing capability alongside the host system.
Specifications & What's Included
- Model: PWA-Chimera (PCB marking: PWA-CHIMERA SUN/PC+M BD)
- Manufacturer: Sun Microsystems
- Form factor: Full-length PCI card
- On-board processor: SPARC architecture CPU under heatsink with active fan
- Memory slots: 2 x on-board DIMM/SO-DIMM slots
- Video output: VGA (HD-15) on bracket
- Network: RJ-45 Ethernet port on bracket
- USB: one USB port on bracket
- Audio: 3.5mm audio-out and audio-in jacks on bracket
- Cooling: on-board heatsink with attached cooling fan
- Bus interface: PCI (full-length edge connector)
- Sold as board only — no cables or accessories included
Applications
The PWA-Chimera PC+M board is a Sun Microsystems co-processor card intended for use in compatible Sun workstation and server platforms. The PC+M (PC and Memory) designation indicates it provides a complete embedded processor subsystem — SPARC CPU, RAM, and standard I/O — on a single PCI card, allowing it to operate as an integrated processing node within the host chassis. These cards were used in Sun environments where additional processing headroom or I/O capability was needed alongside the main system, common in high-demand workstation and technical computing setups of the era. The on-bracket VGA, USB, RJ-45, and audio ports allowed direct peripheral connectivity without additional add-in cards. Today these boards are primarily sought by collectors, Sun system maintainers, and engineers working with legacy Sun hardware.
This Sun PWA-Chimera PC+M Processing Board has been inspected and is in good used condition. The card is clean overall with normal handling wear typical of pulled server/workstation hardware. The PCB shows no cracked traces or broken components, the on-board fan and heatsink appear intact, and the bracket-mounted ports — VGA, RJ-45, USB, and audio jacks — look clean and undamaged. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Sun Microsystems |
Model: |
PWA-Chimera |
MPN: |
PWA-CHIMERA SUN/PC+M BD |
Type: |
PC+M Processing Board |
SKU: |
28539 |
Form Factor: |
Full-Length PCI Card |
Processor Architecture: |
SPARC |
Video Output: |
VGA (DB-15) |
Network Interface: |
RJ-45 Ethernet |
USB Ports: |
Yes — USB port on bracket |
Audio: |
3.5mm audio in/out on bracket |
Memory Slots: |
2 x DIMM/SO-DIMM slots on-board |
Cooling: |
On-board heatsink with fan |
Interface / Bus: |
PCI (Full-Length) |
Compatible With: |
Sun Microsystems workstation/server systems |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Sun PWA-Chimera PC+M Processing Board has been inspected and is in good used condition. Normal handling wear. PCB, heatsink/fan, and bracket ports appear intact. Please view our photos and contact us with questions. |
