Sun 300-1301-03 Server Power Supply PEX705-30 195W 100-240V Module Rev AC FDK
The Sun 300-1301-03 is a server power supply module manufactured by FDK Corporation (model PEX705-30, Rev AC) for Sun Microsystems server and workstation systems. It accepts a universal AC input and delivers multiple regulated DC output rails through a proprietary high-density blade connector, designed to slide into a compatible Sun chassis bay.
Specifications & What's Included

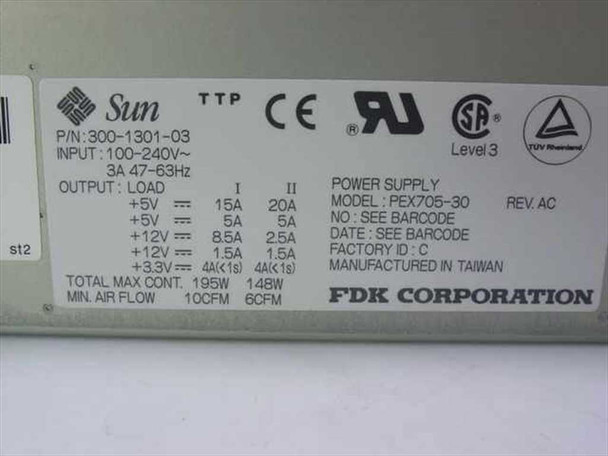

- Sun Part Number: 300-1301-03
- OEM Model: FDK PEX705-30, Rev AC
- Input Voltage: 100–240V AC
- Input Current: 3A
- Input Frequency: 47–63 Hz
- Output Rails & Ratings (Load I / Load II):
- +5V: 15A / 20A
- -5V: 5A / 5A
- +12V: 8.5A / 2.5A
- +12V peak: 1.5A / 1.5A
- +3.3V peak: 4A (<1s) / 4A (<1s)
- Total Max Continuous Output: 195W (Load I) / 148W (Load II)
- Minimum Airflow Required: 10 CFM (Load I) / 6 CFM (Load II)
- Output Connector: Proprietary multi-pin blade connector (chassis-mounted)
- Form Factor: Hot-swap module / rackmount sled
- Country of Manufacture: Taiwan
- Includes: Power supply module only
Applications
The 300-1301-03 is a hot-swap power supply module designed for Sun Microsystems server and high-availability workstation platforms from the late 1990s to early 2000s. Sun used modular, load-shared power architectures in systems such as the Ultra Enterprise and Netra server lines, where individual power modules could be replaced without powering down the chassis. The dual load rating (Load I / Load II) reflects Sun's redundant PSU configurations, where each module handles a defined share of system load. This module is commonly sought as a spare or replacement for maintaining aging Sun infrastructure still in service in legacy data center and lab environments. The universal 100–240V input makes it compatible with both North American and international AC mains.

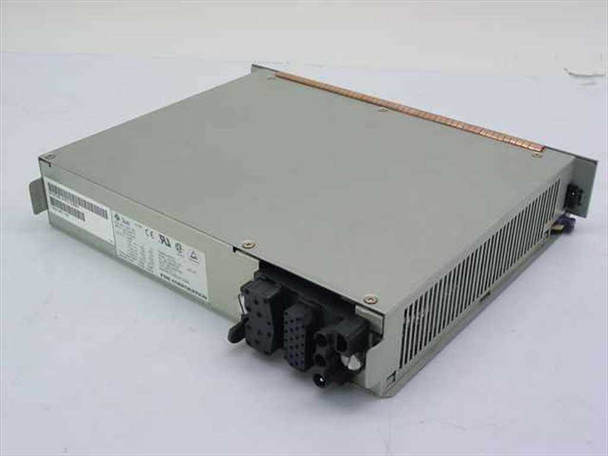

This Sun 300-1301-03 server power supply module (FDK PEX705-30) has been bench-tested at our facility and is in good working condition. The chassis is clean with light handling wear consistent with prior service use. The multi-pin blade output connector and rear ventilation fins are intact with no visible damage. Please review our photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Sun Microsystems |
Model: |
300-1301-03 |
MPN: |
300-1301-03 |
Secondary Model: |
PEX705-30 |
Hardware Revision: |
Rev AC |
SKU: |
25474 |
Type: |
Server Power Supply Module |
Manufacturer: |
FDK Corporation |
Input Voltage: |
100-240V AC |
Input Current: |
3A |
Input Frequency: |
47-63 Hz |
Max Output Power (Load I): |
195W continuous |
Max Output Power (Load II): |
148W continuous |
Output +5V (Load I): |
15A |
Output +5V (Load II): |
20A |
Output -5V: |
5A |
Output +12V (Load I): |
8.5A |
Output +12V (Load II): |
2.5A |
Output +12V Peak: |
1.5A |
Output +3.3V Peak: |
4A (<1s) |
Minimum Airflow (Load I): |
10 CFM |
Minimum Airflow (Load II): |
6 CFM |
Form Factor: |
Module / Rackmount Sled |
Connector Type: |
Proprietary multi-pin blade connector |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Power supply module only; bench-tested and in good working condition. |
Condition Notes: |
This Sun 300-1301-03 (PEX705-30) server power supply module has been bench-tested at our facility and is in good working condition. Light handling wear only. Please view our photos and contact us with any questions. |
