Sun Type 5 Optical Mouse 370-1398 MSC 403876-001 DIN Connector Sun Workstation

Sun Type 5 Optical Mouse 370-1398 MSC 403876-001 DIN Connector Sun Workstation

The Sun Microsystems Type 5 is a three-button optical mouse designed for Sun workstations and SPARC-based systems. It connects via a DIN interface and operates at 5VDC / 15mA. The Type 5 was Sun's standard bundled mouse throughout the early-to-mid 1990s and remains compatible with systems that accept the Sun DIN mouse protocol. Manufactured in the USA in 1991.

Specifications & What's Included

• Brand: Sun Microsystems
• Model: Type 5
• Sun Part Number: 370-1398
• MSC Number: 403876-001
• FCC ID: CWE403356
• Buttons: 3 (three gray top-mounted buttons)

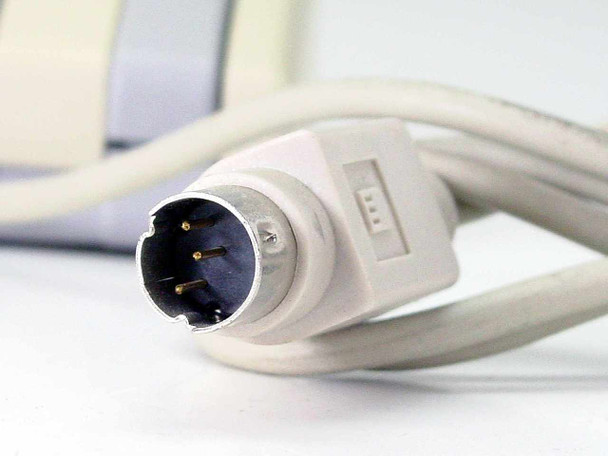

• Connector: DIN (mini-DIN style, 4-pin)
• Power: 5VDC, 15mA
• Certifications: UL (E88440), CSA (LR 66485), TÜV/GS, VCCI, DOC Class B
• Country of Manufacture: United States
• Manufacture Date: Week 43, 1991
• Includes: Mouse with attached DIN cable only

Applications

The Sun Type 5 mouse was the standard pointing device shipped with Sun Microsystems SPARC workstations and servers running SunOS and Solaris throughout the early 1990s. It used a reflective optical sensor that worked with a special metallic mouse pad grid — unlike later LED/laser optical mice, it required the Sun-pattern mouse pad to track. The Type 5 is compatible with Sun systems including the SPARCstation 1, 2, 5, 10, 20, IPX, ELC, and other workstations of that era that use the Sun serial mouse protocol over the DIN interface. Today these mice are sought by collectors restoring vintage Sun workstations, and by operators still running legacy SPARC hardware in niche scientific, industrial, and educational environments where the original Sun desktop environment remains in use.
