Sun Microsystems cPCI Rear Transition Module 0-00398-04 SCSI TTYA TTYB 2x

(No reviews yet) Write a Review
SKU:
24207
MPN:
0-0398-04
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

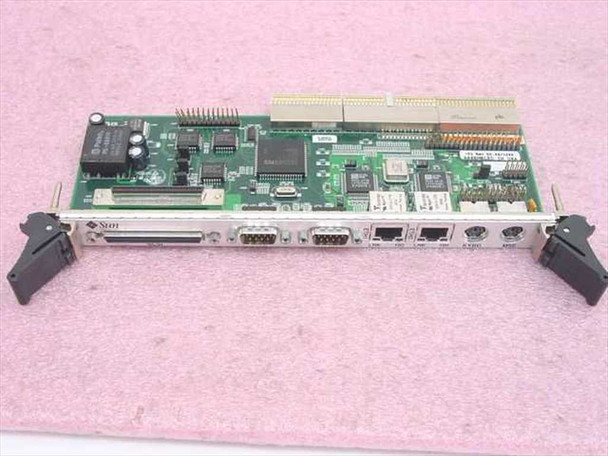

  • Sun Microsystems 0-00398-04 cPCI Rear Transition Module – front face showing SCSI, TTYA, TTYB DB-9 ports, dual RJ-45 Ethernet, PS/2 keyboard and mouse connectors

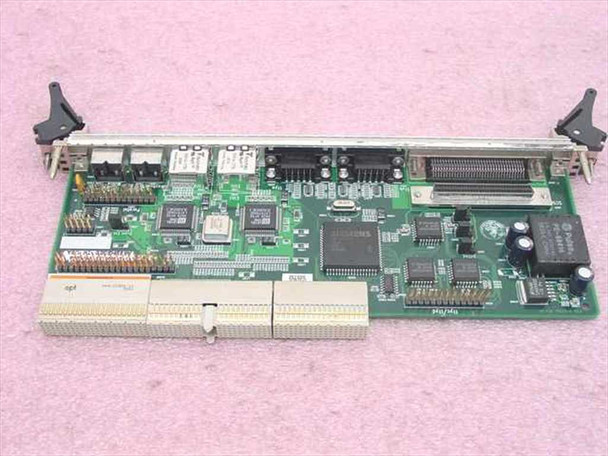

  • Sun Microsystems 0-00398-04 cPCI Rear Transition Module – top-down PCB view showing main controller ICs, memory chips, J3/J4/J5 cPCI bus connector fingers, and dual RJ-45 ports
  • Sun Microsystems 0-00398-04 cPCI module – close-up of part number label showing 0-00398-04 and serial number barcode, with FT1 revision sticker visible
  • Sun Microsystems 0-00398-04 cPCI Rear Transition Module – side faceplate detail showing labeled SCSI, TTYB, TTYA, ETH1, ETH0 (LNK/100), KYBD, and MSE ports
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Sun Microsystems cPCI Rear Transition Module 0-00398-04 SCSI TTYA TTYB 2x Ethernet

This is a 6U CompactPCI rear transition module that provides external connectivity for Sun Microsystems cPCI chassis systems. It routes internal cPCI bus signals to faceplate ports for serial, SCSI, Ethernet, and peripheral connections.

Specifications & What's Included

  • Model: 0-00398-04
  • Form Factor: 6U CompactPCI (cPCI)
  • Bus Interface: CompactPCI J3, J4, J5
  • Ports: SCSI (68-pin), 2x Serial RS-232 (DB-9), 2x Ethernet RJ-45 (10/100), PS/2 Keyboard and Mouse
  • Manufactured in United States
  • Card only

Applications

Rear transition modules are used in CompactPCI systems to break out internal bus connections to standard external connectors. This module was commonly deployed in Sun Microsystems industrial computing and telecom equipment throughout the 1990s and 2000s, where cPCI architecture provided rugged, modular computing platforms. It integrates serial communications, storage interfaces, and network connectivity in a single transition card for system-level I/O management.

Condition: Used
This Sun Microsystems cPCI Rear Transition Module (P/N 0-00398-04) was pulled from a working cPCI system and has been inspected. It is in good used condition. The faceplate and PCB show normal wear consistent with data center use. All ports — SCSI, TTYA, TTYB, both Ethernet RJ-45 jacks, and the PS/2 keyboard and mouse connectors — appear intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sun Microsystems
Model:
0-00398-04
MPN:
0-00398-04
Type:
cPCI Rear Transition Module
SKU:
24207
Condition:
Used – Pulled from Working Environment
Form Factor:
6U CompactPCI (cPCI)
Bus Interface:
CompactPCI (cPCI) J3, J4, J5
Number of Ports:
7 (SCSI, TTYA, TTYB, 2x Ethernet, KYBD, MSE)
Interface Type:
SCSI, RS-232 (TTYA/TTYB), Ethernet x2, PS/2
SCSI Connector:
68-pin SCSI (visible on faceplate)
Serial Ports:
2x DB-9 (TTYA, TTYB)
Ethernet Ports:
2x RJ-45 (10/100 LNK/100 labeled)
Keyboard/Mouse:
PS/2 KYBD and MSE connectors
Compatible With:
Sun Microsystems cPCI chassis systems
Country/Region of Manufacture:
United States
Seller Notes:
Card only; pulled from a working cPCI system
Condition Notes:
Sun Microsystems cPCI Rear Transition Module 0-00398-04 pulled from a working cPCI system. Inspected and in good used condition. All faceplate ports appear intact. Normal wear.
