STS Inc

STS Statcom 19" Rackmount 2U Satellite Upconverter 4825-5325 MHz MACOM RF

(No reviews yet) Write a Review
SKU:
49852
MPN:
Statcom
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
34.00 LBS
Shipping:
Calculated at Checkout
  • STS Statcom EROS-800-SEU-1 satellite upconverter front panel showing frequency display reading 6345.0 and UP CONV label
  • STS Statcom satellite upconverter rear panel showing IEC AC inlet, VRI connector, parallel D-sub J4, fan assembly, and RF SMA output connectors
  • Close-up of STS Statcom upconverter left front panel showing U/C IN, IF OUT, RFXO, and IFXO BNC connectors with MON and ADJ labels
  • Close-up of STS Statcom upconverter center front panel showing frequency thumbwheel display at 6345.0, ENBL and EXEC buttons, and channel selector switches
  • Close-up of STS Statcom upconverter right front panel showing UP CONV mode selector switches, SUM/FAIL and LAMP/TEST indicators, and OPERATE/MAINT toggle

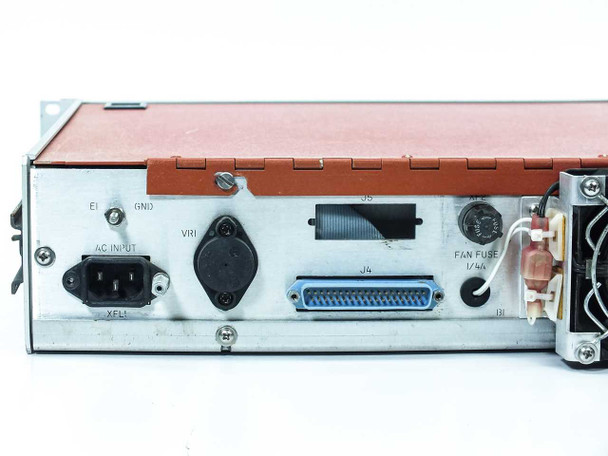

  • STS Statcom upconverter rear panel detail showing AC INPUT IEC inlet, GND post, VRI connector, J4 parallel D-sub, J5 connector, and fan fuse holder

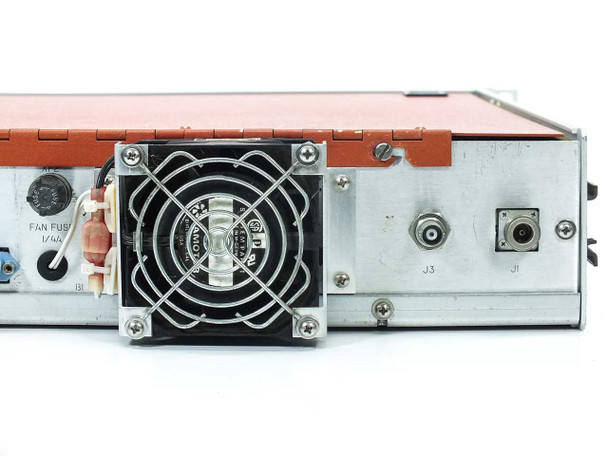

  • STS Statcom upconverter rear right panel showing cooling fan assembly, fan fuse, J3 and J1 coaxial RF output connectors
  • STS Statcom upconverter interior top view showing MACOM SNC12-02 and PLL14-07 modules, Vectron crystal oscillator, high-voltage power supply, and internal RF cabling
  • Interior close-up of STS Statcom upconverter showing Vectron crystal oscillator module and MACOM PLL/upconverter modules with SMA interconnects
  • Vectron Laboratories crystal oscillator label inside STS Statcom upconverter showing model 229-7209-5, frequency 103 MHz, S/N 857405, made in USA
  • STS Inc Statcom 19" Rackmount 2U Satellite Upconverter - Microwave / RF
  • STS Inc Statcom 19" Rackmount 2U Satellite Upconverter - Microwave / RF
$550.00
Was: $1,100.00
Current Stock: 1

Sold Out

Description

STS Statcom 19" Rackmount 2U Satellite Upconverter 4825-5325 MHz MACOM RF

C-Band satellite upconverter for earth station ground station uplink applications. Converts IF signals at 960–1150 MHz to RF output at 4825–5325 MHz for satellite transmission.

Specifications & What's Included

  • Model: EROS-800-SEU-1
  • Output Frequency: 4825–5325 MHz (C-Band TX)
  • Input (IF) Frequency: 960–1150 MHz
  • Reference Oscillator: Vectron Laboratories 229-7209-5 (103 MHz)
  • Upconverter Module: MACOM SNC12-02; PLL Module: MACOM PLL14-07
  • Power: 115V / 220V AC (selectable)
  • Connectors: BNC (IF/RF), SMA (RF out), D-sub parallel I/O
  • Dimensions: 23 x 19 x 3.5 inches; 19" rackmount, 2U
  • Unit only; no accessories included

Applications

Used in satellite earth station and ground station uplink systems for signal conversion and transmission. Integrates with satellite communication networks requiring C-Band upconversion. Common in telecom, broadcast, and defense satellite operations.

Condition: Used
This STS Statcom EROS-800-SEU-1 19" rackmount satellite upconverter has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The chassis shows typical surface wear consistent with rack-mounted field use, including light scuffing on the front panel and top cover. The front-panel frequency display, mode selector switches, and indicator LEDs appear intact. The rear-panel AC inlet, parallel I/O connector, and RF output ports are present and show no obvious damage. The internal modules — including the MACOM SNC12-02 upconverter, MACOM PLL14-07, and Vectron 103 MHz crystal oscillator — are seated and intact as viewed in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
STS Inc / Statcom
Model:
EROS-800-SEU-1
MPN:
EROS-800-SEU-1
Type:
Satellite Upconverter
SKU:
49852
Form Factor:
19" Rackmount, 2U
Output Frequency Range:
4825 – 5325 MHz
Input (IF) Frequency Range:
960 – 1150 MHz
Reference Oscillator:
Vectron Laboratories 229-7209-5, 103 MHz
Upconverter Module:
MACOM / MATS SNC12-02
PLL Module:
MACOM / MATS PLL14-07
Manufacturer (Chassis):
Electronic Research Co (ERC)
Power Requirements:
115V / 220V AC (selectable), fused
Frequency Band:
C-Band (TX)
Application:
Satellite Earth Station / Ground Station Uplink
Connector Types:
BNC (IF/RF), SMA (RF out), D-sub parallel I/O
Dimensions:
23 x 19 x 3.5 in
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from working environment. No accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
STS Statcom EROS-800-SEU-1 satellite upconverter. Inspected, in good used condition. Pulled from a working environment where it was actively in use. Internal MACOM and Vectron modules present and intact. Typical rack wear.
View AllClose

Related Products

Related Products

STS Inc Statcom RF Upconverter front panel and top view showing 19-inch 2U rackmount chassis with LED bar graph display and front panel controls STS Inc Statcom Upconverter rear panel showing IEC AC input, two DB44 parallel connectors, cooling fan, and SMA RF output port
Add to Cart
Quick view

STS Inc Statcom RF Upconverter 13 GHz Ku-Band Satellite 19" Rackmount 2U

$550.00
Was: $1,100.00
STS Inc Statcom RF Upconverter 13 GHz Ku-Band Satellite 19" Rackmount 2UThis STS Inc Statcom is a 19-inch 2U rackmount RF upconverter designed for Ku-band satellite earth station and uplink...
49836
SKU:
49836
Availability:
Usually ships within 1-2 business days.
Weight:
33.00 LBS
Brand:
STS Inc
Model:
Statcom Upconverter
MPN:
Statcom Upconverter
Type:
RF Upconverter
SKU:
49836
Frequency Band:
Ku-Band
Frequency Range:
12.85 – 13.35 GHz
Application:
Satellite Uplink / Earth Station
Form Factor:
19" Rackmount, 2U
Dimensions:
23 x 19 x 3.5 in
Power Requirements:
AC Input (IEC connector); fuse 1/2A 220V
Mixer / Upconverter Module:
MACOM PLK-12-01 (12.85–13.35 GHz)
Crystal Oscillator 1:
Vectron 108 MHz
Crystal Oscillator 2:
Vectron 101.99603 MHz
Bandpass Filter:
K&L Microwave 9FV-1150/60-00
Internal Assembly:
ASS-Y C1663 (visible on RF amp assembly)
Rear Connectors:
2x DB44 parallel connectors (J4 area), IEC AC inlet, SMA RF port
Front Panel Connectors:
RF OUT (SMA), RF LO / AUX IN (SMA), MON (SMA), IFXO, RFXO BNC/SMA
Front Panel Indicators:
10-segment LED bar graph, SUM/FAIL, LAMP/TEST, FUSE/FAIL LEDs, POWER LED
Front Panel Controls:
OPERATE/MAINT switch, OFF/ON switch, IFXO ADJ, RFXO ADJ trimpots
Cooling:
Internal cooling fan (Paramotor brand)
Condition:
Used – Inspected
Seller Notes:
Unit only; no external cables included. Inspected, good cosmetic condition.
Country/Region of Manufacture:
United States
Condition Notes:
This STS Inc Statcom RF Upconverter has been inspected and is in good used condition with normal wear. Internal assemblies including MACOM PLK-12-01 module, Vectron oscillators, and K&L filter are visually intact.

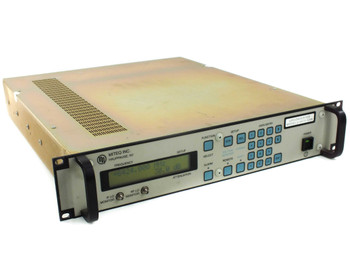

Miteq U-9473-125K C-Band Upconverter – front panel view showing LCD display, keypad, and rack ears Miteq U-9473-125K C-Band Upconverter – rear panel showing power inlet, fan, DB-9 remote ports, SMA connectors, and CE mark
