STS D61486-01 Serial Summary Alarm Rackmount Chassis 85-265V 47-63Hz 1U

(No reviews yet) Write a Review
SKU:
39706
MPN:
D61486-01
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

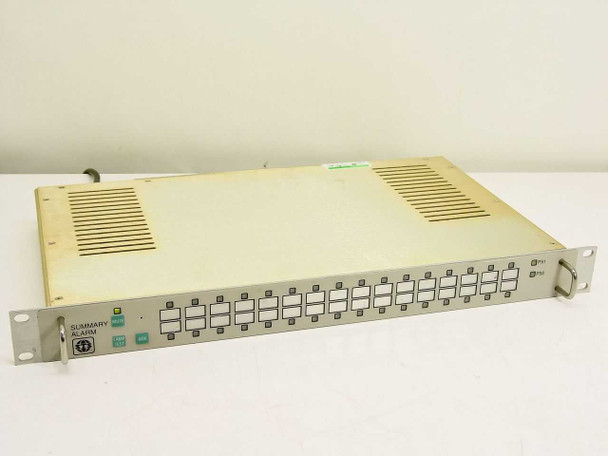

  • STS D61486-01 Serial Summary Alarm 1U rackmount chassis – front and top three-quarter view showing full enclosure with ventilation slots
  • STS D61486-01 Summary Alarm front panel close-up showing MUTE, LAMP TEST, and ACK buttons with green LED indicators and STS logo
  • STS D61486-01 Summary Alarm right side of front panel showing additional alarm channel LED indicators and PS1/PS2 power supply status LEDs
  • STS D61486-01 Serial Summary Alarm rear panel showing dual IEC AC power inlets and multiple D-sub connector ports
  • STS D61486-01 rear panel detail showing GND terminal, AC2 IEC inlet, static-sensitive warning label, and AIJI connector port
  • STS D61486-01 product label close-up reading SERL/SUM ALARM D61486-1 Rev E, date code 9649, with AC1 IEC inlet and CE marking
  • STS D61486-01 rear panel showing D-sub connectors labeled A1J1, A1J2, A1J3, A1J4, A2J1, A2J2 and slot for expansion card
  • STS D61486-01 label detail reading SERL/SUM ALARM, part number D61486-1, revision E, code 070, date code 9649
  • STS D61486-01 interior view with top cover removed showing main PCB assembly with ICs, relay bank, ribbon cable, and dual power supply modules with high-voltage warning labels
  • STS D61486-01 PCB close-up showing board markings SCH D54381, ASSY D54380-1 Rev A, Dallas IC, RASCI oscillator 10.240 MHz, and RS2079 chip
  • STS D61486-01 Serial Summary Alarm-Aluminum Rackmount Chassis-85-265V~2A 47-63Hz
$95.00
Was: $200.00
Current Stock: 1

Sold Out

Description

STS D61486-01 Serial Summary Alarm Rackmount Chassis 85-265V 47-63Hz 1U

Serial Summary Alarm chassis designed to receive and display alarm signals from remote equipment over serial connections. Mounts in standard 19-inch rack at 1U height with dual redundant AC power inputs.

Specifications & What's Included

  • Form Factor: 1U rackmount
  • Power: 85–265V AC, 47–63Hz, 2A input
  • Front Panel: MUTE, LAMP TEST, ACK buttons; LED indicators per alarm channel; PS1/PS2 status LEDs
  • Rear: Dual IEC AC inlets (AC1, AC2); multiple D-sub connectors (A1J1–A1J4, A2J1–A2J2)
  • Chassis: Aluminum construction
  • Unit only; no cables included

Applications

Serial Summary Alarm chassis aggregates alarm signals from distributed telecom, power, and industrial monitoring systems. Historically used in central office environments, HVAC plant monitoring, and equipment racks to consolidate fault notifications. Interfaces with legacy alarm management systems via serial D-sub connections. Supports redundant power supplies for continuous operation in mission-critical facilities.

Condition: Used
This STS D61486-01 Serial Summary Alarm rackmount chassis has been inspected and is in good used condition. The unit shows normal cosmetic wear consistent with prior rack-mounted use, including light scuffing on the aluminum chassis. Front-panel LEDs and buttons are intact, and the rear D-sub and IEC power connectors appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
STS
Model:
D61486-01
MPN:
D61486-1
Type:
Serial Summary Alarm Chassis
SKU:
39706
Form Factor:
1U Rackmount
Power Requirements:
85-265V AC, 47-63Hz, 2A
Input Voltage Range:
85-265V AC
Frequency:
47-63Hz
Current Rating:
2A
Chassis Material:
Aluminum
Front Panel Controls:
MUTE, LAMP TEST, ACK buttons
Front Panel Indicators:
LED indicators per alarm channel, PS1/PS2 status LEDs
Rear Connectors:
Dual IEC AC inlets (AC1, AC2), multiple D-sub connectors
Rear Interface Connectors:
A1J1, A1J2, A1J3, A1J4, A2J1, A2J2 D-sub connectors
Internal Assembly:
PCB Assy D54380-1 Rev A, SCH D54381
Date Code:
9649 (Week 49, 1996)
Revision:
E
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; no cables included.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
STS D61486-01 Serial Summary Alarm rackmount chassis. Inspected and in good used condition. Normal cosmetic wear; front-panel LEDs and controls intact, rear connectors undamaged.
View AllClose

Related Products

Related Products

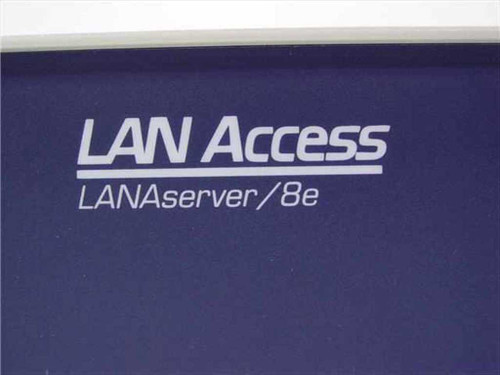

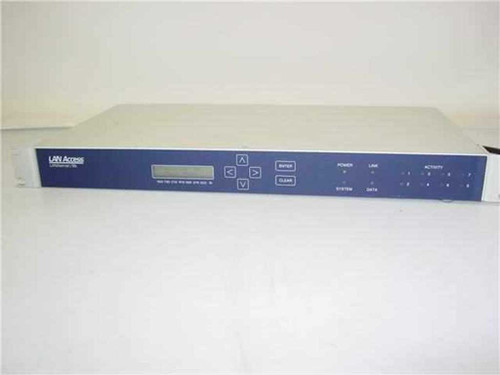

LAN Access LANAserver/8e 301-0002-01 8-port serial server – front panel 3/4 view showing LCD display and LED indicators LAN Access LANAserver/8e front panel logo close-up showing brand name and model designation
Add to Cart
Quick view

LAN Access LANAserver/8e 301-0002-01 8-Port RS-232 Serial Server Rackmount 1U

LAN Access

$75.00
Was: $150.00
LAN Access LANAserver/8e 301-0002-01 8-Port RS-232 Serial Server Rackmount 1USerial device server that converts RS-232 serial connections to network access. Enables remote management and data...
13200
SKU:
13200
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Brand:
LAN Access
Model:
LANAserver/8e
MPN:
301-0002-01
SKU:
13200
Type:
Serial Device Server / Async Terminal Server
Number of Ports:
8
Interface Type:
RS-232 (DB9)
Serial Signals:
RXD, TXD, CTS, RTS, DSR, DTR, DCD
Form Factor:
1U Rackmount
Display:
Front-panel LCD (Main Menu navigation)
Front Panel Controls:
Up/Down/Left/Right navigation, Enter, Clear
Port Indicators:
Per-port Link, Activity, and Data LEDs (ports 1-8)
Rear Connectors:
8x DB9 serial ports, 1x DB15 (LAN), IEC AC inlet
Management Type:
Managed
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included. Please view photos.
Country/Region of Manufacture:
United States
Condition Notes:
LAN Access LANAserver/8e 301-0002-01 8-port serial server. Pulled from a working environment; inspected and in good used condition. All 8 DB9 ports and rear connectors appear intact. Normal rack-wear visible. No accessories included.

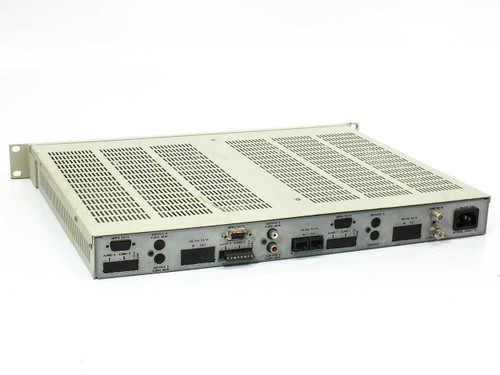

Wegener Communications 1851-01-0 Auxiliary Mainframe – front panel angled view showing Power and CH1–CH6 indicators Wegener Communications 1851-01-0 Auxiliary Mainframe – rear panel angled view showing MPEG Data, RS-422, audio, and power connectors
