Steag Hamatech First Light 24-Channel I/O Servo Motor Cards Chassis 0523 0517A
Servo motor control card set for DVD and optical disc manufacturing automation systems. This rack-mount chassis contains seven I/O cards that manage motor control signals and input/output operations in disc replication equipment.
Specifications & What's Included
- Chassis with 7 card slots (Rack A–F plus Servo slot)

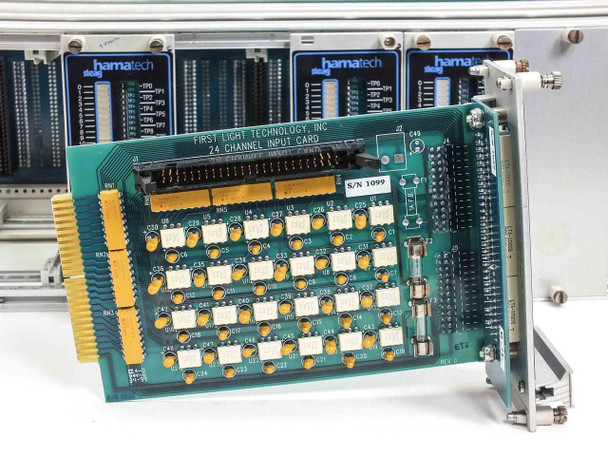

- Three 24-Channel Input Cards (P/N 0523)

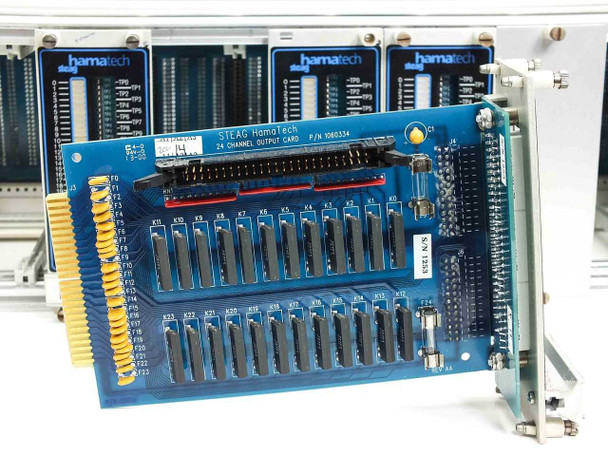

- Three 24-Channel Output Cards (P/N 0517A)

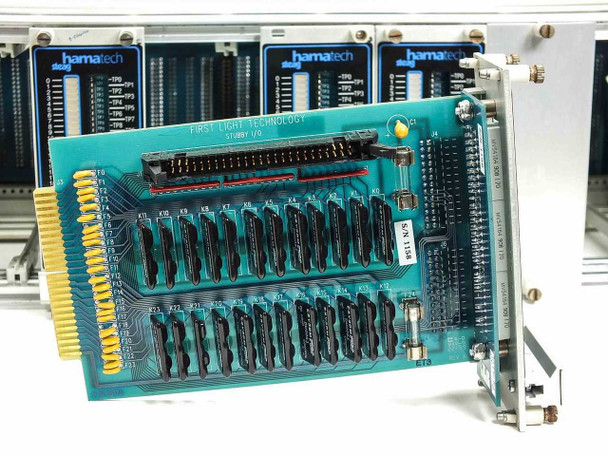

- One Dedicated I/O Card (P/N 0474)
- Two backplates (P/Ns 0514A, 1060162 Rev A)

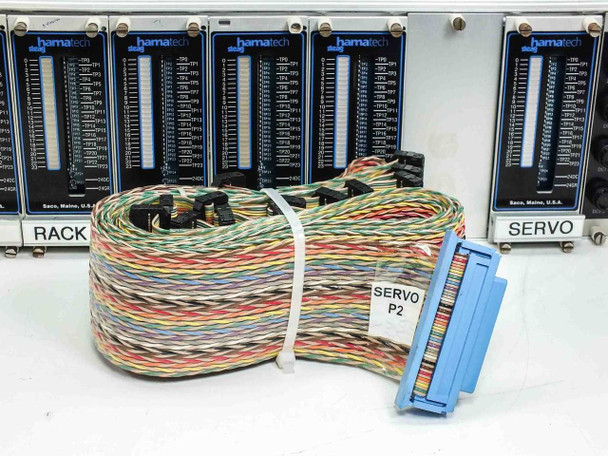

- Servo P2 ribbon harness cable
- 24 VDC power supply voltage

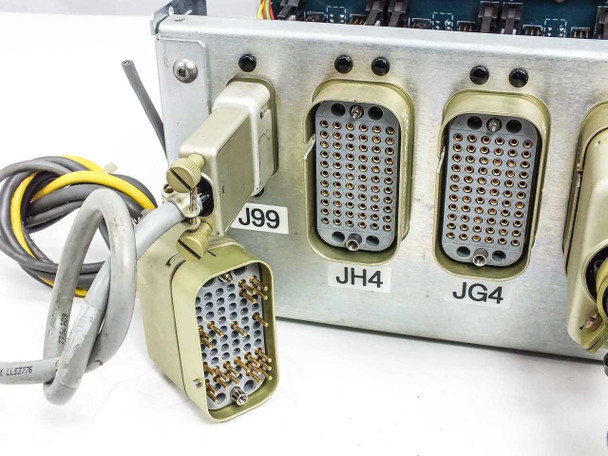

- Military-style multi-pin connectors (J99, JH4, JG4)
- U.S. manufacture (Made in Maine)
Applications
This card set was designed for Steag Hamatech First Light disc replication systems, which automated the manufacturing process for optical media including DVDs and similar formats. The I/O and servo control cards managed motor operations and equipment synchronization on production lines. Typical installations included multiple card types working in concert to control spindle motors, positioning actuators, and sensor inputs across the replication process.

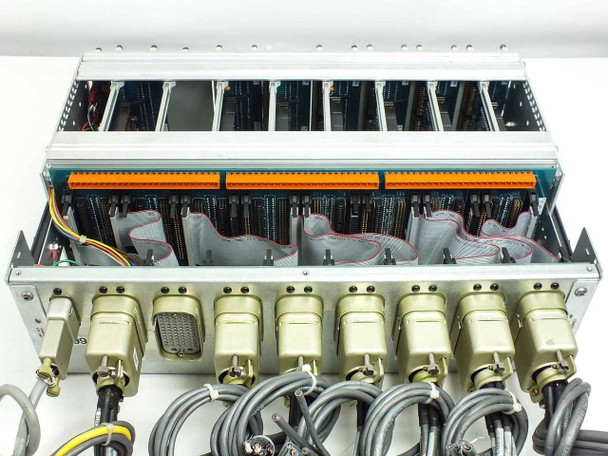

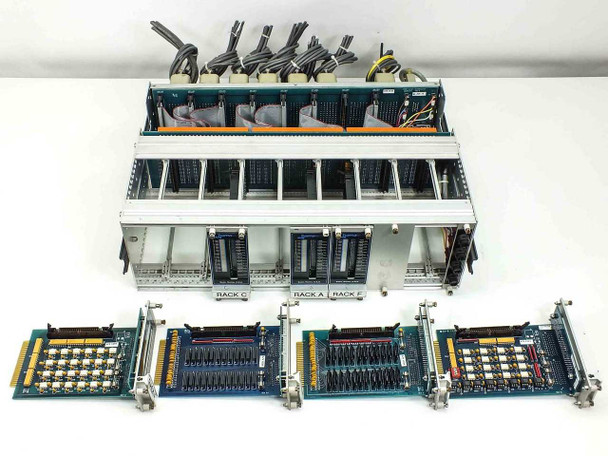

This Steag Hamatech First Light 24-Channel I/O Servo Motor Card set with chassis has been inspected and is in good used condition. The chassis, all seven I/O cards (three P/N 0523 input cards, three P/N 0517A output cards, and one P/N 0474 dedicated I/O card), both backplates (P/N 0514A and P/N 1060162 Rev A), and the Servo P2 ribbon harness cable are all present. The cards and chassis show normal wear consistent with prior use in a production environment — cosmetic marks on the aluminum chassis frame are visible in the photos, and the card PCBs appear clean with no obvious damage. The multi-pin military-style connectors on the rear (J99, JH4, JG4) appear intact. Please view our photo set and contact us if you have any questions.
