Description
Stainless Steel Vacuum Drive Unit Hurst 4 RPM Motor 15V 60Hz 3W 2x25.75 Tube
This is a stainless steel rotary vacuum drive unit designed for use inside or on a vacuum chamber, consisting of a long stainless steel drive tube coupled to a Hurst synchronous gear motor mounted at the top. The assembly passes rotary motion into a vacuum environment through a sealed feedthrough arrangement, allowing external motor power to drive an internal mechanism — a common configuration in vacuum deposition, thin-film processing, and scientific vacuum systems. A vacuum-compatible flange fitting at the lower section of the drive tube provides the chamber interface.
Specifications & What's Included
- Motor Brand: Hurst, Princeton, Indiana
- Motor Model: Model A
- Motor Part Number: 3002-0005
- Motor Speed: 4 RPM (synchronous)
- Motor Voltage: 15V
- Motor Frequency: 60 Hz
- Motor Power: 3W
- Motor Date Code: 12/88 (December 1988)
- Drive Tube: 2" diameter x 25.75" long, stainless steel
- Motor Cover: approximately 5.75" x 6.5"
- Material: Stainless steel construction throughout

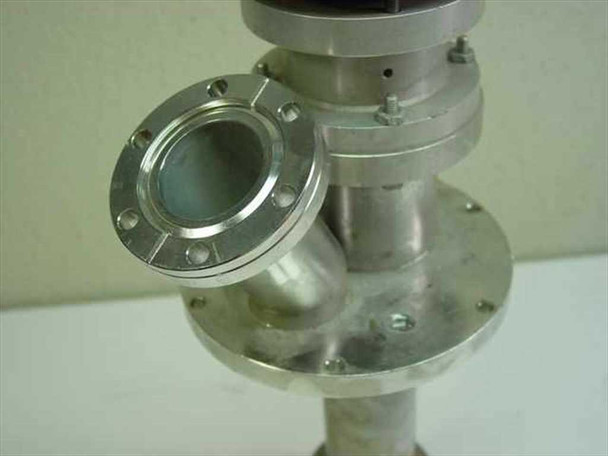

- Flange fitting: Vacuum-compatible flange at lower drive tube section (conflat-style bolt pattern visible in photos)
- Wiring: Motor lead wires present (red, blue, white visible in photos)
- Internal drive mechanism: Gear reduction linkage and drive shaft assembly visible inside motor cover
Applications
Motorized vacuum feedthrough drive units like this are used in vacuum chambers for thin-film deposition, physical vapor deposition (PVD), sputtering, and other vacuum processing systems where a slow, controlled rotation is needed inside the chamber — for example, rotating a substrate holder, sample stage, or source shutter. The Hurst synchronous motor series has been a long-running choice for these applications because of its precise, low-speed synchronous rotation and compact form factor. At 4 RPM, this unit is suited for applications requiring slow, steady rotation of in-chamber components. The stainless steel construction is appropriate for vacuum-compatible environments where outgassing and chemical compatibility are concerns. Systems of this type have been widely used in semiconductor research, optical coating, and university laboratory vacuum setups from the 1980s onward and remain in service in legacy and research vacuum systems today.
This stainless steel vacuum drive unit with Hurst 4 RPM motor has been inspected and is in good condition. The unit shows normal wear consistent with previous lab or vacuum system use, including some surface oxidation and discoloration on the lower drive shaft and flange area, as visible in the photos. The Hurst Model A motor (P/N 3002-0005) and internal drive mechanism appear intact, with wiring leads present. The vacuum flange fitting and drive tube show no obvious damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Hurst |
Model: |
Model A |
MPN: |
3002-0005 |
SKU: |
33726 |
Type: |
Vacuum Chamber Rotary Drive Unit |
Motor Brand: |
Hurst |
Motor Speed: |
4 RPM |
Voltage: |
15V |
Frequency: |
60 Hz |
Power Rating: |
3W |
Drive Tube Dimensions: |
2" diameter x 25.75" long |
Motor Cover Dimensions: |
5.75" x 6.5" |
Material: |
Stainless Steel |
Application: |
Vacuum Chamber Rotary Drive / Feedthrough |
Flange Type: |
Conflat-style / KF flange (visible in photos) |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Drive unit with Hurst motor attached; no additional accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Stainless steel vacuum drive unit with Hurst 4 RPM Model A motor (P/N 3002-0005) inspected and in good condition. Normal lab wear; surface oxidation on lower shaft/flange. Motor and drive mechanism intact with wiring leads present. |
