Description
Stainless Steel Braided Flexible Hose 3/4" Dia 10.5" High Pressure w/ Fittings

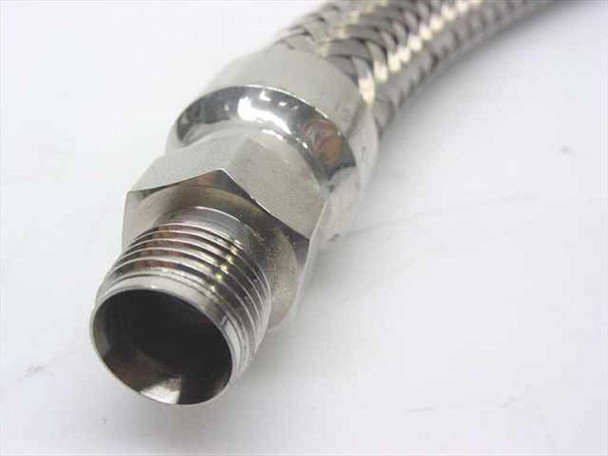

This is a stainless steel wire-braided flexible hose assembly measuring approximately 3/4" inner diameter and 10.5" in overall length. Both ends terminate in polished stainless steel male compression/NPT-style fittings. The braided outer jacket provides pressure reinforcement and flexibility, making the assembly suitable for high-pressure fluid and gas transfer applications.
Specifications & What's Included
- Hose type: High-pressure flexible braided hose assembly
- Inner diameter: 3/4"
- Overall length: approximately 10.5"
- Jacket material: Stainless steel wire braid
- Fitting material: Polished stainless steel
- Fitting type: Male compression / NPT-style, both ends
- End configuration: Male × Male

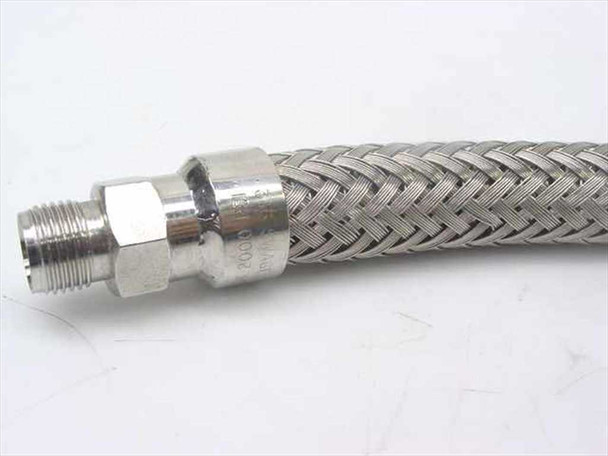

- Pressure rating: High pressure (rating stamp visible on fitting body)
- Included: Hose assembly only — no additional hardware or adapters
Applications
Stainless steel braided flexible hose assemblies like this one are used across laboratory, industrial, and process-control settings where a short, flexible, high-pressure connection is needed between rigid components. Common uses include gas and fluid transfer lines in analytical lab equipment, vacuum and pressure systems, hydraulic test rigs, semiconductor process equipment, and compressed-gas plumbing. The stainless braid resists corrosion and adds mechanical protection, and the all-stainless construction makes this type of assembly compatible with aggressive chemicals and high-purity gas service. At 10.5" in length, this is a short jumper-style assembly suited for tight equipment connections or apparatus tie-ins where a rigid line would be impractical.
This stainless steel high pressure braided flexible hose has been inspected and appears to be in good used condition. The stainless braid jacket and both male compression fittings show no significant damage — fittings are clean and threads appear intact. Some minor surface scuffing typical of used hardware may be present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Stainless Braided Flex Hose 3/4" x 10.5" |
Type: |
High Pressure Braided Flexible Hose Assembly |
SKU: |
31344 |
Hose Inner Diameter: |
3/4" |
Hose Length: |
10.5" (approximately) |
Hose Material: |
Stainless Steel Braided |
Fitting Type: |
Male Compression / NPT Fittings, Both Ends |
Fitting Material: |
Stainless Steel |
Pressure Rating: |
High Pressure (rating visible on fitting — approx. 2000 PSI) |
End Configuration: |
Male x Male |
Seller Notes: |
Hose assembly with male compression fittings on both ends. No additional hardware included. |
Condition Notes: |
This stainless steel braided flexible hose has been inspected and is in good used condition. Braid jacket intact, compression fittings on both ends are clean with no visible thread damage. Minor surface wear typical of used hardware. |
