Description

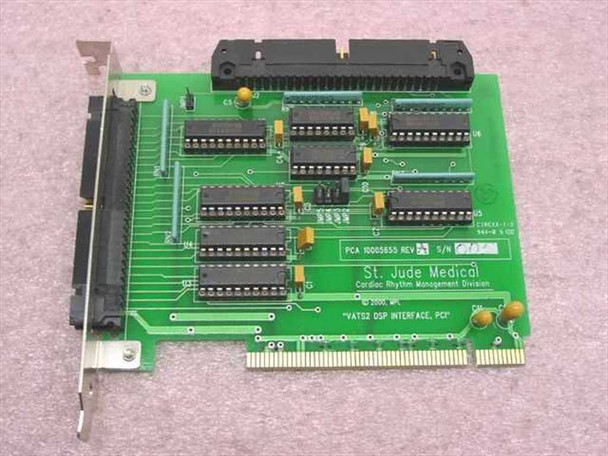

St. Jude Medical VATS2 DSP Interface PCI Card PCA 10005655 Rev A CRM
The St. Jude Medical VATS2 DSP Interface PCI Card (PCA 10005655, Rev A) is a PCI bus expansion card produced by St. Jude Medical's Cardiac Rhythm Management (CRM) Division. Silkscreened on the board as "VATS2 DSP INTERFACE, PCI" and dated 2000 (MPL), this card served as a digital signal processing interface within St. Jude Medical's VATS2 cardiac monitoring or programming system infrastructure. The PCB was manufactured by Cirexx International to UL 94V-0 flammability standards.
Specifications & What's Included
- Manufacturer: St. Jude Medical, Cardiac Rhythm Management Division
- Board designation: VATS2 DSP Interface, PCI
- PCA part number: 10005655
- Hardware revision: Rev A
- Bus interface: PCI (standard PCI gold-finger edge connector)
- PCB manufacturer: Cirexx International (ref: Cirexx-1-2, 94V-0)
- Copyright date: 2000, MPL
- Connectors: two high-density external header connectors on the card bracket (visible front panel)
- Internal header: one shrouded connector on the component side
- Multiple DIP ICs and supporting passive components visible on the component side
- Card only — no cables or accessories included
Applications
The VATS2 system was a St. Jude Medical platform used within their Cardiac Rhythm Management division for device programming, testing, or signal analysis of implantable cardiac devices such as pacemakers and defibrillators. DSP interface cards of this type provided the digital signal processing bridge between a host PC and the proprietary hardware in the VATS2 system, enabling communication with and evaluation of CRM devices. This card would be of primary interest to biomedical engineers, field service technicians, and hospital equipment repair departments maintaining legacy St. Jude Medical VATS2 infrastructure, or to researchers sourcing OEM replacement boards for this system. Given its specialized medical-device origin, it is not a general-purpose PCI card and is intended only for use within the VATS2 system it was designed for.
This St. Jude Medical VATS2 DSP Interface PCI Card (PCA 10005655 Rev A) has been inspected and appears to be in good condition. The PCB shows typical light handling wear consistent with normal use. No visible damage to the PCI edge connector, ICs, or solder joints. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
Additional Information
Brand: |
St. Jude Medical |
Model: |
VATS2 |
MPN: |
PCA 10005655 |
SKU: |
19267 |
Type: |
DSP Interface PCI Card |
Hardware Revision: |
Rev A |
Interface: |
PCI |
Form Factor: |
PCI Expansion Card |
Division / OEM: |
Cardiac Rhythm Management Division |
PCB Reference: |
Cirexx-1-2 94V-0 5 100 |
Copyright / Date: |
2000, MPL |
Condition: |
Used – Inspected and Pulled from Working Environment |
Seller Notes: |
Card only; no accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
St. Jude Medical VATS2 DSP Interface PCI Card PCA 10005655 Rev A. Inspected, appears in good condition. Light handling wear only; no visible damage to the PCI connector or ICs. |
