Description
Square D SY/MAX RIM-331 8030 High Speed Counter Module 24VDC Series 1 PLC
High-speed counter input module for Square D SY/MAX Class 8030 Series 1 PLC systems. Processes 24VDC counter inputs for monitoring pulse counts and frequency measurements in industrial automation and process control applications.
Specifications & What's Included
- Model: RIM-331 (MPN: 75122-526-50)
- Input Voltage: 24VDC
- Operating Temperature: 0–60°C
- Certifications: UL Listed, FM Approved, SA; CL I DIV 2 GP ABCD Hazardous Locations rated
- Manufactured: United States
- Module only; no documentation or housing included
Applications
High-speed counter modules connect to PLC analog or digital input slots to track encoder outputs, flow meter pulses, production line speeds, and event tallies. Standard in manufacturing, water treatment, and hazardous-area process automation where Square D 8030 systems manage discrete or continuous monitoring. Compatible with SY/MAX Series 1 ladder logic programming and legacy industrial control networks.

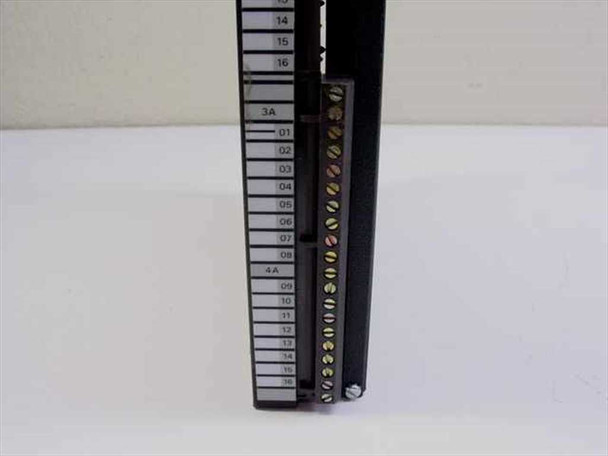

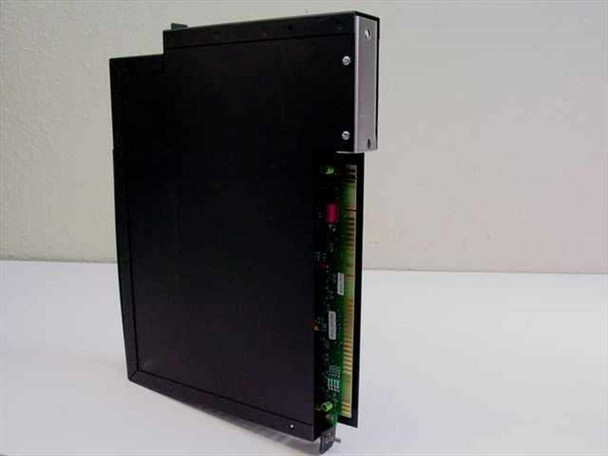

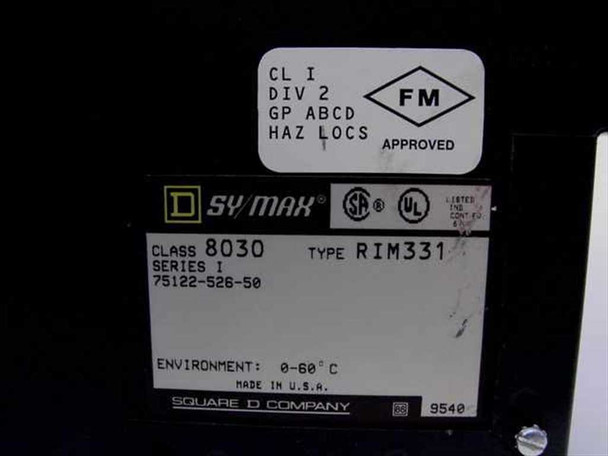

This Square D SY/MAX RIM-331 Class 8030 High Speed Counter Module has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The module body and terminal blocks show normal wear consistent with installed industrial use. The front label and back rating plate are intact and fully legible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Square D |
Model: |
RIM-331 |
MPN: |
75122-526-50 |
Secondary Model: |
8030-RIM331 |
SKU: |
31493 |
Type: |
High Speed Counter Module |
Series: |
SY/MAX Class 8030 Series 1 |
Input Voltage: |
24VDC |
Form Factor: |
Card / Module |
Compatible With: |
Square D SY/MAX Class 8030 PLC Systems |
Environment Rating: |
0-60°C |
Certifications: |
FM Approved, SA, UL Listed |
Hazardous Location Rating: |
CL I, DIV 2, GP ABCD, HAZ LOCS |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Module only; pulled from a working environment where it was functional. |
Condition Notes: |
Square D SY/MAX RIM-331 8030 High Speed Counter Module. Used, inspected, good condition. Pulled from a working environment where it was in use and functional. Normal wear. Photos available. |
