Square D FAL34050 Thermal Magnetic Circuit Breaker 50A 3-Pole 480V FAL Series
The Square D FAL34050 is a 50-amp, 3-pole thermal magnetic molded case circuit breaker (MCCB) from Square D's FAL series. Thermal magnetic circuit breakers use a bimetallic strip to trip on sustained overloads and an electromagnetic mechanism for fast response to high-level short-circuit faults, providing dual-mode overcurrent protection in a compact molded case. This unit is rated for 480V AC / 250V DC service and carries UL, CSA, and NEMA listings as well as IEC 157-1 Square D certification for international applications.
Specifications & What's Included
- Model: FAL34050
- Series: FAL, Series 2
- Issue: RT-40
- Amperage: 50A
- Poles: 3-Pole
- Voltage Rating: 480V AC / 240V AC / 250V DC
- Temperature Rating: 40°C

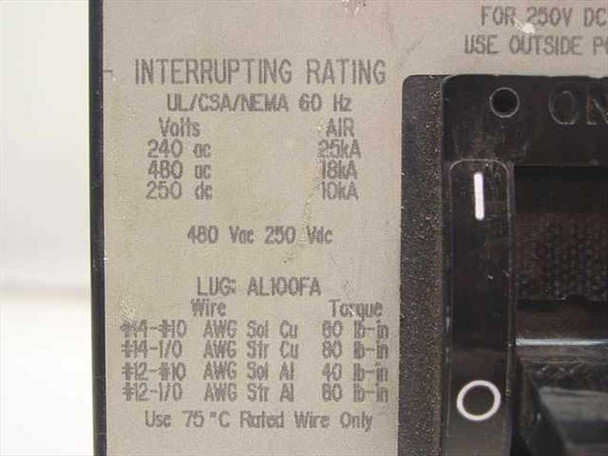

- Interrupting Rating (UL/CSA/NEMA, 60Hz): 240V AC — 25kA AIR; 480V AC — 18kA AIR; 250V DC — 10kA AIR

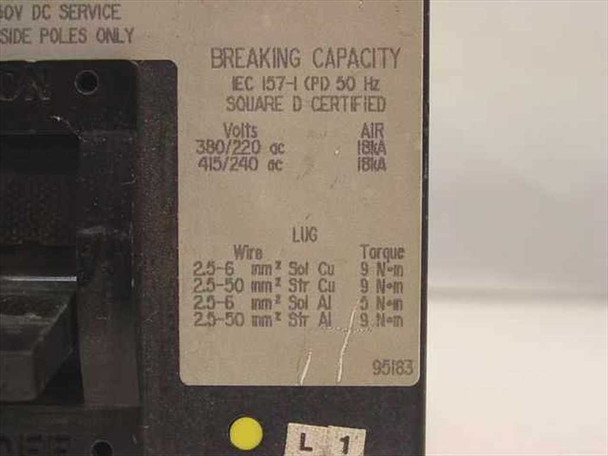

- Breaking Capacity (IEC 157-1 PD 50Hz, Square D Certified): 380/220V AC — 18kA AIR; 415/240V AC — 18kA AIR
- DC Service Note: For 250V DC service, use outside poles only
- Lug Type: AL100FA
- Wire Range (Copper): #4–#10 AWG Sol/Str Cu; 2.5–6 mm² and 2.5–50 mm² Sol/Str Cu — 80 lb-in / 9 N·m torque
- Wire Range (Aluminum): #12–#10 AWG Sol/Str Al; 2.5–6 mm² (5 N·m) and 2.5–50 mm² (9 N·m) Sol/Str Al — 40–80 lb-in torque
- Wire Temperature Rating: 75°C rated wire only
- Standards: UL Listed, CSA, NEMA 60Hz; IEC 157-1 (PD 50Hz) Square D Certified
- Country of Manufacture: USA
- Includes: Breaker only — no mounting hardware or accessories
Applications
The Square D FAL series is a line of molded case circuit breakers widely used in commercial and industrial power distribution panels, motor control centers, and switchboards. Three-pole MCCBs like the FAL34050 protect three-phase branch circuits and feeder circuits from overloads and short circuits, and are commonly installed in 208V, 240V, and 480V three-phase electrical distribution systems. The FAL frame is suited for applications including HVAC equipment protection, industrial machinery branch circuits, and panel feeder protection in manufacturing, commercial building, and utility environments. The IEC certification makes this unit suitable for both North American and international installations.
This Square D FAL34050 Thermal Magnetic Circuit Breaker is in good used condition. It was pulled from a working environment where it was previously in service. The unit has been visually inspected and shows normal wear consistent with prior industrial use — the molded case is intact, the toggle mechanism moves freely, and the label is present and fully legible. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Square D |
Model: |
FAL34050 |
MPN: |
FAL34050 |
Type: |
Thermal Magnetic Molded Case Circuit Breaker (MCCB) |
SKU: |
22309 |
Series: |
FAL Series 2 |
Amperage: |
50A |
Number of Poles: |
3-Pole |
Voltage Rating (AC): |
480V AC / 240V AC |
Voltage Rating (DC): |
250V DC |
Interrupting Rating (240V AC): |
25kA AIR |
Interrupting Rating (480V AC): |
18kA AIR |
Interrupting Rating (250V DC): |
10kA AIR |
Breaking Capacity (IEC 157-1, 50Hz): |
18kA AIR @ 380/220V AC and 415/240V AC |
Standards: |
UL, CSA, NEMA 60Hz; IEC 157-1 (PD 50Hz) Square D Certified |
Issue / Revision: |
Issue RT-40 |
Temperature Rating: |
40°C |
Lug Type: |
AL100FA |
Wire Range (Copper): |
#4-#10 AWG Sol/Str Cu, 2.5-6 / 2.5-50 mm² Sol/Str Cu |
Wire Range (Aluminum): |
#12-#10 AWG Sol/Str Al, 2.5-6 / 2.5-50 mm² Sol/Str Al |
Wire Temperature Rating: |
75°C Rated Wire Only |
Lug Torque (Cu): |
80 lb-in (AWG) / 9 N·m (mm²) |
Lug Torque (Al): |
40–80 lb-in (AWG) / 5–9 N·m (mm²) |
DC Service Note: |
For 250V DC service — use outside poles only |
Country/Region of Manufacture: |
United States |
Form Factor: |
Molded Case, Panel/Board Mount |
Seller Notes: |
Breaker only — no mounting hardware or accessories included. |
Condition Notes: |
This Square D FAL34050 50A 3-Pole Thermal Magnetic Circuit Breaker is in good used condition, pulled from a working environment. Case is intact, toggle moves freely, label is legible. Please contact us with any questions. |
