Square D

Square D 80102-147-50 Type 1 Panelboard Enclosure 225A 208/120V NQOD 42-Circuit

(No reviews yet) Write a Review
SKU:
44131
MPN:
80102-147-50
Condition:
Used
Availability:
Usually ships within 3-5 business days due to size and weight — contact us for freight options.
Weight:
135.00 LBS
Shipping:
Calculated at Checkout
  • Square D 80102-147-50 Type 1 panelboard enclosure — full front view showing RP-2C label, 225A 208/120V rating, and dual cabinet doors

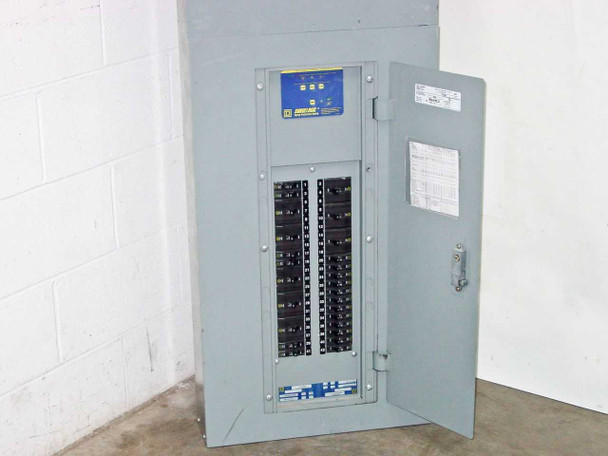

  • Square D NQOD panelboard with upper door open showing full breaker array, blue rating label, and circuit directory card on door
  • Square D 80102-147-50 upper section open — main 225A breaker visible with RP-2C identification label and part number barcode sticker

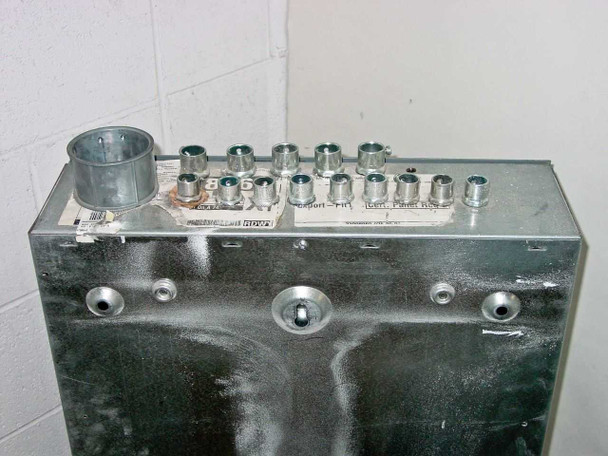

  • Top of Square D Type 1 panelboard enclosure showing multiple conduit knockouts and wire entry points
  • Close-up of Square D NQOD panelboard blue rating label showing Cat. No. 12230980600260001, Series E2, 225A, 208/120V AC, 3-phase
  • Type 1 enclosure interior label showing NQOD series, MHC35S cabinet front, Square D branding, Made in USA, part 80045-104-01, Issue R-4031
  • Circuit directory card for RP-2C panel showing all 42 circuit assignments, load descriptions, KVA, amperage, and panel totals for clean room installation
  • Square D 80102-147-50 panelboard interior back panel removed and leaning against wall showing galvanized steel construction and mounting holes
$1,100.00
Was: $2,200.00
Current Stock: 1

Sold Out

Description

Square D 80102-147-50 Type 1 Panelboard Enclosure 225A 208/120V NQOD 42-Circuit

A three-phase distribution panelboard with 225A main breaker rated at 208/120V AC. This NQOD series enclosure houses 42 circuits with a full complement of installed breakers and supports typical commercial/industrial electrical distribution applications.

Specifications & What's Included

  • Type 1 (NEMA 1) indoor enclosure, 67" H × 21" W × 6" D
  • Main breaker: 225A, 208/120V; interrupt rating 10kAIC
  • 42 total circuits: one 40A 3-pole, one 30A 3-pole, six 20A 3-pole, eighteen 20A single-pole breakers installed
  • Three-phase configuration, UL listed
  • Floor-standing or wall-mount capable
  • Circuit directory card included; panelboard key not included

Applications

Type 1 panelboards distribute three-phase power in indoor commercial and light industrial facilities where NEMA 1 protection is sufficient. Square D NQOD panels were commonly installed in office buildings, manufacturing plants, and utility substations for branch circuit protection and load management. The 225A capacity with mixed breaker configurations supports facilities requiring both three-phase equipment and single-phase branch circuits from a 208/120V source.

Condition: Used
This Square D 80102-147-50 NQOD Type 1 panelboard enclosure has been inspected and appears to be in good used condition. The enclosure is structurally sound with no visible damage to the cabinet body. All circuit breakers are installed as described. The original circuit directory card is present and legible (visible in photos). Please note that no key is included with this panel. The top of the enclosure shows some surface scuffing and residue around the conduit knockouts, consistent with prior installation. Please view our complete photo set and contact us if you have any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Square D
Model:
80102-147-50
MPN:
80102-147-50
Secondary Model:
12230980600260001
Type:
Type 1 Panelboard Enclosure with Circuit Breakers
SKU:
44131
Panel Series:
NQOD
Cabinet Front Model:
MHC35S
Interior Series:
E2
Issue No.:
R-4031
Enclosure Type:
Type 1 (NEMA 1) Indoor
Voltage Rating:
208/120V AC
Main Breaker Rating:
225A
Number of Circuits:
42
Phase:
Three Phase
Interrupt Rating:
10kAIC
Breaker Config 1:
Main: 225A, 208/120V (Qty 1)
Breaker Config 2:
40A 3-Pole 240V 10kAIR (Qty 1)
Breaker Config 3:
30A 3-Pole 240V 10kAIR (Qty 1)
Breaker Config 4:
20A 3-Pole 240V 10kAIR (Qty 6)
Breaker Config 5:
20A Single Pole 120/240V 10kAIR (Qty 18)
External Dimensions:
67 x 21 x 6 inches
Mounting:
Floor-standing / Wall-mount
Country/Region of Manufacture:
USA
UL Listed:
Yes
Key Included:
No
Condition:
Used – Inspected
Seller Notes:
Loaded panelboard with all breakers installed. Key not included.
Condition Notes:
Square D 80102-147-50 NQOD Type 1 panelboard inspected and in good used condition. All breakers installed. Circuit directory card present. No key included. Surface wear consistent with prior installation.
