SPX Deltech HG25-115 Non-Cycling Refrigerated Compressed Air Dryer 25 SCFM

SPX Deltech HG25-115 Non-Cycling Refrigerated Compressed Air Dryer 25 SCFM

The SPX Deltech HG25-115 is a non-cycling refrigerated compressed air dryer rated at 25 SCFM at 100 PSIG and 100°F. It removes moisture from compressed air lines by cooling the air through a refrigeration circuit, causing water vapor to condense and drain, then reheating the dried air before it returns to the system. Unlike cycling-type dryers, non-cycling units run the refrigeration compressor continuously, making them straightforward and well-suited for applications with consistent air demand.

Specifications & What's Included

• Model: HG25-115
• Rated Flow Capacity: 25 SCFM @ 100 PSIG & 100°F (43 SCFM @ 6.9 BAR & 38°C)
• Maximum Working Pressure: 250 PSIG (17 BAR)
• Maximum Inlet Air Temperature: 130°F
• Dryer Type: Non-Cycling Refrigerated
• Power: 115V, Single-Phase, 60 Hz
• Minimum Circuit Ampacity: 12.0 A
• Maximum Overcurrent Protection (circuit breaker/fuse): 13.2 A
• Refrigerant: R-134a
• Refrigerant Charge: 7.00 oz (0.198 kg)
• Compressor Rated Load Amps (RLA): 6.0 A
• Compressor Locked Rotor Amps (LRA): 35.4 A

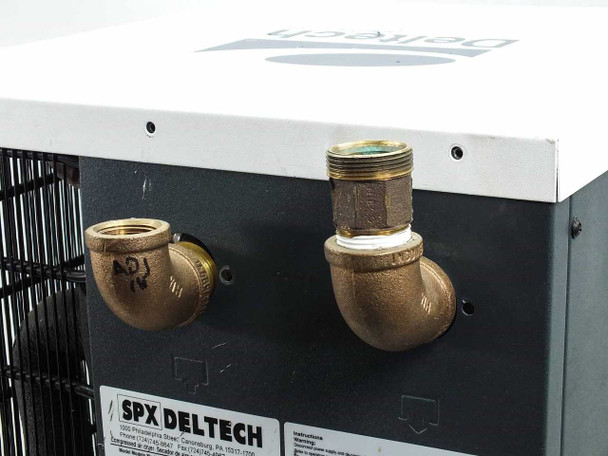

• Air Connections: Brass 90° NPT elbow fittings (top rear)

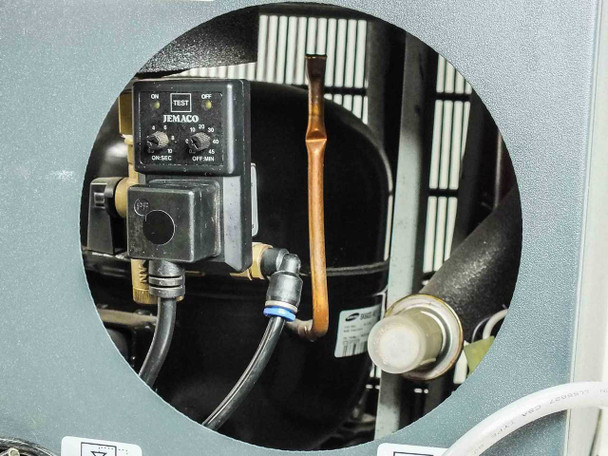

• Condensate Drain: Automatic timed solenoid drain (Jemaco timer module)
• Front Panel Controls: Green ON/OFF rocker switch; temperature status indicator switch
• Certification: CSA (File LR 21776)
• Form Factor: Freestanding floor unit on circular base
• Includes: Power cord

Applications

Refrigerated compressed air dryers like the HG25-115 are standard equipment in industrial compressed air systems wherever moisture in the air line would cause problems — including pneumatic controls, spray finishing, food and beverage processing, pharmaceutical manufacturing, and general manufacturing facilities. The HG25-115's 25 SCFM capacity makes it suited for small-to-medium compressor systems, typically paired with a reciprocating or rotary screw compressor in the 5–10 HP range. Non-cycling refrigerated dryers are widely used because they have no complex unloading mechanism and maintain a consistent pressure dew point across varying loads. The timed automatic condensate drain eliminates the need for manual draining, which is important in continuous-duty industrial environments. SPX Deltech (a brand within the SPX Flow portfolio) has been a long-standing manufacturer of compressed air treatment equipment including refrigerated dryers, desiccant dryers, filters, and coalescers.
