SPI Sparkle Power FSP235-61GT 235W ATX Switching Power Supply 115/230V

(No reviews yet) Write a Review
SKU:
21873
MPN:
FSP235-61GT
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

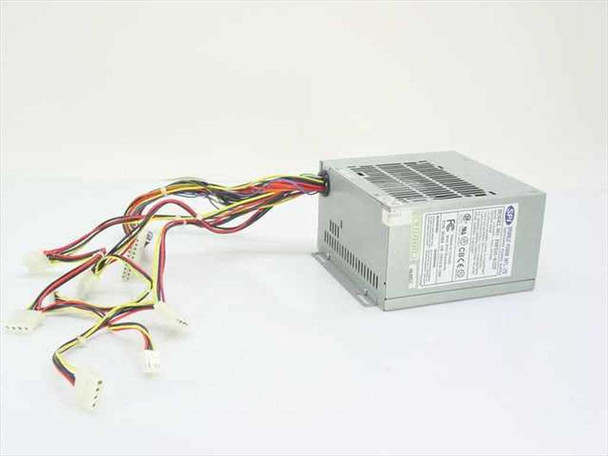

  • SPI FSP235-61GT 235W ATX switching power supply – three-quarter front view showing unit body and attached cable harness with Molex and Berg connectors

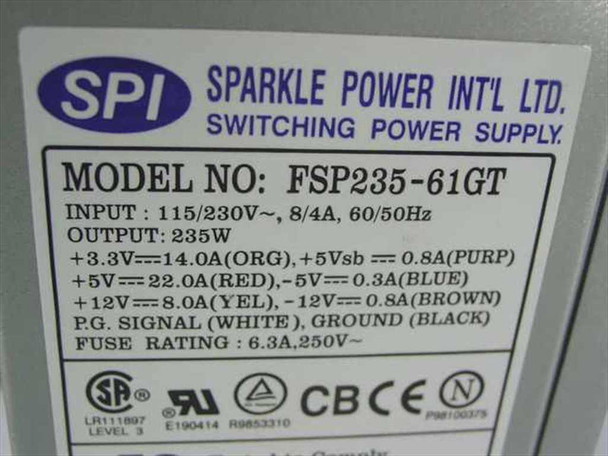

  • SPI FSP235-61GT specification label showing model number, input 115/230V 8/4A 60/50Hz, output 235W, and rail current ratings

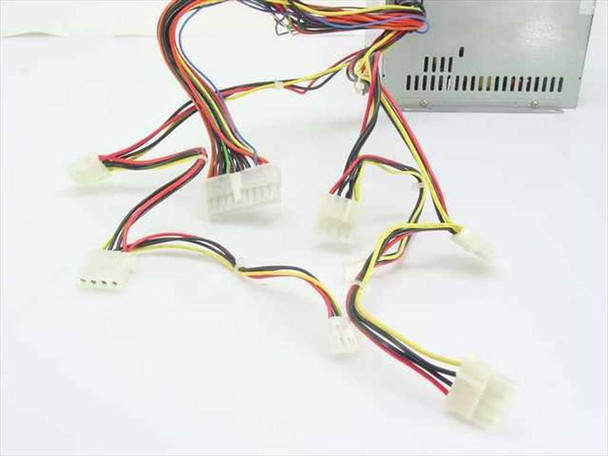

  • SPI FSP235-61GT ATX power supply – close-up of cable harness showing multiple Molex 4-pin drive connectors and Berg floppy connector
$30.00
Was: $60.00
Current Stock: 1

Sold Out

Description

SPI Sparkle Power FSP235-61GT 235W ATX Switching Power Supply 115/230V

235W ATX switching power supply with dual input voltage support (115/230V AC). Includes harness with Molex and Berg connectors attached.

Specifications & What's Included

  • Model: FSP235-61GT | 235W output
  • Input: 115/230V AC, 50/60Hz, 8A/4A
  • Rails: +3.3V (14A), +5V (22A), +12V (8A), -5V (0.3A), -12V (0.8A), +5Vsb (0.8A)
  • Connectors: ATX 20-pin, Molex 4-pin, Berg/floppy 4-pin
  • Certifications: UL, cUL, TUV, CB, CE
  • Origin: Taiwan

Applications

This ATX form factor supply was standard in desktop computers from the 1990s through early 2000s. Suitable for legacy ATX systems and retro computing builds. Not compatible with modern BTX or modern high-wattage ATX platforms. Typical use includes older Pentium-era through early Pentium 4 systems, some early Athlon platforms, and industrial/embedded ATX applications.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This SPI Sparkle Power FSP235-61GT 235W ATX Switching Power Supply has been inspected and appears to be in good used condition. The unit body shows light surface wear consistent with prior use, but there are no visible cracks, damage, or burnt connectors. The cable harness with Molex and Berg drive connectors appears intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SPI (Sparkle Power International)
Model:
FSP235-61GT
MPN:
FSP235-61GT
SKU:
21873
Condition:
Used – Inspected
Seller Notes:
Power supply only; harness with Molex and Berg connectors attached
Form Factor:
ATX
Power Output:
235W
Input Voltage:
115/230V AC, 60/50Hz, 8A/4A
Power Requirements:
115/230V AC, 60/50Hz, 8A/4A
+3.3V Rail:
14.0A
+5V Rail:
22.0A
-5V Rail:
0.3A
+5Vsb Rail:
0.8A
+12V Rail:
8.0A
-12V Rail:
0.8A
Fuse Rating:
6.3A, 250V
Connector Types:
ATX 20-pin, Molex 4-pin, Berg/floppy 4-pin
Certifications:
UL, cUL, TUV, CB, CE
Compatible With:
ATX desktop computers and chassis
Country of Manufacture:
Taiwan
Condition Notes:
SPI FSP235-61GT 235W ATX power supply inspected and in good used condition. Unit and cable harness show light wear; no visible damage. Please contact us with any questions.
