Sperry Microwave AN/UPM-12A X-Band Radar VSWR Test Set IM-104 PP-1227
X-band VSWR test set designed for measuring voltage standing wave ratio in radar systems and microwave equipment. Operates across the 8–12 GHz frequency range with a Weston Model 760 meter (500µA full scale).
Specifications & What's Included
- Frequency Range: X-Band (8–12 GHz)
- Measurement Type: VSWR
- Power Requirements: 115V, 50–1000 Hz, single phase
- Indicator: IM-104/UPM-12A
- Power Supply: PP-1227/UPM-12A
- Meter: Weston Model 760, FS=500µA
- Includes original carry case
Applications
This test set was used for X-band radar maintenance and VSWR measurement during system servicing and troubleshooting. Suitable for maintenance of military and commercial radar systems operating in the X-band frequency range, as well as microwave component testing and ham radio applications requiring VSWR measurement capability.
Condition: Used

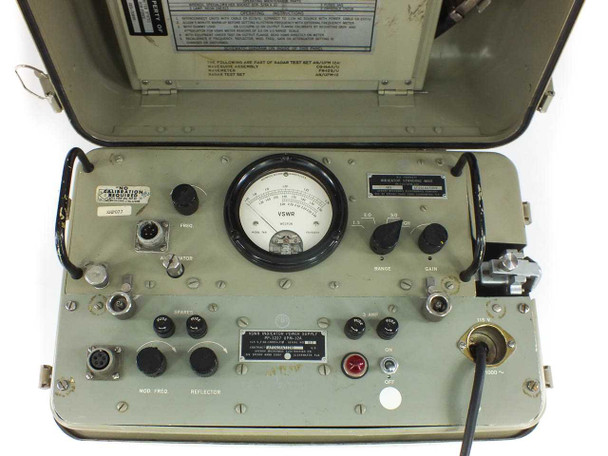

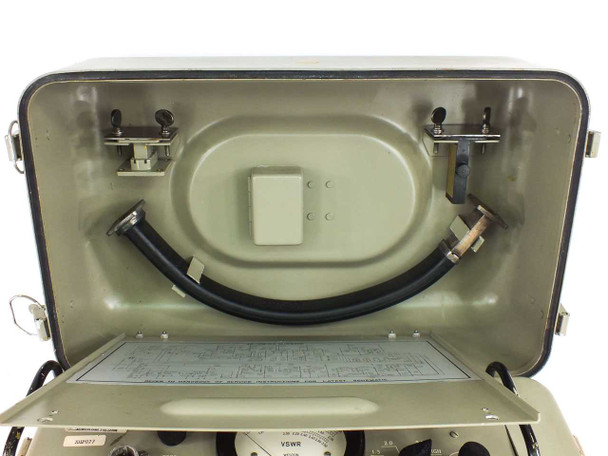

This Sperry Microwave AN/UPM-12A X-Band Radar VSWR Test Set has been inspected and appears to be in good used condition. The unit retains its original olive-drab carry case with latches and handle intact. The front panel shows typical wear for military surplus equipment of this era — some paint scuffs and minor surface marks are visible on the case exterior. The Weston Model 760 VSWR meter face is present and the scale is legible. The PP-1227 power supply section and IM-104 standing wave indicator are present and accounted for. A waveguide/coaxial cable is visible stored in the lid tray. The unit has not been powered up or tested at our facility but was pulled from a military surplus environment. Please view our photo set and contact us if you have any questions.
This Sperry Microwave AN/UPM-12A X-Band Radar VSWR Test Set has been inspected and appears to be in good used condition. The unit retains its original olive-drab carry case with latches and handle intact. The front panel shows typical wear for military surplus equipment of this era — some paint scuffs and minor surface marks are visible on the case exterior. The Weston Model 760 VSWR meter face is present and the scale is legible. The PP-1227 power supply section and IM-104 standing wave indicator are present and accounted for. A waveguide/coaxial cable is visible stored in the lid tray. The unit has not been powered up or tested at our facility but was pulled from a military surplus environment. Please view our photo set and contact us if you have any questions.
