Description
Spectra-Physics 2020-05 Series 2000 Tunable CW Dye Laser Head 1.5W 300-800nm
The Spectra-Physics 2020-05 is a continuous-wave (CW) tunable dye laser head from the Series 2000 system, rated at 1.5W output. It generates a highly coherent, narrowband beam whose wavelength can be tuned across a broad spectral range — from the UV/visible to near-infrared — by selecting a dye and adjusting the internal wavelength selector. The 2020-05 is the dye laser head only and requires a compatible Spectra-Physics pump laser and external power supply/controller to operate as a complete system.
Specifications & What's Included
- Manufacturer: Spectra-Physics Inc., Mountain View, CA
- Model: 2020-05 (Code: 2020)
- Series: Series 2000
- Laser type: Continuous-wave (CW) tunable dye laser head
- Output power: 1.5W
- Tunable wavelength ranges: 300–450 nm, 450–600 nm, 600–700 nm, 700–800 nm (selectable via front dial)
- Tuning controls: Coarse and Fine wavelength adjustment; Vertical and Horizontal beam alignment knobs
- Shutter: Yes — front-panel shutter toggle switch
- Power switch present on end panel

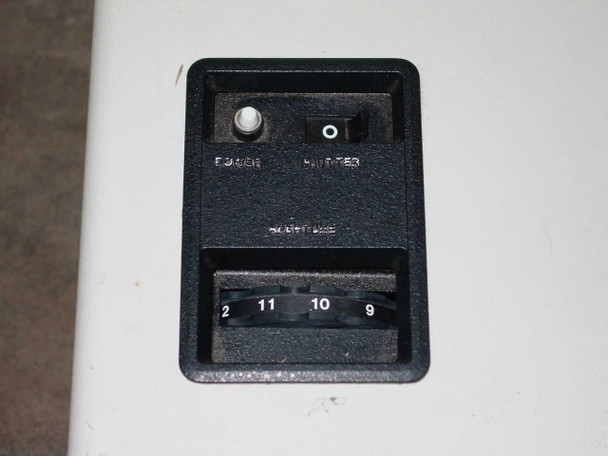

- Rotary selector wheel on end panel (positions visible: 9, 10, 11, 2)
- Cooling: Water-cooled — corrugated cooling hoses and black connector/junction block included
- Laser safety compliance: 21 CFR 1040

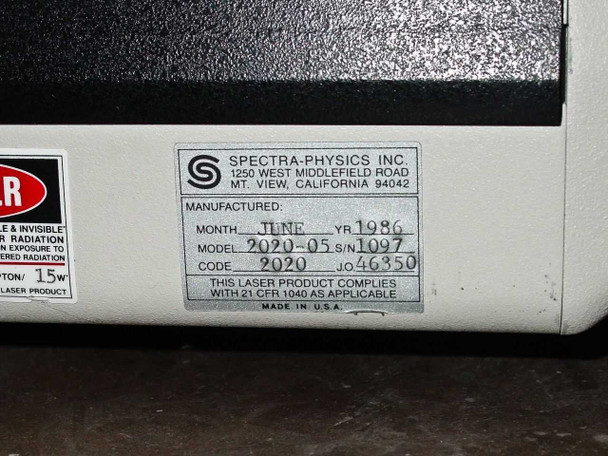

- Manufactured: June 1986 — Made in USA
- Includes: corrugated cooling hoses, connector block with brass coolant fittings, and one gray accessory cable (note: the accessory cable has damaged insulation with inner conductors frayed at one end — see photos)
- Note: Laser head only — pump laser, controller, and power supply are not included
Applications
The Spectra-Physics Series 2000 CW dye laser system was a mainstay of research laboratories from the late 1970s through the 1990s. Tunable dye lasers of this type are used in high-resolution laser spectroscopy, atomic and molecular physics experiments, photochemistry, fluorescence studies, and optical pumping. The broad tuning range — from UV through near-infrared depending on the dye used — makes them especially valuable in applications where a fixed-wavelength laser cannot provide the precise wavelength needed. The 2020-05 was commonly used alongside Spectra-Physics argon-ion or Nd:YAG pump lasers. These instruments continue to be used in research and teaching labs today, and surplus units are sought by university physics departments, spectroscopy labs, and researchers maintaining legacy optical setups.
This Spectra-Physics 2020-05 Series 2000 tunable dye laser head has been pulled from a working research environment and is being sold as surplus. The housing is in good cosmetic shape with typical surface wear consistent with lab use. The front panel controls — including the wavelength selector dial, shutter, coarse/fine/vertical/horizontal tuning knobs, and power switch — are all present and appear intact. Corrugated cooling hoses and the black connector/junction block are included. One gray accessory cable included with the unit has damaged insulation with the inner conductors frayed and exposed at one end — please see photos for detail. The brass coolant fitting on the connector block shows green oxidation inside the bore. The unit has not been powered or tested at our facility; buyers should plan for appropriate inspection and testing before use. Due to its size and weight, this item requires freight shipping — please contact us for a quote before purchasing. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Spectra-Physics |
Model: |
2020-05 |
MPN: |
2020-05 |
Secondary Model: |
Series 2000 |
Type: |
Tunable CW Dye Laser Head |
SKU: |
44291 |
Laser Type: |
Continuous Wave (CW) Tunable Dye Laser |
Wavelength Range: |
300–800 nm (tunable; 300-450, 450-600, 600-700, 700-800 nm) |
Output Power: |
1.5W |
Tuning Ranges: |
300-450 nm, 450-600 nm, 600-700 nm, 700-800 nm |
Tuning Controls: |
Coarse, Fine, Vertical, Horizontal wavelength adjustment |
Shutter: |
Yes — front-panel shutter switch |
Cooling: |
Water-cooled (corrugated hose fittings included) |
Date of Manufacture: |
June 1986 |
Laser Safety Compliance: |
21 CFR 1040 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Standalone Laser Head / Benchtop |
Seller Notes: |
Laser head only. Includes corrugated cooling hoses and connector block. Freight shipping required — contact us for a quote before purchasing. |
Application: |
Spectroscopy, atomic physics, photochemistry, research |
Compatible With: |
Spectra-Physics Series 2000 pump laser and controller system |
Condition Notes: |
Spectra-Physics 2020-05 Series 2000 dye laser head pulled from a working research environment. Housing is in good cosmetic condition. One included cable has frayed/damaged ends; coolant fitting shows oxidation. Not tested at our facility. |
