Description

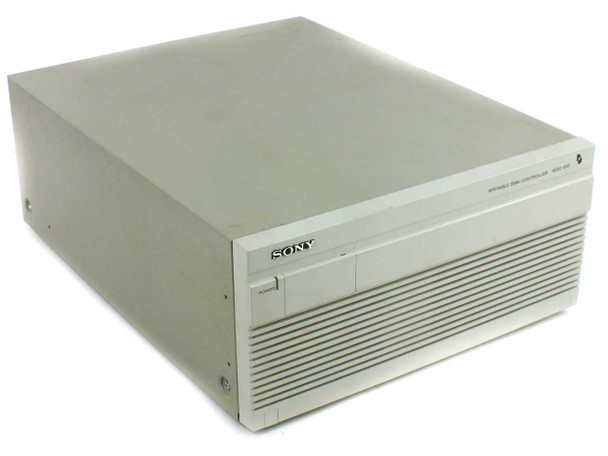

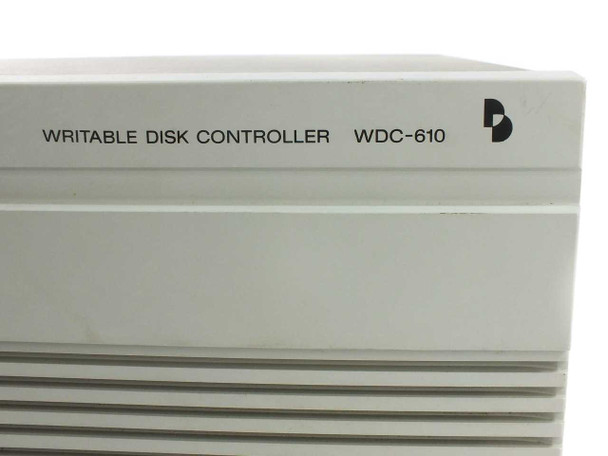

Sony WDC-610 Writable Disk Controller AC120V w/ Terminator-B IF-II 1-564-940-11
The WDC-610 is a writable disk controller designed for Sony professional optical and writable disk systems. It manages data transfer and control functions for compatible disk drives via parallel Centronics-style connectors.
Specifications & What's Included
- Model: WDC-610 (MPN 4-407-584-01)

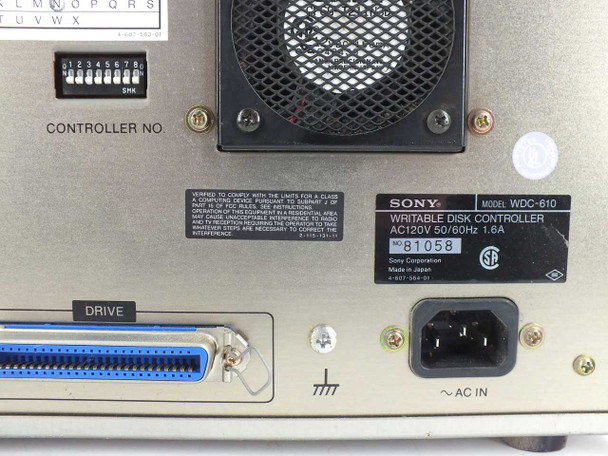

- Power: AC120V, 50/60Hz, 1.6A
- Interface: Parallel (Centronics-style)

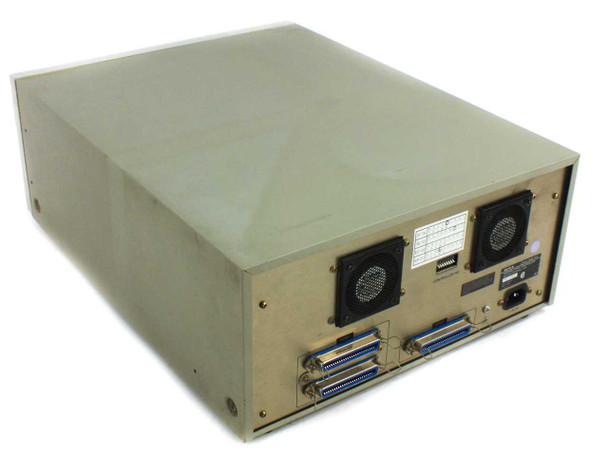

- Drive Ports: 3 (rear panel)
- Cooling: Dual rear-mounted fans

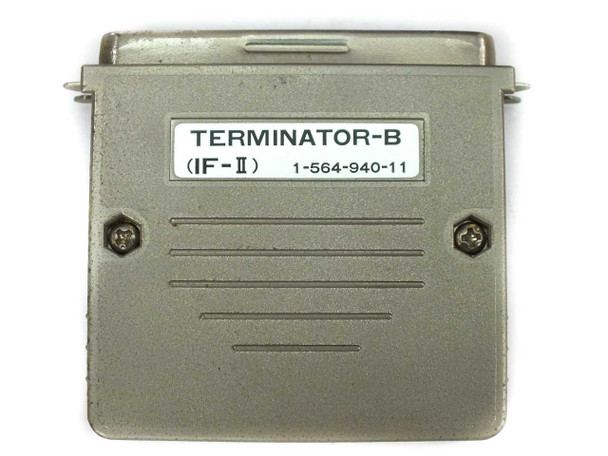

- Includes: Terminator-B IF-II adapter (PN 1-564-940-11)
- Country of Manufacture: Japan
Applications
The WDC-610 was used in professional Sony optical disk and writable disk storage systems, particularly in archival, broadcasting, and data storage environments from the 1990s through early 2000s. It serves as the control interface between host systems and Sony's proprietary disk drives. This controller is compatible with Sony professional optical/writable disk systems that use parallel Centronics connections.

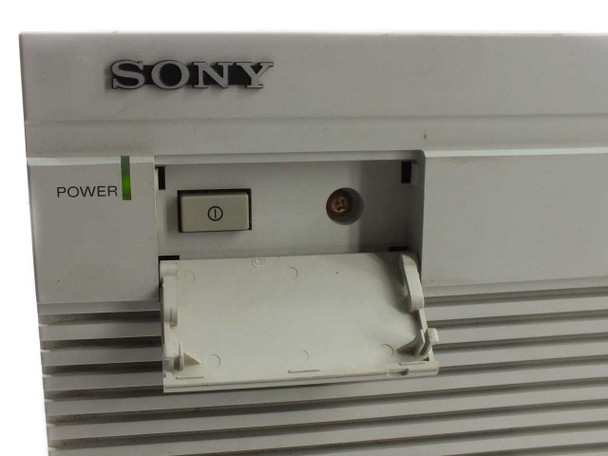

This Sony WDC-610 Writable Disk Controller has been inspected and is in good used condition. The unit powers on, the power indicator illuminates, and both cooling fans spin normally. We were not able to exercise all functional features during our evaluation, so it is being offered with that disclosure. Cosmetically, the enclosure shows light surface wear consistent with professional use. The Terminator-B IF-II adapter (PN 1-564-940-11) is included and in good physical condition. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sony |
Model: |
WDC-610 |
MPN: |
4-407-584-01 |
Secondary Model: |
1-564-940-11 |
SKU: |
52382 |
Type: |
Writable Disk Controller |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes Terminator-B IF-II adapter (PN 1-564-940-11) |
Country/Region of Manufacture: |
Japan |
Power Requirements: |
AC120V, 50/60Hz, 1.6A |
Form Factor: |
Desktop / Standalone Unit |
Interface Type: |
Parallel (Centronics-style connectors) |
Number of Drive Ports: |
3 (visible on rear panel) |
Cooling: |
Dual rear-mounted cooling fans |
Included Accessories: |
Terminator-B IF-II, PN 1-564-940-11 |
Compatible With: |
Sony professional optical/writable disk systems |
Condition Notes: |
This Sony WDC-610 Writable Disk Controller has been inspected and is in good used condition. The unit powers on, the power indicator illuminates, and both cooling fans spin normally. |
