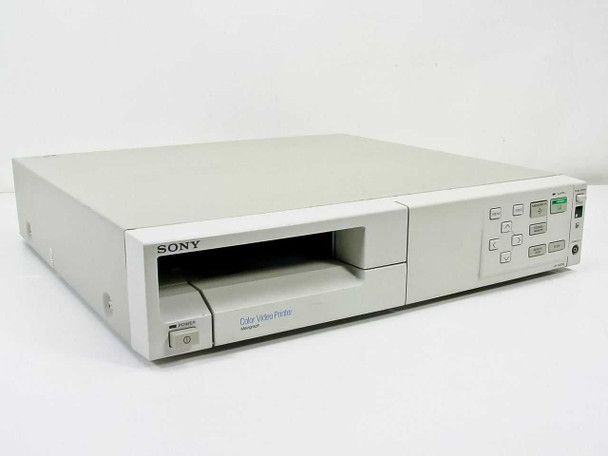

Sony UP-1200A Mavigraph Color Video Printer S-Video BNC Broken Hinge

Sony UP-1200A Mavigraph Color Video Printer S-Video BNC Broken Hinge

The Sony UP-1200A is a desktop dye-sublimation color video printer — part of Sony's Mavigraph line — designed to produce full-color hard-copy prints directly from video sources. It accepts both S-Video and composite BNC input signals, captures a video frame, and prints it using a dye-sublimation ribbon cartridge. A Sony UPC-1010DP color ribbon cartridge (cyan, magenta, yellow panels) is installed in this unit, and the printer produces good test prints from DVD input. Note: the flip-down access door used to load and unload the ribbon cartridge has a broken hinge on its right side; the door functions but does not close fully flush. See photos for a close-up of the damaged hinge.

Specifications & What's Included

• Manufacturer: Sony Corporation
• Model: UP-1200A (Mavigraph Color Video Printer)
• Part Reference: 3-188-132-01
• Power: 120V AC, 50/60 Hz, 1.8A
• Video Input: S-Video (4-pin Mini-DIN) + BNC Composite
• Video Output (loop-through): S-Video + BNC Composite
• 75-Ohm termination switch on rear panel (On/Off)
• Remote control ports: Remote 1 (3.5mm jack, front) and Remote 2 (3.5mm jack, rear)
• Front-panel controls: MENU, EXEC, MEMORY IN, PRINT, SOURCE/MEMORY, MEMORY PAGE, STOP, directional navigation keys
• Print mechanism: Dye-sublimation ribbon cartridge (Sony UPC-1010DP installed)
• Certifications: UL Listed 13C1 ITE, CSA
• Country of manufacture: Japan
• Known defect: Right-side hinge on ribbon access flip-down door is broken
• Includes: Sony UPC-1010DP color ribbon cartridge (installed)

Applications

The Sony UP-1200A Mavigraph was introduced in the early-to-mid 1990s as a professional-grade video frame printer for broadcast, video production, and medical imaging environments. In broadcast and production settings it allows operators to print still frames directly from a video signal — from a camera, VCR, laserdisc, or DVD player — without needing a separate computer. Its S-Video and BNC composite inputs make it compatible with a wide range of consumer and professional video sources from the era. In clinical and medical environments, the Mavigraph line was commonly paired with ultrasound machines, endoscopy systems, and other diagnostic video sources to produce printed reference images for patient records. The dye-sublimation print technology delivers photographic-quality color output compared to the thermal or inkjet alternatives of the same period. Replacement UPC-1010DP ribbon cartridges remain available from specialty AV and medical imaging supply sources.
